SmallRig Product Instruction Manual

1. Introduzione

This manual provides detailed instructions for the safe and efficient use of your SmallRig LP-E6NH 4-Slot Charger, SmallRig 145W USB-C Charger, and SmallRig 240W USB C to C Cable. Please read this manual thoroughly before operation and retain it for future reference.

Figura 1: Oltreview of the SmallRig LP-E6NH 4-Slot Charger, 145W USB-C Charger, and 240W USB C to C Cable.

2. Informazioni sulla sicurezza

Per garantire un funzionamento sicuro ed evitare danni, osservare le seguenti precauzioni:

• Do not expose the devices to water, moisture, or extreme temperatures.
• Use only compatible batteries and cables as specified.
• Evitare di far cadere o di sottoporre i dispositivi a forti urti.
• Do not attempt to disassemble or modify the devices. Refer all servicing to qualified personnel.
• Garantire un'adeguata ventilazione durante la ricarica per evitare il surriscaldamento.
• Tenere fuori dalla portata dei bambini.

3. Prodotto finitoview

3.1 SmallRig LP-E6NH 4-Slot Charger

This charger is designed to simultaneously charge up to four LP-E6NH batteries. It features a 60W USB-C input for efficient power delivery and includes built-in safety protections.

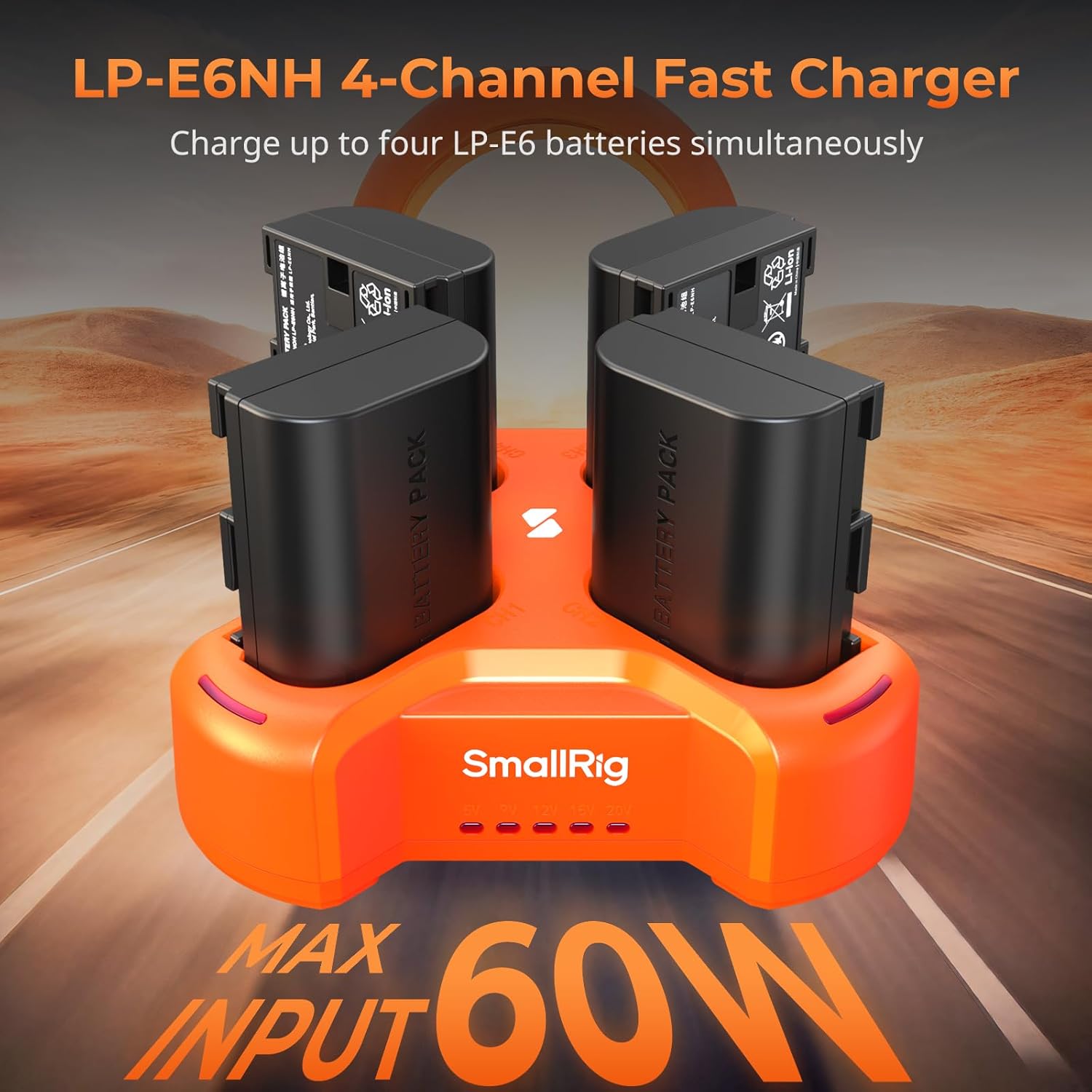

Figure 2: SmallRig LP-E6NH 4-Channel Fast Charger with batteries.

Caratteristiche principali:

• 4-Channel Charging: Charges four LP-E6NH batteries concurrently.
• Ricarica rapida: Achieves full charge for 2040mAh batteries in approximately 4.5 hours with a 60W USB-C input.
• Protezione di sicurezza: Equipped with short-circuit and overcurrent protection for each port.
• Design compatto: Lightweight and portable for travel and daily use.

Figure 3: The compact and lightweight design of the 4-slot charger.

Indicatori LED: The charger features smart LED indicators to display charging status and voltage informazioni.

Figure 4: Smart LED Indicators on the 4-slot charger.

3.2 SmallRig 145W USB-C Charger

This powerful GaN charger provides a total output of 145W across four USB-C ports, supporting PD3.1 fast charging for a wide range of devices.

Figure 5: Multi-device charging capability of the 145W charger.

Configurazione della porta:

• USB-C1 / C2: Up to 140W maximum output each.
• USB-C3 / C4: Up to 45W maximum output each.
• Uscita totale: Potenza: 145 W.

Figure 6: Port specifications of the 145W USB-C Charger.

This charger is suitable for high-power devices such as V mount batteries, rechargeable camera batteries, NP-F batteries, smartphones, and laptops, significantly reducing charging downtime.

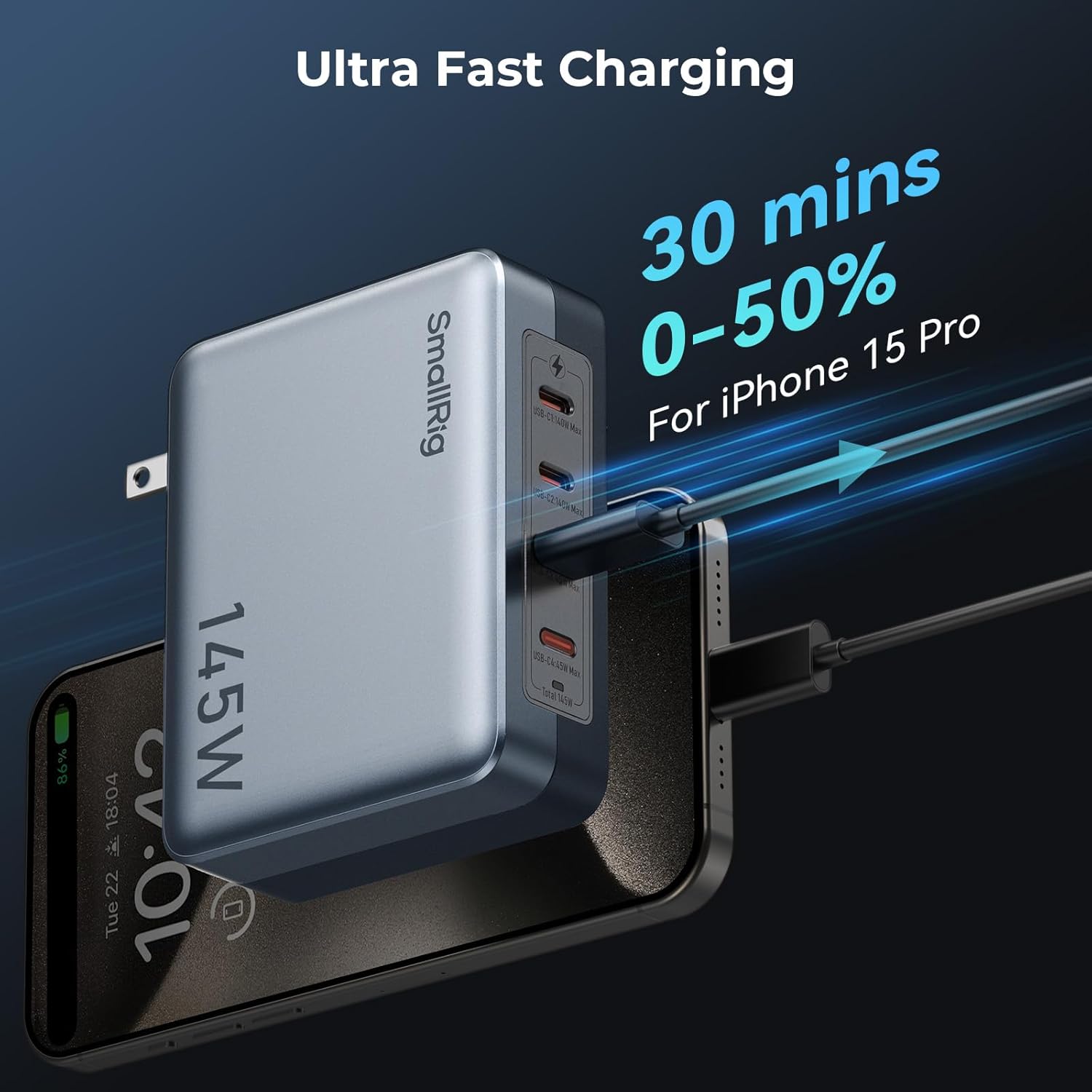

Figura 7: Esample of rapid charging with the 145W USB-C Charger.

3.3 SmallRig 240W USB C to C Cable

This high-performance USB-C to USB-C cable supports the PD 3.1 protocol, enabling ultra-fast charging for compatible devices.

Figure 8: SmallRig 240W USB C to C Cable.

Caratteristiche:

• Erogazione di potenza da 240 W: Supports high-power charging for devices like laptops and smartphones.
• Durata: Constructed with metal connectors and braided wire for enhanced longevity.
• Nota: This cable does not support screen mirroring.

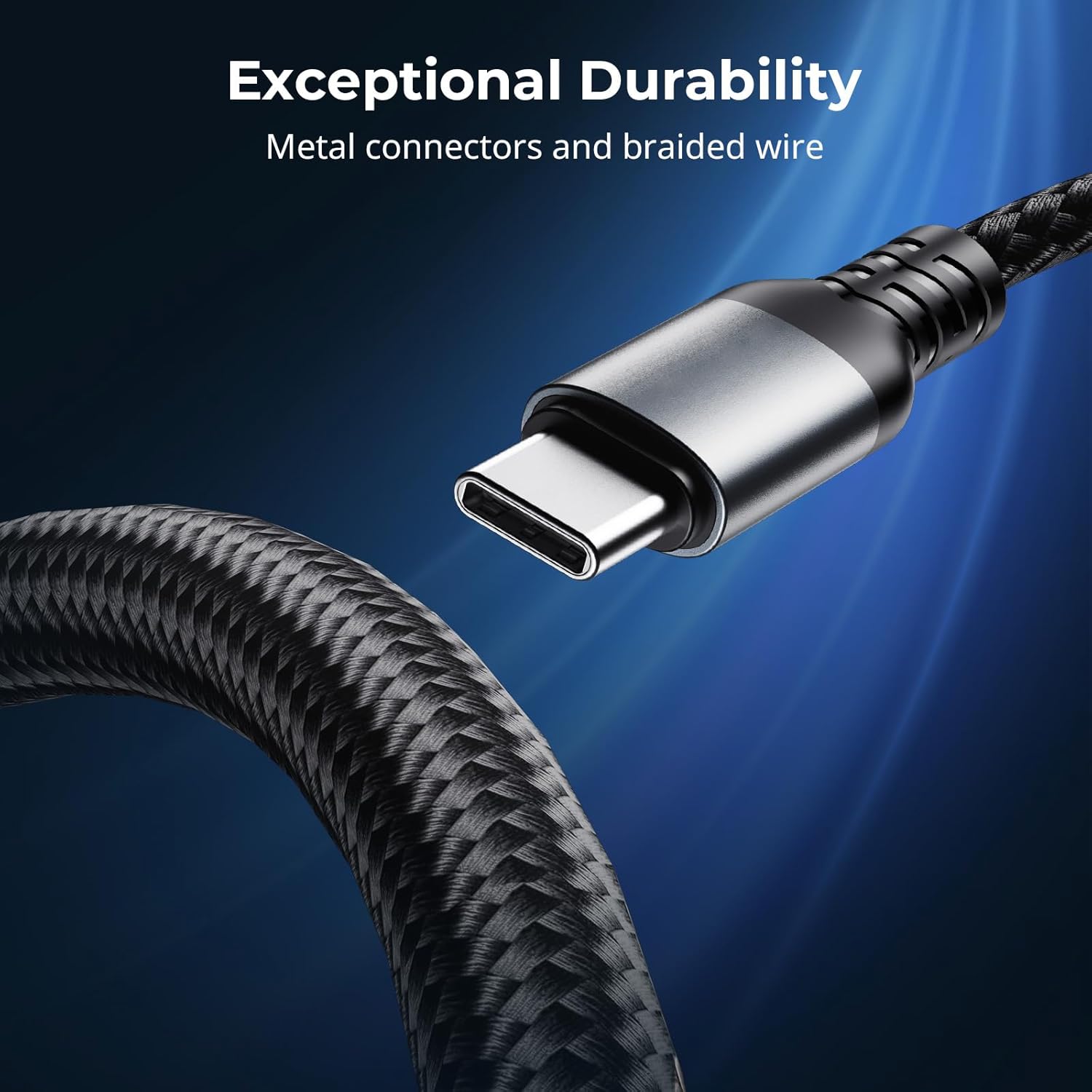

Figure 9: Exceptional durability of the 240W USB C to C Cable.

4. Impostazione

4.1 Setting up the LP-E6NH 4-Slot Charger

1. Connect the SmallRig LP-E6NH 4-Slot Charger to a power source using a USB-C cable. For optimal performance, use a USB-C adapter with a power output of 60W or above.
2. If using a USB-A adapter, ensure it supports the QC 12V protocol; otherwise, the charger may not function correctly.
3. Insert up to four compatible LP-E6NH batteries into the designated slots. Ensure the batteries are correctly oriented.
4. The LED indicators will illuminate to show the charging status of each battery.

4.2 Setting up the 145W USB-C Charger

1. Plug the SmallRig 145W USB-C Charger into a standard wall outlet.
2. Connect your devices (e.g., laptops, smartphones, camera batteries) to any of the four USB-C ports using appropriate USB-C cables.
3. For devices requiring high power, utilize USB-C1 or USB-C2 ports for up to 140W output.
4. For other devices, USB-C3 or USB-C4 ports provide up to 45W output.

4.3 Using the 240W USB C to C Cable

1. Connect one end of the 240W USB C to C Cable to a compatible power source (e.g., the SmallRig 145W USB-C Charger or another PD 3.1 compliant charger).
2. Connect the other end of the cable to your device (e.g., laptop, smartphone) that supports USB-C power delivery.
3. Ensure both the power source and the device support the required power delivery for optimal charging speed.

5. Istruzioni per l'uso

5.1 Charging with the LP-E6NH 4-Slot Charger

Once batteries are inserted and the charger is connected to power, the charging process begins automatically. The LED indicators provide real-time feedback:

• Rosso pieno: Ricarica in corso.
• Verde pieno: Ricarica completata.
• Rosso lampeggiante: Error (e.g., incompatible battery, short circuit). Remove the battery and reinsert. If the issue persists, discontinue use.

il volumetage indicators (5V / 9V / 12V / 20V) will light up to show the input voltage being supplied to the charger.

5.2 Charging with the 145W USB-C Charger

The 145W USB-C Charger automatically detects the connected device's power requirements and delivers the optimal charging current. No manual configuration is required.

• Connect your device to any available USB-C port.
• For maximum efficiency, distribute high-power devices across USB-C1/C2 and lower-power devices across USB-C3/C4.
• The charger's internal management system will balance power delivery across all active ports.

6. Manutenzione

• Pulizia: Use a soft, dry cloth to clean the surfaces of the charger and cable. Do not use liquid cleaners or solvents.
• Magazzinaggio: Quando non vengono utilizzati, conservare i dispositivi in ​​un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Cura del cavo: Avoid sharp bends or kinks in the 240W USB C to C Cable to prevent internal damage. Do not pull the cable by the cord; always grasp the connector.
• Ispezione: Periodically inspect the chargers and cable for any signs of damage, such as frayed wires, cracked casings, or bent connectors. Discontinue use if damage is found.

7. Risoluzione Dei Problemi

8. Specifiche

8.1 SmallRig LP-E6NH 4-Slot Charger

• Ingresso: USB-C, 60W (recommended)
• Batterie compatibili: LP-E6NH
• Tempo di ricarica: Approx. 4.5 hours for 4x 2040mAh batteries (with 60W input)
• Protezione: Short-circuit, Overcurrent

8.2 SmallRig 145W USB-C Charger

• Potenza totale in uscita: 145W
• Porte: 4 x USB-C
• USB-C1 / C2 Output: Max 140W each (PD3.1)
• USB-C3 / C4 Output: Max 45W each (PD3.1)
• Tecnologia: GaN

8.3 SmallRig 240W USB C to C Cable

• Potenza erogata: Up to 240W (PD 3.1 protocol)
• Connettori: Da USB-C a USB-C
• Materiale: Metal connectors, braided wire
• Uscita video: Non supportato

9. Informazioni sulla garanzia

I prodotti SmallRig sono generalmente coperti da una garanzia limitata. Consultare la scheda di garanzia inclusa con il prodotto o visitare il sito ufficiale SmallRig. webPer i termini e le condizioni di garanzia dettagliati, consultare il sito. Conservare la prova d'acquisto per eventuali reclami in garanzia.

10. Assistenza clienti

For technical support, troubleshooting assistance, or product inquiries, please contact SmallRig customer service through their official websito o le informazioni di contatto fornite sulla confezione del prodotto.

SmallRig Ufficiale Websito: www.smallrig.com
