Prodotto finitoview

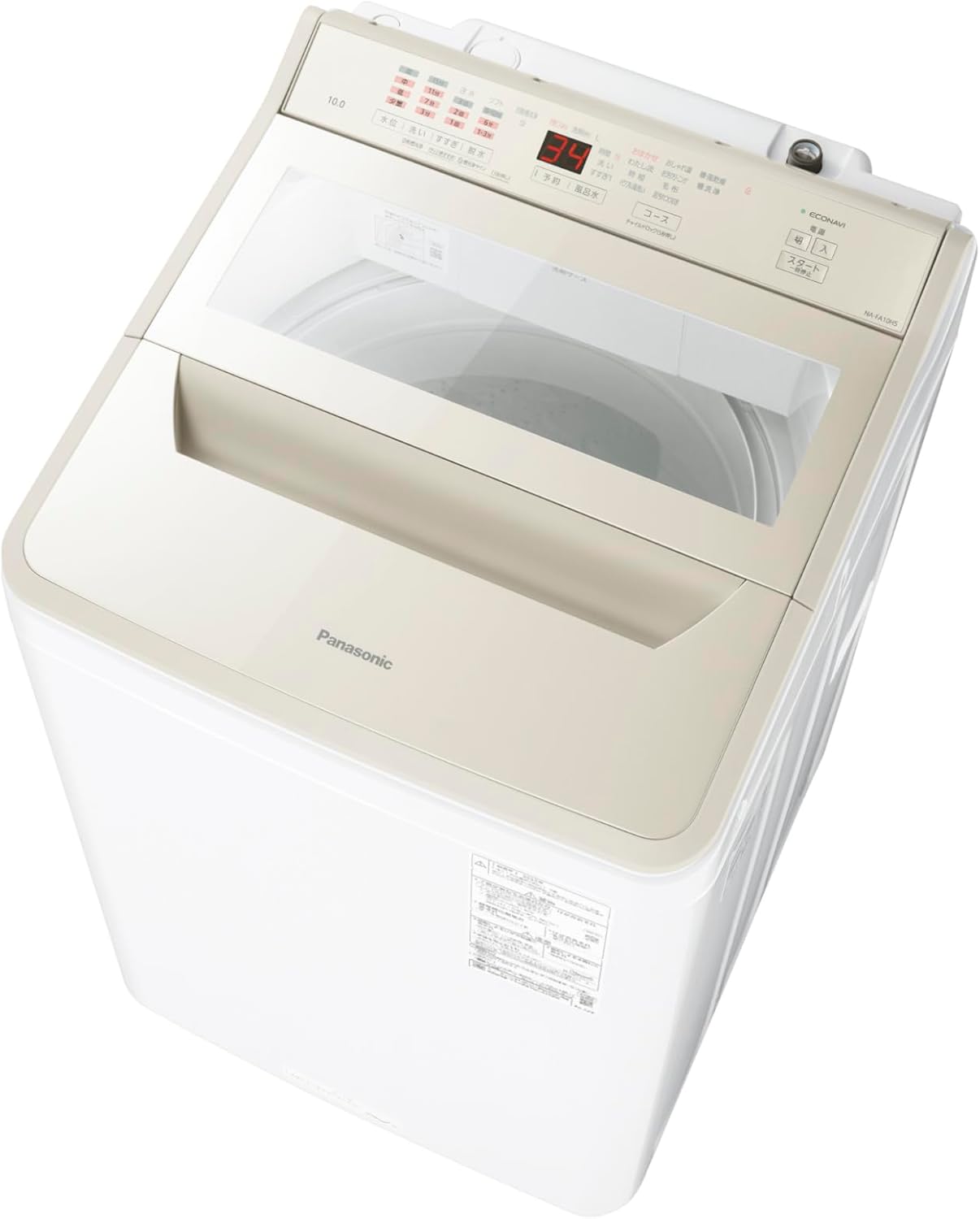

Immagine: Frontale view of the Panasonic NA-FA10H5-N fully automatic washing machine. This image displays the appliance's overall design and control panel.
This manual provides detailed instructions for the safe and efficient use of your Panasonic NA-FA10H5-N fully automatic washing machine. Please read this manual thoroughly before operating the appliance and keep it for future reference. This washing machine features a 10kg capacity, "Sugo-ochi Bubble Wash" for effective stain removal, and "Powerful 3D Water Flow" for thorough cleaning. It also includes an "Auto Course" for optimized washing times and energy efficiency.
Informazioni importanti sulla sicurezza
To prevent injury to yourself and others, and to avoid property damage, please observe the following safety precautions. Incorrect operation due to ignoring instructions may cause harm or damage.
- Always connect the washing machine to a grounded power outlet.
- Non permettere ai bambini di usare o giocare con la lavatrice.
- Do not wash items that are waterproof or water-repellent, as this may cause abnormal vibrations.
- Ensure the water supply hose is securely connected to prevent leaks.
- Scollegare l'apparecchio prima di pulirlo o di effettuare qualsiasi intervento di manutenzione.
- Non utilizzare liquidi infiammabili vicino alla lavatrice.
Configurazione e installazione
Proper installation is crucial for the performance and safety of your washing machine. Please follow these guidelines carefully.
Requisiti di spazio
Ensure sufficient space around the washing machine for proper ventilation and operation. A minimum of 10 cm width is required for installation, especially in areas like entrances, doorways, and stairs. For the washing machine itself, allow 1 cm clearance on the left/right side (wall side) and 1 cm clearance at the back. When the lid is fully open, ensure 10-15 cm of space above the machine.
Image: Installation dimension requirements. This diagram illustrates the necessary clearances for width, depth, and height when installing the washing machine, including considerations for doorways, stairs, and the space needed when the top lid is fully opened.
Dimensioni del prodotto
The overall dimensions of the washing machine are approximately 59.9 cm (width) x 62.8 cm (depth) x 102.4 cm (height).
Image: Detailed dimension diagram for model NA-FA10H5. This technical drawing provides precise measurements for the front and side views of the washing machine, indicating width, depth, and height in millimeters.
Approvvigionamento idrico e drenaggio
- Connect the water supply hose securely to the water faucet and the washing machine's inlet.
- Ensure the drainage hose is properly positioned to allow water to drain freely. The drainage hose connection should be at least 9 cm above the floor.
- Dopo aver collegato i tubi, verificare che non vi siano perdite.
Istruzioni per l'uso
This section explains how to operate your washing machine for optimal cleaning results.
Caricamento del bucato

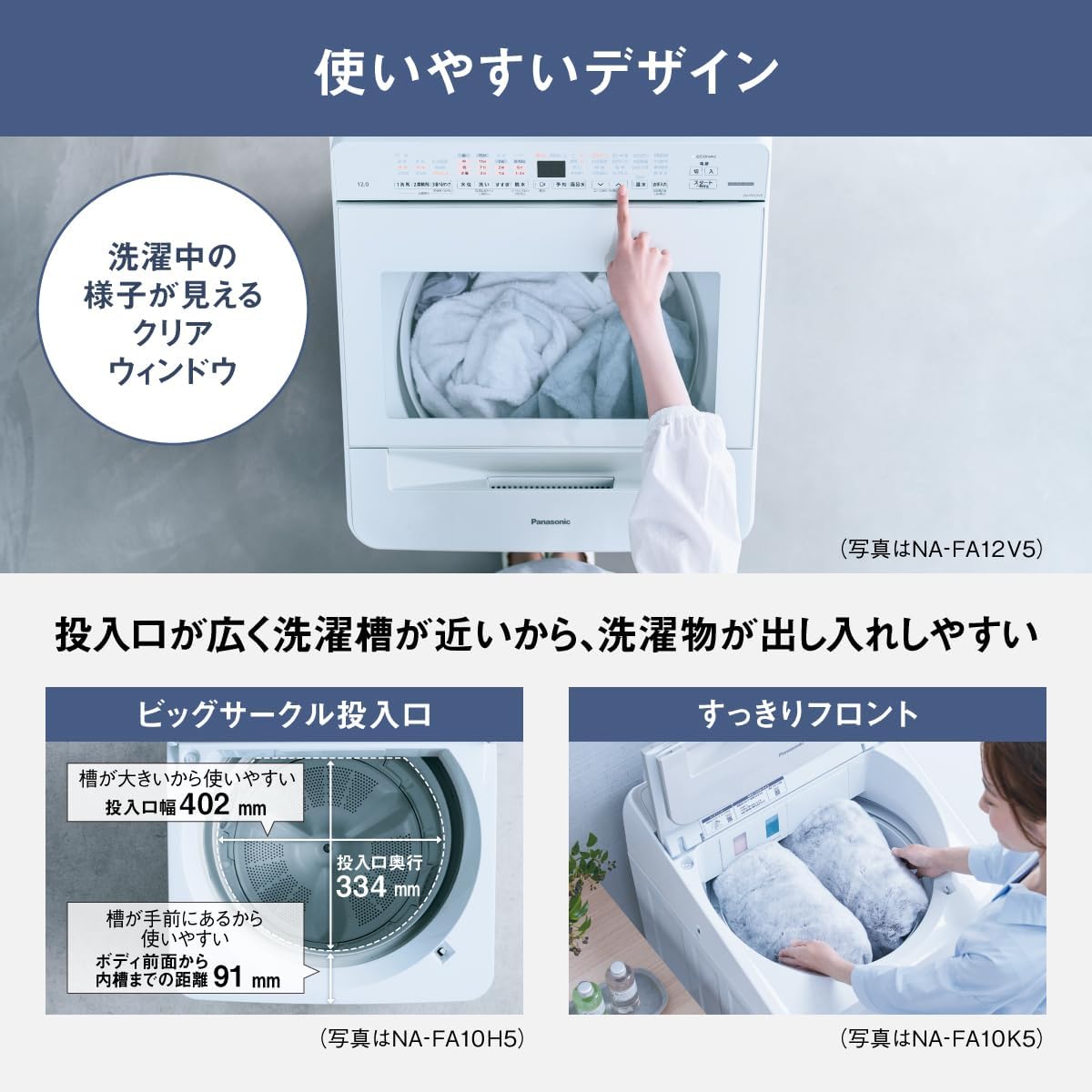

The washing machine features a "Big Circle Input Port" and a "Sleek Front" design, making it easy to load and unload laundry. The distance from the body front to the inner tub is 91 mm, and the opening depth is 334 mm, with an opening width of 402 mm.
Image: Easy-to-use design. This image highlights the clear window allowing users to see the washing process and the wide, circular opening that simplifies loading and unloading laundry.
Washing Cycles and Features
The NA-FA10H5-N model offers various washing features to ensure thorough cleaning and convenience.
- Sugo-ochi Bubble Wash & Powerful 3D Water Flow: These technologies work together to effectively remove stubborn dirt and stains using fine foam and strong water currents.
- Auto Course (Omakase Course): This course optimizes washing time and energy consumption. Compared to previous models (NA-FA10H3), the NA-FA10H5-N's Auto Course reduces washing time from approximately 37 minutes to 34 minutes, water usage from 110L to 103L, and power consumption from 60 Wh to 50 Wh.
- Short Course: For lightly soiled items or smaller loads, the short course can clean laundry in approximately 23 minutes, including two rinses. This is suitable for about 1.5 kg of laundry per person per day.
Image: Stain removal effectiveness. This image shows before-and-after comparisons of clothes with mud and food stains, illustrating how the "Sugo-ochi Bubble Wash" and "Powerful 3D Water Flow" effectively clean them.

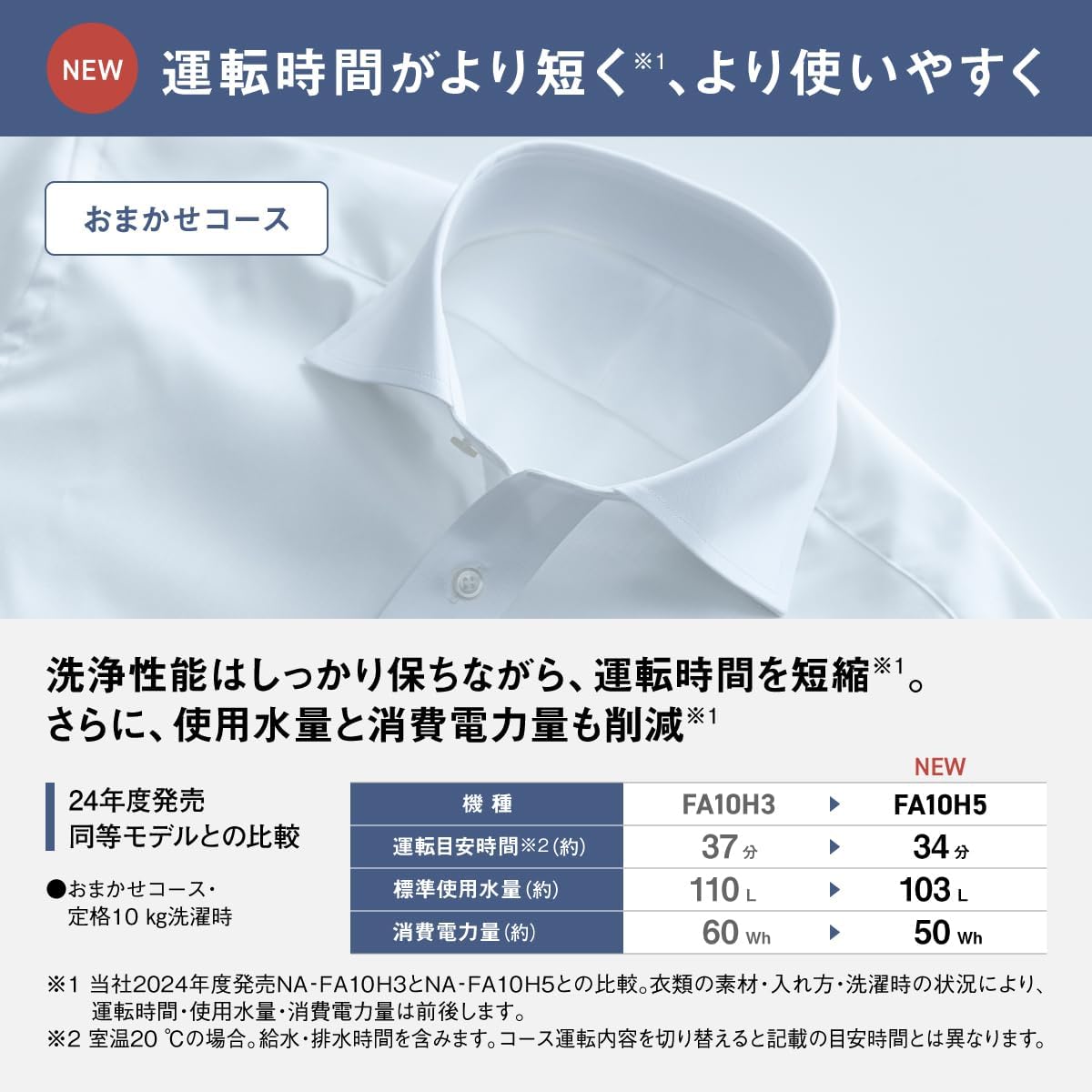

Image: Auto Course comparison. This table highlights the reduced operating time, water usage, and power consumption of the "Auto Course" in the NA-FA10H5 model compared to the NA-FA10H3 model, demonstrating improved efficiency.
Image: Short Course for daily laundry. This image depicts a typical load of laundry for three people and shows the "Short Course" effectively cleaning food stains, emphasizing its convenience for daily use.
Manutenzione
Regular maintenance ensures the longevity and optimal performance of your washing machine. Keep the washing tub clean to prevent mold and odors.
Pulizia della vasca
- Automatic Tub Cleaning: This feature helps prevent black mold growth in the tub by using rinse water without additional water.
- Tub Wash (1-hour course): Use this course once a month to thoroughly clean the tub and prevent black mold.
- Corso di essiccazione in vasca: Dries the inside of the tub to prevent mold growth.
- Tub Clean Tank: Helps clean the outer tub to prevent black mold.
Image: Tub cleaning methods. This diagram explains different ways to keep the washing machine tub clean, including automatic cleaning, a dedicated 1-hour wash course, a drying course, and the use of a tub clean tank to prevent mold.
Easy Maintenance Features
- Flat Face Design: The smooth, flat surface makes the washing machine easy to wipe clean.
- Easy-to-Remove Lint Filter (Raku Poi Filter): This large-capacity filter (approx. 160 mL) is designed for easy removal and disposal of lint without getting your hands dirty. It also features antibacterial processing.
Image: Easy maintenance features. This image highlights the washing machine's flat design for effortless cleaning and the user-friendly "Raku Poi Filter" which allows for hygienic and simple disposal of collected lint.
Risoluzione dei problemi
If you encounter any issues with your washing machine, please refer to the following common problems and solutions before contacting service.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La macchina non si avvia | Power cord unplugged, lid not closed properly, water supply off. | Check power connection, ensure lid is fully closed, open water faucet. |
| Nessuna fornitura d'acqua | Water faucet closed, water supply hose kinked, water filter clogged. | Open water faucet, straighten hose, clean water inlet filter. |
| L'acqua non drena | Drain hose kinked or clogged, drain pump filter clogged. | Straighten or clear drain hose, clean drain pump filter. |
| Vibrazione o rumore eccessivi | Macchina non in piano, biancheria distribuita in modo non uniforme, bulloni di trasporto non rimossi. | Adjust leveling feet, redistribute laundry, remove transport bolts (if newly installed). |
| Risultati di lavaggio scadenti | Overloading, insufficient detergent, incorrect wash cycle. | Reduce load size, use appropriate amount of detergent, select suitable wash cycle. |
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Panasonic |
| Numero di modello | NA-FA10H5-N |
| Capacità | 10 kg |
| Caratteristiche speciali | Sugo-ochi Bubble Wash, Powerful 3D Water Flow, Auto Course |
| Colore | ChampAgnello |
| Tipo di pannello di controllo | Tocco |
| Posizione della porta | Superiore |
| Dimensioni del prodotto (P x L x A) | Dimensioni: 62.8 cm x 59.9 cm x 102.4 cm |
| Peso del prodotto | 45 chilogrammi |
| Prima data disponibile | 2025/05/15 |
Model Comparison (NA-FA10H5-N highlighted)
Image: Model comparison chart. This table provides a side-by-side comparison of different Panasonic washing machine models, detailing their washing/dehydration capacity, ease-of-use features (like automatic detergent input), washing functions (like bubble wash and auto course), and cleaning functions (like automatic tub cleaning).
Garanzia e supporto
Per informazioni sulla garanzia, consultare la scheda di garanzia inclusa con il prodotto. Per supporto tecnico o richieste di assistenza, contattare il servizio clienti Panasonic. I recapiti sono generalmente reperibili sul sito ufficiale Panasonic. websito o nella confezione del prodotto.
Please have your model number (NA-FA10H5-N) and purchase date ready when contacting support.
