Domi 8'x8' Lean-to Gazebo Hardtop Instruction Manual

Avvertenze di sicurezza

Important safety warnings related to proper installation, assembly, and use. Always follow local building codes and safety regulations.

• Assicurarsi che tutti i componenti siano fissati saldamente durante il montaggio.
• Non salire sul tetto del gazebo.
• Verify the stability of the structure, especially in windy conditions.
• Durante l'installazione utilizzare utensili e dispositivi di protezione adeguati.

Prodotto finitoview

The Domi 8'x8' Lean-to Gazebo Hardtop is a durable, wall-mounted outdoor structure designed to provide shade and protection. It features a galvanized steel roof and robust construction for all-weather performance.

Caratteristiche principali

• Durata Premium: Constructed with dual-protected galvanized & powder-coated steel (3.94" columns + 5 reinforced 5.2" beams) to resist rust, UV damage, and withstand 60 mph winds/22 lbs/sq.ft snow.
• Prestazioni per tutte le stagioni: 2024-upgraded gutter system delivers leak-proof drainage and prevents ice/leaf clogs, while the sloped galvanized roof sheds rain/snow instantly.
• Spacious & Stable: Generous 95.52''x93.96'' coverage (92"H) creates a sturdy shaded zone, with a wall-mounted design saving space.
• Seamless Gazebo Expansion: Can be connected with other same-width gazebos using specialized connectors for a larger shaded area.
• Hassle-Free Solution: Pre-engineered for easy installation, offering permanent protection for decks, patios, or hot tub areas.

Dimensioni del prodotto

The 8'x8' Lean-to Gazebo provides ample coverage. Refer to the diagram for detailed measurements.

Image description: A detailed diagram showing the dimensions of the 8'x8' wall-mounted hardtop gazebo, including length, width, and height measurements.

Componenti e struttura

The gazebo is built with strong, weather-resistant materials to ensure longevity and stability.

Costruzione durevole

Descrizione dell'immagine: Primo piano view highlighting the five strong beams designed for 60 MPH wind resistance and 22 lbs/sq.ft snow pressure, and four thick 3.94-inch pillars, which are twice the thickness of standard 2.0-inch pillars.

Image description: Cross-section view of the substantial steel pillars, showing the weather-resistant alloy core, rustproof galvanized layer, and powder-coating for enhanced durability.

Image description: Four images showing details of the sturdy construction: a triangle structure for support, a reinforced roof, pre-drilled wall studs for mounting, and pre-drilled base holes for securing the pillars.

Roof and Drainage System

The galvanized steel roof is designed for efficient water and snow shedding, featuring an integrated gutter system.

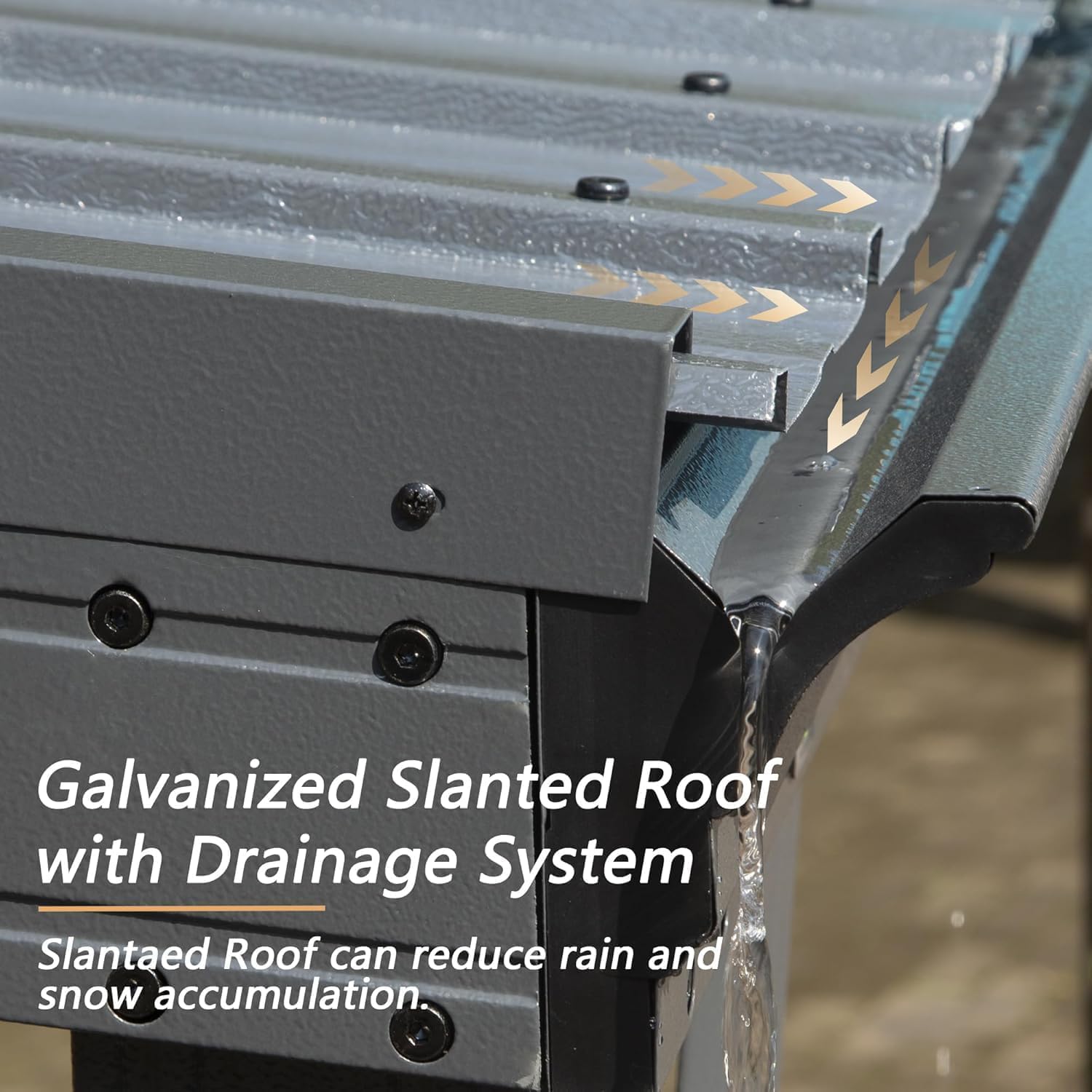

Image description: A close-up of the galvanized slanted roof with an integrated drainage system, illustrating how water is channeled away to prevent accumulation.

Istruzioni di montaggio

This gazebo is pre-engineered for straightforward assembly. It is recommended to have at least two people for installation.

Prima di iniziare

• Unpack all boxes and identify all parts against the parts list (refer to your product packaging for the complete list).
• Ensure you have the necessary tools, including a strong drill bit appropriate for the screws provided to avoid stripping.
• Choose a suitable location for installation, considering whether it will be wall-mounted or freestanding.
• Note that the product may arrive in multiple packages on different days. Ensure all packages are received before starting assembly.

Fasi dell'Assemblea Generale

1. Assemblare la struttura del telaio principale, assicurandosi che tutti i collegamenti siano saldi.
2. Attach the roof panels to the frame. Pay attention to the protective plastic film on roof panels, which should be carefully removed.
3. Install the gutter system along the edges of the roof.
4. Secure the gazebo to your chosen surface (deck, patio, or wall) using the provided screws and appropriate anchors.
5. If wall-mounting, utilize the provided brackets to attach the gazebo securely to your home.

Opzioni di espansione

For larger shaded areas, multiple same-width gazebos can be connected using specialized connector kits, available separately.

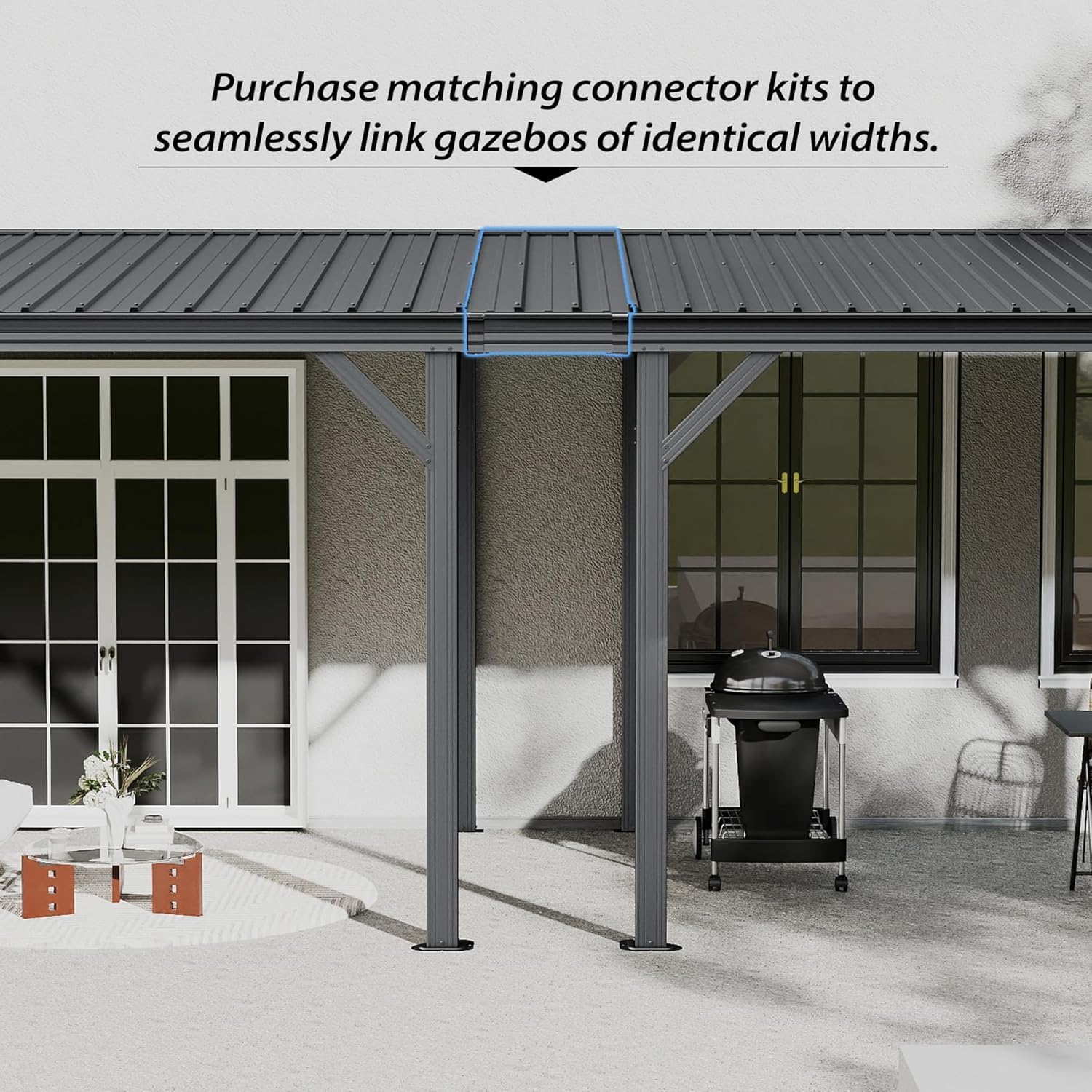

Image description: An image showing how matching connector kits can be used to seamlessly link gazebos of identical widths, creating an extended covered space.

Image description: A visual representation of multiple gazebos linked together to customize and extend the shaded area, demonstrating the flexibility of the design.

Manutenzione

• Controllare regolarmente tutti i bulloni e i collegamenti per assicurarsi che siano sempre ben serrati.
• Clean the roof and gutters periodically to prevent debris buildup and ensure proper drainage.
• The powder-coated steel frame is designed for rust resistance; however, occasional cleaning with mild soap and water is recommended to maintain its appearance.
• For long-term durability, especially in harsh weather conditions, consider applying a protective sealant to exposed screws and joints.

Risoluzione dei problemi

Leaks from the Roof

• Check for proper installation of roof panels and ensure all screws are tightened.
• Verify that the gutter system is clear of debris and functioning correctly.
• Inspect for any gaps or unsealed areas where water might penetrate. Apply sealant if necessary.

Instabilità / Oscillazione

• Ensure all support posts are securely anchored to the ground or deck.
• Check that all frame connections are fully tightened.
• Confirm that the gazebo is installed on a level surface.

Specifiche

Garanzia e supporto

The Domi 8'x8' Lean-to Gazebo Hardtop comes with a 3-year protection plan. For any support needs or warranty claims, please contact domi outdoor living customer service.

Additional protection plans may be available for purchase. Refer to your purchase documentation for details.
