Manuale utente lavatrice Indesit IM 1072 MY TIME IT

1. Informazioni sulla sicurezza

Please read these instructions carefully before using the appliance and retain them for future reference. This manual provides important information regarding the safe installation, use, and maintenance of your washing machine.

• Assicurarsi che l'apparecchio sia adeguatamente messo a terra.
• Non permettere ai bambini di utilizzare o giocare con l'apparecchio.
• Non forzare mai l'apertura della porta.
• Unplug the appliance before any cleaning or maintenance.
• Non installare l'apparecchio in luoghi esposti a temperature o umidità estreme.

2. Prodotto finitoview

The Indesit IM 1072 MY TIME IT is a front-loading washing machine designed for domestic use, offering efficient and rapid washing cycles. It features a 10 kg drum capacity and a maximum spin speed of 1200 rpm.

Immagine: Frontale view of the Indesit IM 1072 MY TIME IT Washing Machine, showcasincon la sua finitura bianca e lo sportello di carico centrale.

Caratteristiche principali:

• Capacità del tamburo: 10 kg for large loads.
• Velocità di rotazione: Up to 1200 rpm for effective water extraction.
• Cicli rapidi: Includes 3 full-load 59-minute cycles, a 14-minute Express cycle, and a 28-minute Cotton program.
• Funzione vapore: Helps reduce wrinkles and soften fabrics.
• Anti-Stain Program: Targets stubborn stains for thorough cleaning.
• AcquaFlex Technology: Optimizes water consumption for environmental efficiency.
• Efficienza energetica: Rated A 10%.

3. Configurazione e installazione

Proper installation is crucial for the safe and efficient operation of your washing machine. Refer to the detailed installation guide provided with the appliance for specific instructions.

Image: Indesit washing machine integrated into a modern laundry room setup, demonstrating typical placement.

3.1 Posizionamento

• Posizionare la lavatrice su una superficie piana e stabile.
• Garantire un'adeguata ventilazione attorno all'apparecchio.
• Maintain a minimum distance from walls or furniture as specified in the full manual.

3.2 Collegamento idrico

• Collegare il tubo di ingresso dell'acqua a un rubinetto dell'acqua fredda con filettatura da 3/4".
• Assicurarsi che tutti i collegamenti siano ben serrati per evitare perdite.

3.3 Drenaggio

• Position the drain hose correctly into a standpipe or over the edge of a sink, ensuring it is securely fastened.
• The drain hose should not be kinked or obstructed.

3.4 Collegamento elettrico

• Plug the appliance into a properly earthed electrical socket.
• Non utilizzare prolunghe o adattatori multipli.

3.5 Livellamento

• Adjust the appliance's feet to ensure it is perfectly level. This prevents excessive vibration and noise during operation.

4. Istruzioni per l'uso

4.1 Pannello di controllo Sopraview

Immagine: dettagliata view of the Indesit washing machine's control panel, showing the program selector dial, display, and function buttons.

• Selettore di programma: Used to choose the desired washing program.
• Display: Shows cycle time, temperature, spin speed, and other relevant information.
• Pulsanti funzione: Activate special options like Steam, Anti-Stain, or AcquaFlex.
• Pulsante Avvio/Pausa: Initiates or pauses the washing cycle.

4.2 Dispenser di detersivo

Image: The detergent drawer of the Indesit washing machine pulled open, showing compartments for pre-wash, main wash, and fabric softener.

The detergent dispenser has compartments for:

• Scomparto 1: Detersivo per il prelavaggio (se applicabile al programma selezionato).
• Scomparto 2: Detersivo per il lavaggio principale.
• Scomparto 3: Ammorbidente.

Add the appropriate amount of detergent and fabric softener according to the manufacturer's instructions and the load size.

4.3 Caricamento della biancheria

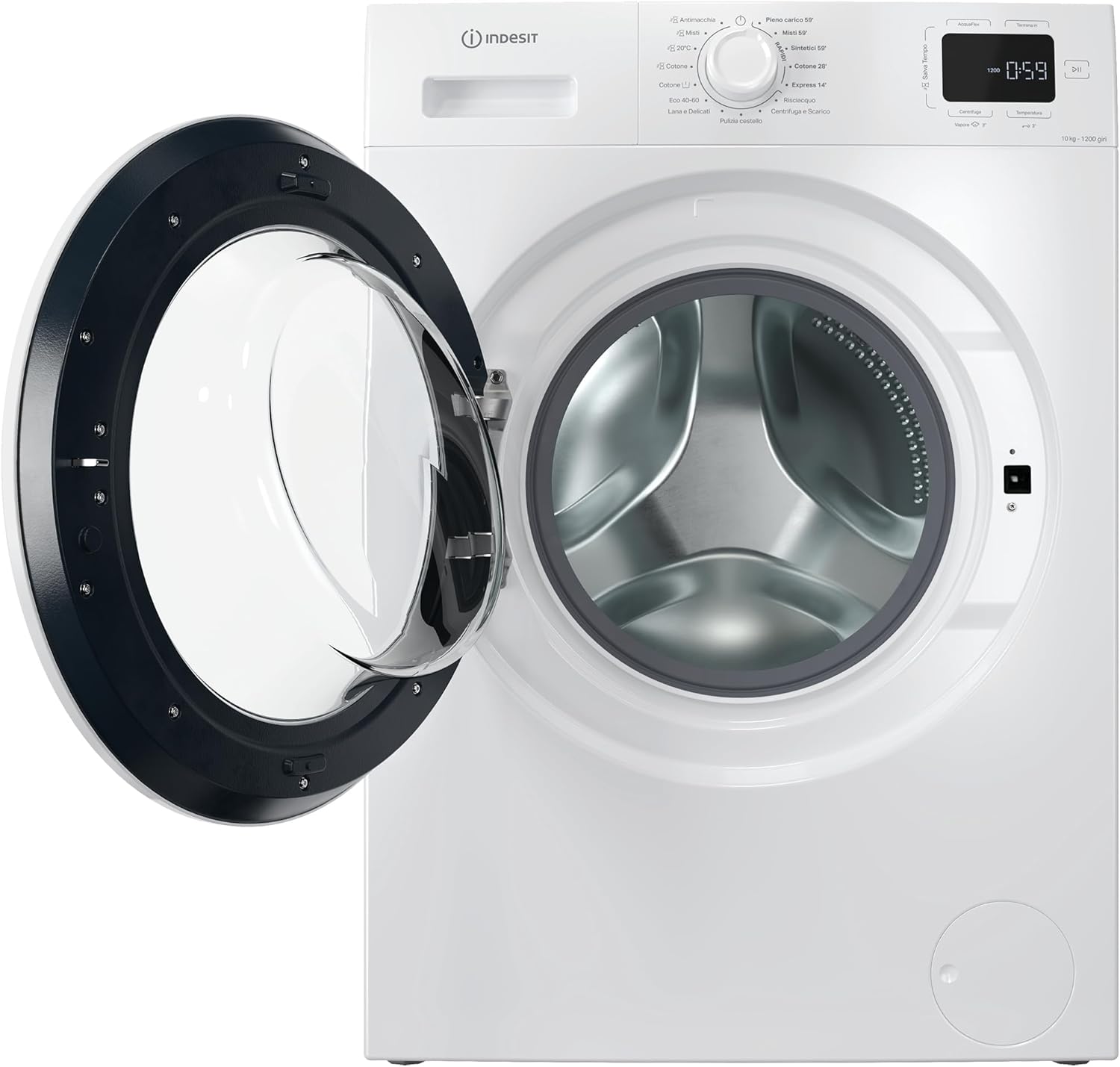

Image: The Indesit washing machine with its door open, revealing the stainless steel drum ready for loading laundry.

• Aprire l'oblò della lavatrice.
• Load laundry loosely into the drum, ensuring not to overload it.
• Chiudere bene la porta finché non scatta.

4.4 Selezione di un programma

• Turn the Program Selector Dial to choose the desired washing program based on fabric type and soil level.
• The display will show the default duration and settings for the selected program.

4.5 Customizing Settings (Optional)

• Use the temperature and spin speed buttons to adjust these settings if desired.
• Press the relevant function buttons to activate special options like Steam, Anti-Stain, or AcquaFlex.

4.6 Avvio di un ciclo

• Press the Start/Pause button to begin the washing cycle.
• Lo sportello si bloccherà e la macchina inizierà a riempirsi d'acqua.

5. Programmi di lavaggio

The Indesit IM 1072 MY TIME IT offers a variety of programs to suit different laundry needs. Refer to the control panel image for program names.

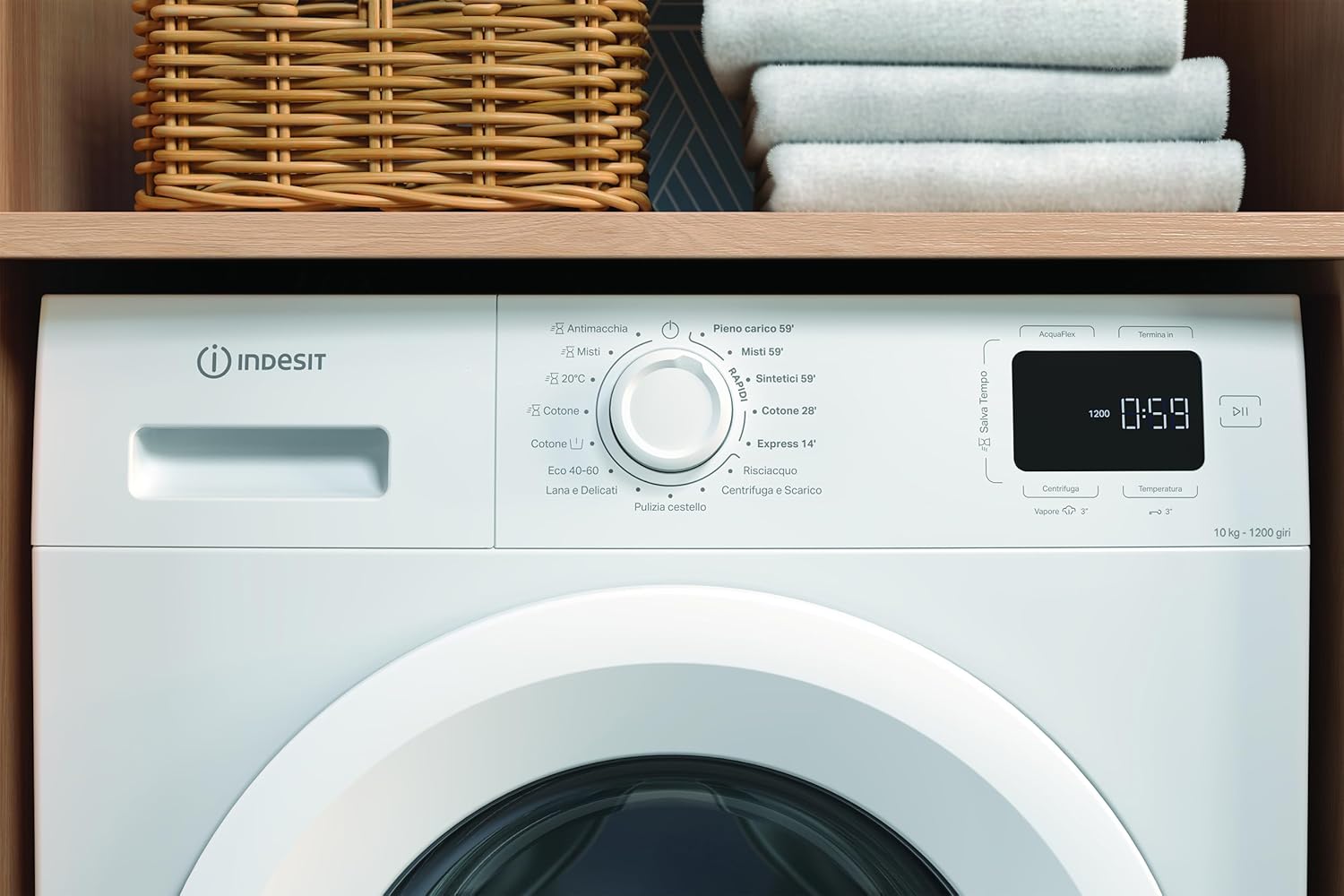

Image: Close-up of the Indesit washing machine's control panel, highlighting the program selection dial and digital display.

Rapid Cycles (MyTime):

• Pieno Carico 59' (Full Load 59 min): For large loads requiring a quick wash.
• Misti 59' (Mixed 59 min): For mixed fabrics with moderate soiling.
• Sintetici 59' (Synthetics 59 min): For synthetic garments.
• Cotone 28' (Cotton 28 min): Ideal for lightly soiled cotton items.
• Express 14' (Express 14 min): A very quick refresh cycle for small, lightly soiled loads.

Programmi standard:

• Antimacchia (Anti-Stain): Designed to tackle tough stains effectively.
• Misti (misto): For daily mixed laundry.
• 20° C: Energy-saving wash at low temperature.
• Cotone (Cotone): For durable cotton fabrics.
• Eco 40-60: Programma a risparmio energetico per cotone e capi misti lavabili a 40°C o 60°C.
• Lana e Delicati (Wool & Delicates): Gentle wash for wool and delicate items.
• Pulizia Cestello (Drum Clean): A self-cleaning cycle for the washing machine drum.

Funzioni speciali:

• Risciacquo: Un ciclo di risciacquo extra.
• Centrifuga e Scarico (Spin & Drain): Scarica l'acqua ed esegue un ciclo di centrifuga.
• Vapore (Steam): Reduces wrinkles and refreshes clothes.
• AcquaFlex: Optimizes water usage.

6. Manutenzione e cura

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali della lavatrice.

6.1 Pulizia del distributore del detersivo

• Rimuovere il cassetto del dispenser e sciacquarlo sotto l'acqua corrente.
• Clean any residue from the compartments and the housing.

6.2 Pulizia della guarnizione della porta

• Pulisci la guarnizione in gomma della porta con un pannoamp panno dopo ogni lavaggio per rimuovere lanugine e residui di detersivo.

6.3 Pulizia del filtro

• Periodically clean the drain pump filter to prevent blockages. Refer to the full manual for location and procedure.

6.4 Pulizia dell'esterno

• Pulire le superfici esterne con un panno morbido, damp panno. Non usare detergenti abrasivi o solventi.

6.5 Decalcificazione

• Use a suitable descaling product periodically, especially in hard water areas, following the product's instructions.

7. Risoluzione Dei Problemi

Se riscontri problemi con la tua lavatrice, consulta questa sezione prima di contattare il servizio clienti.

8. Specifiche

Technical details for the Indesit IM 1072 MY TIME IT Washing Machine.

9. Garanzia e supporto

Your Indesit IM 1072 MY TIME IT Washing Machine comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty duration and coverage.

For technical assistance, spare parts, or to schedule a service appointment, please contact Indesit customer support. Contact details can typically be found on the Indesit official websito o nella documentazione fornita con l'apparecchio.

When contacting support, please have your model number (IM 1072) and reference number (869991698710) readily available.
