Kit custodia in pelle SMALLRIG per fotocamera FUJIFILM X Half (modello 5218)

1. Introduzione

This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your SMALLRIG Leather Case Kit for the FUJIFILM X Half camera. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

The SMALLRIG Leather Case Kit (Model 5218) is designed to protect your FUJIFILM X Half camera while enhancing its aesthetic appeal and portability. It includes a Half Leather Case, a Full-Cover Carrying Bag, and a Woven Shoulder Strap.

2. Istruzioni per l'installazione

2.1 Contenuto della confezione

Before proceeding, please verify that all components are present:

• Full-Cover Carrying Bag x 1
• Half Leather Case x 1
• Woven Shoulder Strap x 1
• Flat Wrench x 1
• Guarnizione di tenuta x 1
• Protective Pads x 1

Figure 2.1: Included components of the SMALLRIG Leather Case Kit.

Figura 2.2: dettagliata view of package contents and product specifications.

2.2 Attaching the Half Leather Case

1. Align the Half Leather Case with the bottom of your FUJIFILM X Half camera.
2. Secure the case to the camera using the integrated 1/4"-20 screw. Use the provided Flat Wrench to tighten the screw firmly but gently.
3. Ensure the camera's battery compartment and card slot remain accessible.

Figure 2.3: The 1/4"-20 threaded hole for tripod mounting.

Figure 2.4: Accessible camera ports with the Half Leather Case.

Figure 2.5: Camera port accessibility with the Half Leather Case.

2.3 Using the Full-Cover Carrying Bag

1. Once the Half Leather Case is attached to your camera, gently slide the camera into the Full-Cover Carrying Bag.
2. Ensure the lens is properly seated within the designated area of the bag.
3. Close the magnetic flap securely to protect the camera.

Figure 2.6: The complete SMALLRIG Leather Case Kit.

Figure 2.7: Designed specifically for the FUJIFILM X Half.

2.4 Attaching the Woven Shoulder Strap

1. Thread the ends of the Woven Shoulder Strap through the O-rings on the Full-Cover Carrying Bag.
2. Secure the strap ends according to the provided instructions, ensuring they are tightly fastened.

Figure 2.8: The Woven Shoulder Strap in use.

Figure 2.9: Carrying the camera with the shoulder strap.

3. Istruzioni per l'uso

3.1 Camera Protection

The Half Leather Case and Full-Cover Carrying Bag are designed to provide all-round protection for your camera body and lens. The interior of the leather case features soft suede to prevent scratches and absorb minor impacts.

Figure 3.1: Suede interior for enhanced protection.

Figure 3.2: Safe and reliable protection.

3.2 Built-in Card Pocket

The Full-Cover Carrying Bag features a discreet card pocket inside the back panel. This allows you to store small items such as spare SD cards, ID cards, or credit cards securely while on the go.

Figure 3.3: Using the built-in card pocket.

Figure 3.4: The case doubles as a bag with layered card slots.

3.3 Montaggio su treppiede

The Half Leather Case includes a 1/4"-20 threaded hole on its bottom. This allows you to directly mount your camera to a tripod without needing to remove the Half Leather Case, saving time and effort.

Figure 3.5: Direct tripod mounting via the 1/4"-20 threaded hole.

3.4 Note di compatibilità

This case kit is designed to be compatible with various SMALLRIG accessories for the FUJIFILM X Half camera:

• Fits SMALLRIG thumb rests (ID 5222 / 5221 / 5333)
• Fits SMALLRIG UV/VND filters (ID 5214 / 5392 / 5225 / 5391)
• Fits SMALLRIG sun hoods (ID 5215 / 5393)

Nota importante:

• Not compatible with silicone and wood L-shaped grips (ID 5394 / 5224 / 5223 / 5216 / 5217 / 5332).

Figure 3.6: Compatibility information for SMALLRIG accessories.

Figure 3.7: Expand the potential with compatible accessories.

4. Manutenzione e cura

4.1 Istruzioni per la pulizia

• Leather Exterior: Wipe gently with a soft, dry cloth. For minor stains, use a slightly damp cloth and mild leather cleaner, then dry immediately. Avoid harsh chemicals or excessive moisture.
• Suede Interior: Use a soft brush or a specialized suede cleaner to remove dust and debris. Do not use water or liquid cleaners directly on suede.

4.2 Conservazione

Store the case kit in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation and color fading.

4.3 Cura generale

As the case is made from genuine leather, slight color variations may occur over time and with use. This is a natural characteristic of leather and contributes to its unique vintage estetico.

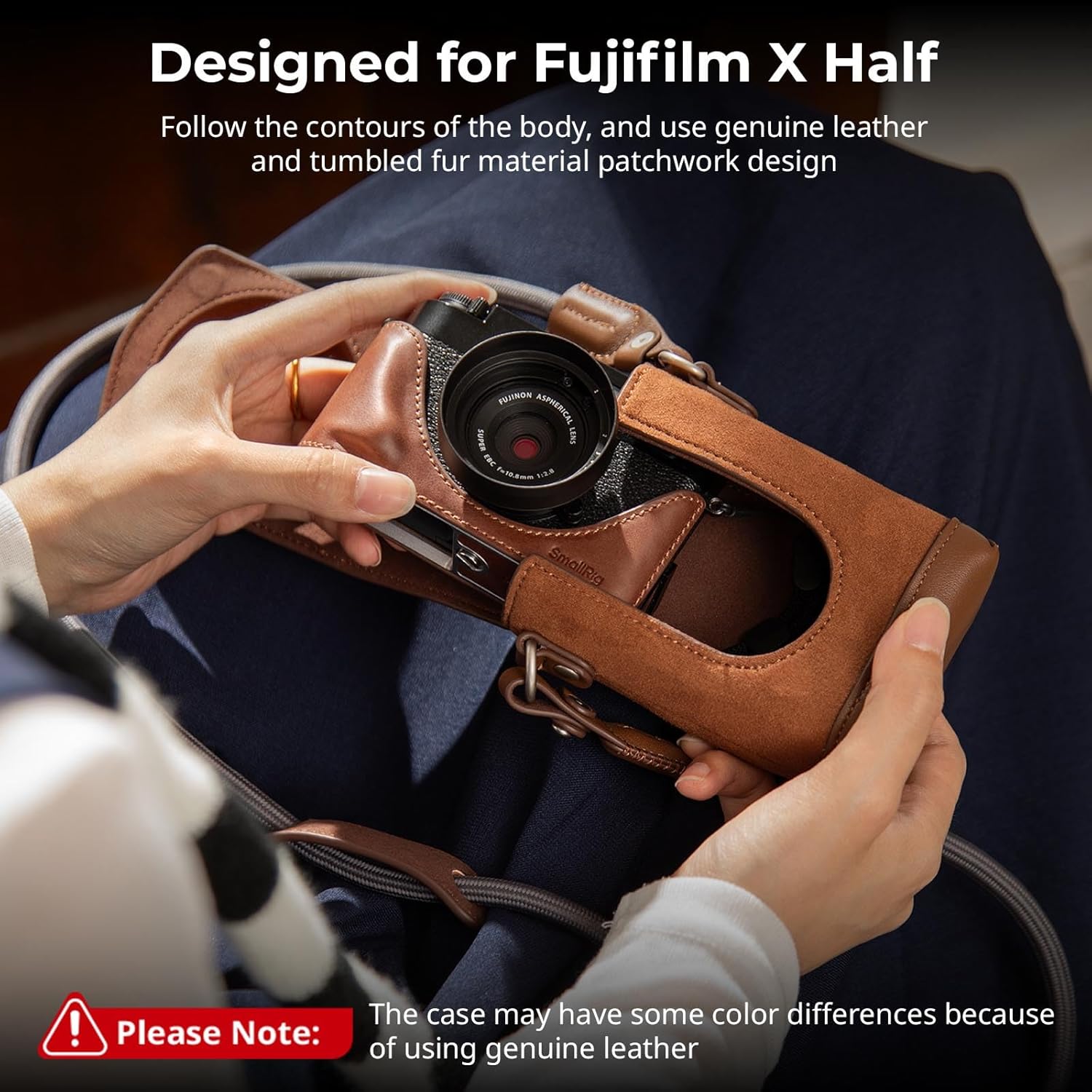

Figure 4.1: Note on genuine leather color variations.

Figure 4.2: Reminder about natural color differences in genuine leather.

5. Risoluzione Dei Problemi

5.1 Magnetic Closure Issues

If the magnetic closure of the Full-Cover Carrying Bag does not seem to hold securely, ensure that the camera is properly seated within the bag and that no obstructions are preventing the magnets from engaging fully.

5.2 Half Case Fit

If the Half Leather Case does not fit snugly, ensure the 1/4"-20 screw is tightened correctly with the Flat Wrench. Avoid over-tightening, which could damage the camera or case.

6. Specifiche del prodotto

7. Informazioni sulla garanzia

SMALLRIG products are manufactured to high-quality standards. For detailed warranty information, including terms and conditions, please refer to the official SMALLRIG website or contact customer support. Please retain your proof of purchase for warranty claims.

8. Assistenza clienti

If you have any questions, require assistance, or encounter issues not covered in this manual, please contact SMALLRIG customer support through their official websito:

Visit SMALLRIG Official Websito

Quando contatti l'assistenza, tieni a portata di mano il numero di modello del tuo prodotto (5218) e i dettagli dell'acquisto.
