Vaczon VCZ070WH 47-inch Corner Fireplace TV Stand User Manual

1. Introduzione

Thank you for choosing the Vaczon VCZ070WH 47-inch Corner Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Designed to maximize space with its corner shape, this unit accommodates TVs up to 55 inches and features an integrated 18-inch electric fireplace, along with ample storage options. Please read this manual thoroughly before use and retain it for future reference.

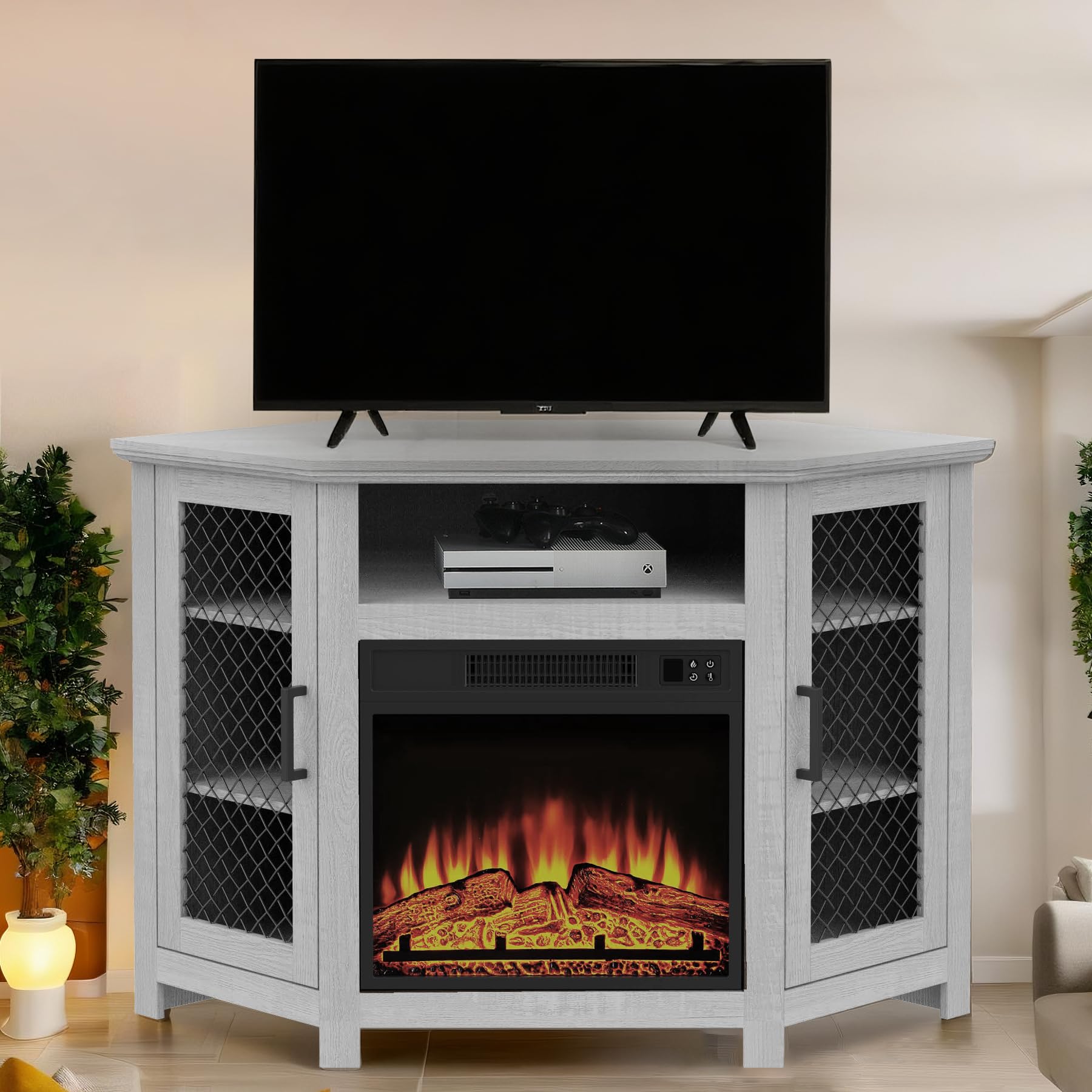

Figure 1: Vaczon 47-inch Corner Fireplace TV Stand. This image displays the assembled TV stand, highlighting its corner design and integrated electric fireplace.

2. Informazioni sulla sicurezza

Per garantire un funzionamento sicuro ed evitare danni, osservare le seguenti linee guida di sicurezza:

• Prevenzione del ribaltamento: Always secure this furniture to the wall using the provided anti-tip hardware to prevent accidental tip-over.
• Posizionamento: Do not place the unit on uneven surfaces or near high-traffic areas where it could be easily bumped. Ensure adequate clearance around the fireplace for proper ventilation.
• Sicurezza elettrica: Connect the electric fireplace to a properly grounded outlet. Do not overload electrical circuits. Keep flammable materials away from the fireplace heater outlet.
• Protezione contro il surriscaldamento: The electric fireplace is equipped with overheat protection, which automatically shuts off the unit if it reaches an unsafe temperature. If this occurs, unplug the unit, allow it to cool, and check for any obstructions before restarting.
• Bambini e animali domestici: Keep children and pets away from the fireplace, especially when the heater is active, as surfaces can become hot.

3. Installazione e assemblaggio

Assembly of the Vaczon VCZ070WH TV Stand is required. Please follow the step-by-step instructions provided in the packaging. Ensure all parts are present before beginning assembly.

3.1. Disimballaggio e identificazione delle parti

• Estrarre con cautela tutti i componenti e l'hardware dalla scatola.
• Verify that all pieces are accounted for against the included parts list.
• Ispezionare tutti i componenti per verificare la presenza di eventuali danni. Contattare immediatamente l'assistenza clienti in caso di componenti mancanti o danneggiati.

3.2. Fasi di assemblaggio

Follow the detailed diagrams and instructions provided in your assembly guide. Most pieces are secured using cam screws and dowels for a straightforward process. A power drill may be helpful for some steps.

• Begin by assembling the main frame of the TV stand.
• Attach the side panels and the central support structure.
• Install the adjustable shelves in the side cabinets. These shelves can be positioned at one of three levels to accommodate items of varying heights.
• Secure the top panel to complete the main structure.
• Attach the mesh metal doors to the side cabinets. The doors feature push-to-open/close mechanisms and metal handles.
• Finally, carefully insert the 18-inch electric fireplace into its designated opening.

Figura 2: Ample Storage Options. This image shows the side cabinets with mesh metal doors and adjustable shelves, along with the open central shelf above the fireplace.

4. Istruzioni per l'uso

4.1. Funzionamento del camino elettrico

The 18-inch electric fireplace can be operated using the control panel on the unit or the included remote control.

Figure 3: Fireplace Control Panel. This image details the buttons on the fireplace unit for power, flame control, heater, and timer.

• Accensione/spegnimento: Press the power button on the control panel or remote to turn the fireplace on or off.
• Luminosità della fiamma: Adjust the flame brightness to one of 3 levels using the flame control button. This allows you to customize the ambiance.
• Funzione di riscaldamento: Press the heater button to activate the 1400W heater. The temperature can be set within a range of 62°F to 82°F. The heater will automatically turn off once the desired temperature is reached, while the flame effect can remain active.
• Impostazione del timer: Utilize the timer function to set the fireplace to operate for 0.5 to 6 hours.
• Flame-Only Mode: The fireplace can be used in flame-only mode to enjoy the visual effect without heat, suitable for year-round ambiance.

Figure 4: Fireplace Features and Remote. This image illustrates the various features of the electric fireplace, including heating capacity, timer, temperature range, and remote control.

4.2. Storage and Cable Management

The TV stand offers versatile storage solutions:

• Side Cabinets: Use the two side cabinets with adjustable shelves for storing media, DVDs, books, or decorative items.
• Scaffale aperto: The central open shelf above the fireplace is ideal for media devices such as receivers, gaming consoles, or soundbars.
• Gestione dei cavi: Utilize the cutouts in the back panel for organized cable routing, keeping your entertainment area tidy.

5. Manutenzione

Una manutenzione regolare contribuirà a prolungare la durata e l'aspetto del tuo supporto TV:

• Pulizia: Dust the surfaces regularly with a soft, dry cloth. For deeper cleaning, use a slightly damp panno e detergente delicato, quindi asciugare immediatamente. Evitare detergenti abrasivi o prodotti chimici aggressivi.
• Fireplace Cleaning: Ensure the fireplace is unplugged and cool before cleaning. Wipe the glass and exterior with a soft, damp cloth. Do not spray water directly into the unit.
• Controllo elettrico: Periodically inspect the power cord and plug for any signs of damage. Ensure all electrical connections are secure.
• Integrità strutturale: Controllare periodicamente tutte le viti e gli elementi di fissaggio per assicurarsi che siano ben serrati. Serrare nuovamente se necessario per mantenere la stabilità.

6. Risoluzione Dei Problemi

If you encounter issues with your Vaczon TV Stand or electric fireplace, refer to the following common solutions:

• Il camino non si accende:
  • Assicurarsi che il cavo di alimentazione sia collegato saldamente a una presa elettrica funzionante.
  • Controllare se l'interruttore è scattato.
  • Verify that the main power switch on the fireplace unit is in the 'ON' position.
• Nessuna emissione di calore:
  • Confirm the heater function is activated via the control panel or remote.
  • Check the temperature setting; ensure it is set higher than the ambient room temperature.
  • If the overheat protection has activated, unplug the unit for 10-15 minutes to reset it.
• Unità instabile:
  • Ensure all assembly screws and fasteners are properly tightened.
  • Verify the unit is placed on a flat, level surface.
  • Verificare che l'hardware antiribaltamento sia correttamente installato e fissato alla parete.
• Il telecomando non funziona:
  • Sostituire le batterie del telecomando.
  • Ensure there are no obstructions between the remote and the fireplace unit's sensor.

If problems persist after attempting these solutions, please contact Vaczon customer support.

7. Specifiche

Key specifications for the Vaczon VCZ070WH Corner Fireplace TV Stand:

Figure 5: Product Dimensions. This diagram provides key measurements of the TV stand, including width, height, and fireplace insert size.

8. Garanzia e supporto

For warranty information, claims, or technical support, please refer to the documentation included with your product or contact Vaczon customer service directly. Keep your purchase receipt as proof of purchase for any warranty-related inquiries.
