NiTHO NEXUS Wireless Controller Instruction Manual

Introduzione

This manual provides detailed instructions for the setup, operation, and maintenance of your NiTHO NEXUS Wireless Controller. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.

Prodotto finitoview

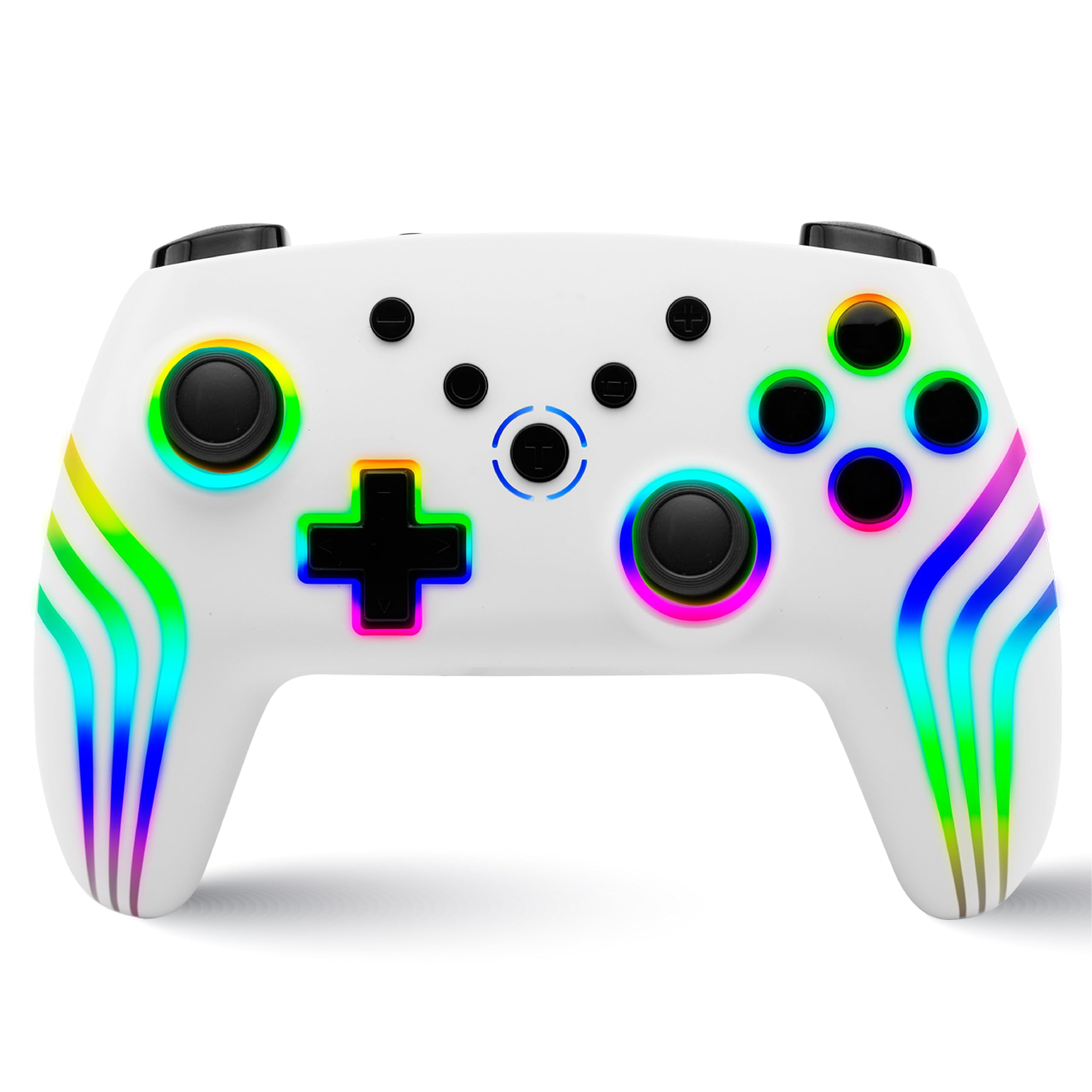

The NiTHO NEXUS Wireless Controller is designed for multi-platform gaming, offering compatibility with PC (Windows), Switch 2, Switch / Lite / OLED, Android, and iOS devices. It features Hall Effect triggers, a 6-axis gyro, adjustable vibration, and customizable RGB lighting.

Layout del controller

Immagine: Davanti e dietro view of the NiTHO NEXUS Wireless Controller with all buttons and ports clearly labeled. Key labels include HOME button, Screenshot key, +/- keys, Pairing button, Left Rockers, Cross arrow key, TURBO button, Mode Indicator Light, A/B/X/Y Keys, Right Rockers, R1, R2, L1, L2, TYPE-C charging port, and Force Online button.

Impostare

Caricamento del controller

Before initial use, fully charge the controller. Connect the supplied USB Type-C cable to the controller's charging port and the other end to a USB power source (e.g., PC, USB wall adapter). The charging indicator will show the charging status and turn off when fully charged. A full charge takes approximately 2.5 hours and provides up to 9 hours of gameplay.

Immagine: Illustration showing the controller's 800mAh battery capacity, indicating up to 9 hours of gameplay and a 2.5-hour charging time.

Associazione con i dispositivi

The NiTHO NEXUS controller supports wireless connection via Bluetooth to various platforms.

Immagine: The NiTHO NEXUS controller highlighting its universal compatibility with Switch 1 & 2, PC, Android, and iOS devices.

• Nintendo Switch / Switch 2: Turn on your Switch console. Go to "Controllers" > "Change Grip/Order". Press and hold the Pairing button on the top of the NEXUS controller until the indicator lights flash rapidly. Once paired, the indicator light will become solid.
• Per PC (Windows): Ensure your PC has Bluetooth enabled. Go to "Bluetooth & other devices" settings, click "Add Bluetooth or other device", then "Bluetooth". Press and hold the Pairing button on the controller. Select "Nitho NEXUS" from the list of available devices.
• Android/iOS: Enable Bluetooth on your mobile device. Press and hold the Pairing button on the controller. Select "Nitho NEXUS" from the list of available Bluetooth devices.

Istruzioni per l'uso

Impostazioni vibrazione

The controller features dual motor vibration with four adjustable levels: Off, Low, Medium, and High. These can be adjusted to suit your preference during gameplay.

Immagine: The controller with visual cues for dual motor vibration, showing 0%, 50%, 75%, and 100% intensity levels.

Funzione Turbo

The programmable turbo function allows for rapid, repeated button presses. It has three speed settings: 5, 10, or 15 shots per second.

• Per attivare Turbo: Press and hold the TURBO button, then press the desired action button (e.g., A, B, X, Y, L1, R1, L2, R2). The button will now continuously register presses when held.
• Per regolare la velocità Turbo: With Turbo active, press and hold the TURBO button, then move the Right Rocker (right analog stick) Up or Down to cycle through the speeds.
• Per disattivare Turbo: Press and hold the TURBO button, then press the action button again.

Immagine: The controller highlighting the Turbo function, showing options for 5, 10, and 15 shots per second.

Modalità di illuminazione RGB

The controller features customizable RGB lighting with 7 vibrant colors and 4 dynamic lighting modes.

• Jumping Light Effect: I colori cambiano rapidamente.
• Colorful Constant Light Effect: A single color remains constant.
• Rainbow Color Mixing Light Effect: Colors blend and transition smoothly.
• Effetto luce respirante: I colori sbiadiscono.

Refer to the controller's specific button combinations (usually a dedicated RGB button or a combination with the HOME button) to cycle through these modes and colors.

Immagine: The controller displaying various RGB LED light multi-effects, including Jumping Light, Colorful Constant Light, Rainbow Color Mixing Light, and Breathing Light.

6-Axis Gyro Motion Sensor

The integrated 6-axis gyro sensor allows for precise motion control in compatible games, capturing tilts and rotations for responsive gameplay, particularly in racing, action, and adventure titles.

Immagine: The controller with an overlay demonstrating its 6-axis motion sensing capabilities, showing rotational movement.

Trigger ad effetto Hall

The magnetic Hall Effect triggers provide smooth and accurate input, reducing wear and preventing common issues like stick drift, ensuring long-lasting precision.

Immagine: Close-up of the controller's trigger area, emphasizing the Hall Effect Trigger technology.

Manutenzione

• Mantenere pulito il controller pulendolo con un panno morbido e asciutto.
• Evitare di esporre il controller a temperature estreme, alla luce solare diretta o all'umidità.
• Non tentare di smontare il controller, poiché ciò invaliderebbe la garanzia.
• Quando non lo si utilizza, conservare il controller in un luogo sicuro per evitare danni fisici.

Risoluzione dei problemi

• Il controller non si associa: Ensure the controller is charged. Make sure Bluetooth is enabled on your device and the controller is in pairing mode (indicator lights flashing). Try restarting both the controller and the device.
• Ritardo di input o disconnessione: Assicurarsi che non vi siano ostacoli tra il controller e il dispositivo. Avvicinarsi al dispositivo. Ridurre le interferenze da altri dispositivi wireless.
• Pulsanti non reattivi: Check if the controller is charged. If specific buttons are unresponsive, try resetting the controller (refer to the "Force Online button" or a small reset pinhole if available, not explicitly mentioned but common).
• Vibrazione non funzionante: Check in-game settings to ensure vibration is enabled. Verify the controller's vibration level is not set to "Off".
• Deriva del bastone: The NiTHO NEXUS features Hall Effect triggers designed to prevent stick drift. If you experience this issue, ensure the controller's firmware is up to date (check manufacturer's website) or contact support.

Specifiche

Garanzia e supporto

For warranty information and technical support, please refer to the official Nitho website or contact their customer service directly. The manufacturer's contact email is: nithoamazonin@mtm-t.com.

For support in India, you may also contact the importer: Marketgate Technologies Private Limited, India, email: marketgateindia@gmail.com.

Conservare la prova d'acquisto per eventuali richieste di garanzia.
