1. Introduzione
Grazie per l'acquistoasing the ICARE 10000mAh Rechargeable Ozone Generator and Deodorizer. This device is designed to purify air and eliminate odors using ozone and negative ion technology. To ensure safe and optimal performance, please read this manual thoroughly before operating the device and retain it for future reference.
Avviso importante sulla sicurezza:
During operation, it is recommended that people and pets temporarily vacate the room. After the ozone purification cycle is complete, ensure the room is thoroughly ventilated before re-entry. For households with pets or individuals sensitive to odors, consider setting shorter operating durations.
Image 1.1: The ICARE Ozone Generator (Model IC52) with its USB-C charging cable, illustrating fresh air output.
2. Caratteristiche del prodotto
- High-Efficiency Deodorization and Air Purification: The ozone generator simultaneously releases powerful ozone (O3) and negative ions. Ozone effectively breaks down and eliminates odor-causing molecules, targeting pet odors, bathroom odors, and cooking smells. Negative ions help to capture airborne particles such as dust, pollen, and PM2.5, contributing to a cleaner air environment.
- Powerful Ozone Output: With an ozone output of 200mg/h, the ICARE ozone generator effectively eliminates strong odors in various spaces including living rooms, bedrooms, bathrooms, pet areas, kitchens, garages, and storage rooms. It can also refresh items like clothing and gear by neutralizing embedded odors.
- Dual Operating Modes and Timer Functions: The device offers two distinct operating modes: fixed duration (L mode) and cyclic operation (P mode). The 'L' button allows selection of four fixed operating times (L1-L4). The 'P' button activates four cyclic modes (P1-P4). These settings accommodate room sizes from 5 to 40 square meters, allowing customization based on your specific needs.
- Long-Lasting Battery and Cordless Convenience: Featuring a built-in 10,000mAh battery, the device can operate for approximately one week in P1, P3, or P4 modes, and up to two weeks in P2 mode on a single charge. Its USB rechargeable, cordless design offers flexibility for placement and portability, making it suitable for travel to deodorize hotel rooms, clothing, and bedding, or for use at home on desks or mounted on walls.
- Funzionamento silenzioso: Designed for minimal disturbance, the operating noise level is below 35dB, comparable to a whisper. This ensures the device can be used comfortably in bedrooms, offices, or other quiet environments without disrupting sleep or concentration.
Image 2.1: Diagram explaining the air purification process using ozone and negative ions.
Image 2.2: Benefits of the ICARE Ozone Generator, including reduction of allergens, bacteria, dust, and viruses.
3. Contenuto della confezione
Si prega di verificare che tutti gli articoli siano presenti e in buone condizioni al momento dell'apertura della confezione:
- ICARE Ozone Generator Unit (Model IC52)
- Cavo di ricarica USB di tipo C.
- Manuale d'uso
4. Impostazione
4.1 Ricarica del dispositivo
Before first use, fully charge the ozone generator. Connect the provided USB Type-C cable to the device's charging port and plug the other end into a compatible USB power adapter (not included) or a USB port on a computer. The LCD display will indicate charging status.

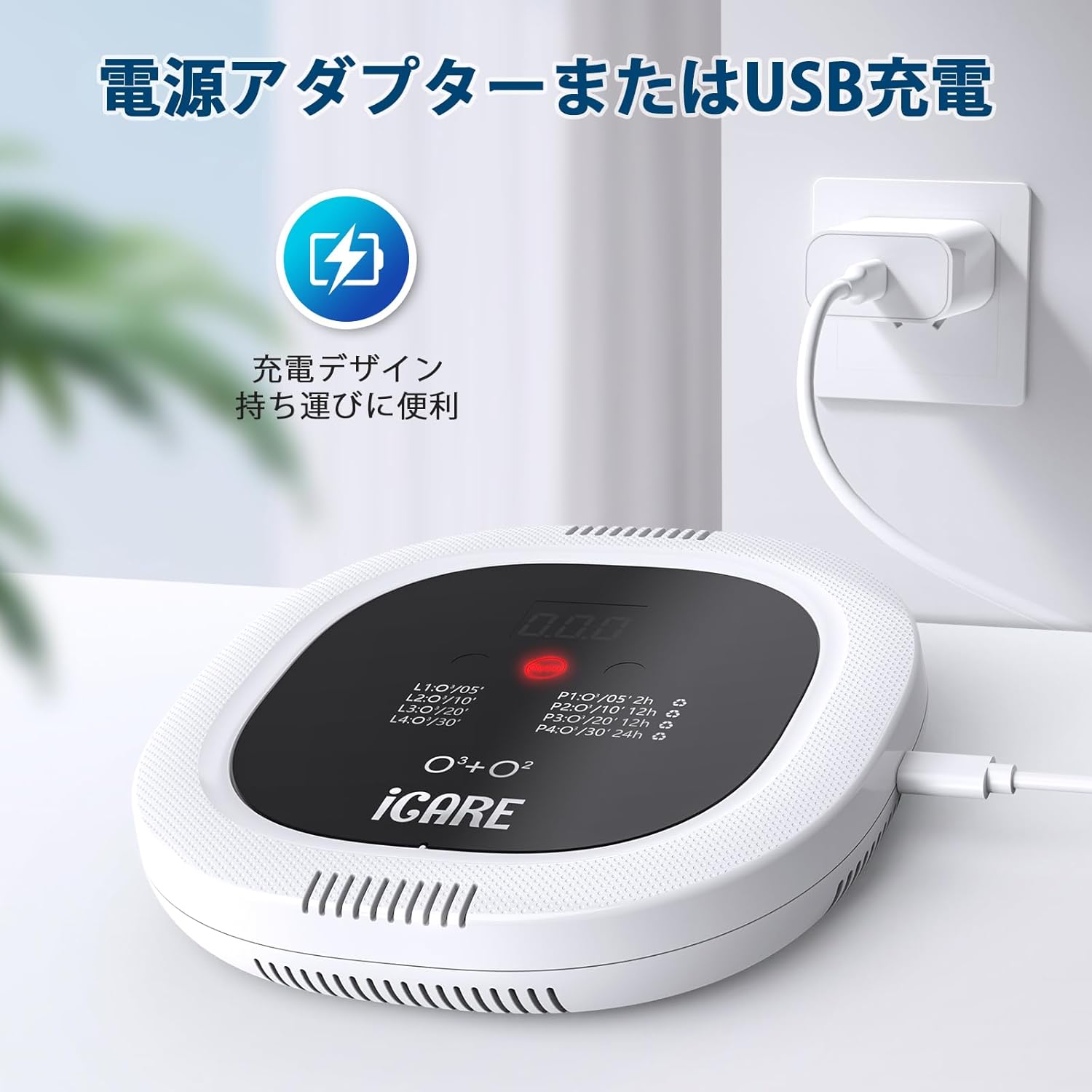

Image 4.1: The ozone generator connected for USB Type-C charging.
4.2 Posizionamento
Place the device in the center of the area you wish to purify, ensuring it is on a stable surface or mounted securely on a wall. Avoid placing it near heat sources, direct sunlight, or in areas with high humidity. Ensure there is adequate space around the device for proper air circulation.
Immagine 4.2: Es.amples of suitable placement locations for the ozone generator.
5. Istruzioni per l'uso
5.1 Pannello di controllo Sopraview
Image 5.1: Control panel layout and functions.
- Pulsante di accensione/spegnimento: Premere per accendere o spegnere il dispositivo.
- 'L' Button (Fixed Timer Mode): Press to select a fixed operating duration.
- 'P' Button (Cyclic Mode): Press to select a cyclic operating mode.
- Schermo LCD: Shows current mode, timer, and battery status.
5.2 Accensione/spegnimento
Premere il tasto ACCESO/SPENTO button located on the control panel to power on the device. Press it again to turn off the device.
5.3 Selezione delle modalità operative
The device features two main operating modes: Fixed Timer Mode ('L') and Cyclic Mode ('P').
Fixed Timer Mode ('L' Button):
Premere il tasto L button to cycle through the following fixed operating durations:
- L1: 5 minuti di funzionamento
- L2: 10 minuti di funzionamento
- L3: 20 minuti di funzionamento
- L4: 30 minuti di funzionamento
In 'L' mode, the device will operate for the selected duration and then turn off automatically.
Cyclic Mode ('P' Button):
Premere il tasto P button to cycle through the following cyclic operating modes:
- Domanda 1: 5 minutes of operation every 2 hours
- Domanda 2: 10 minutes of operation every 12 hours
- Domanda 3: 20 minutes of operation every 12 hours
- Domanda 4: 30 minutes of operation every 24 hours
In 'P' mode, the device will automatically repeat the selected cycle until manually turned off or the battery is depleted.
Immagine 5.2: Dettagliata view of the two operating modes and their settings.
5.4 Indicazione della durata della batteria
The LCD display will show the remaining battery level. A full charge provides approximately one week of use in P1/P3/P4 modes and up to two weeks in P2 mode.
Image 5.3: Battery life estimates for different operating modes.
6. Manutenzione
6.1 Pulizia
To clean the exterior of the device, wipe it gently with a soft, dry cloth. Do not use liquid cleaners, abrasive materials, or immerse the device in water.
6.2 Progettazione senza filtri
This ozone generator is designed to be filter-free, eliminating the need for filter replacements. This simplifies maintenance and reduces ongoing costs.
7. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il dispositivo non si accende. | La batteria è scarica. | Caricare il dispositivo utilizzando il cavo USB Type-C in dotazione. |
| Odor reduction is not noticeable. | Incorrect mode or timer setting for room size/odor intensity. Room not properly ventilated after use. | Adjust the operating mode and timer setting to a longer duration or more frequent cycle. Ensure the room is adequately ventilated after each cycle. For strong odors, consider using a fixed timer mode for a concentrated treatment. |
| Il dispositivo emette un rumore insolito. | Obstruction in air intake/outlet. | Check for and remove any obstructions from the air intake and outlet vents. If the problem persists, contact customer support. |
8. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | IC52 |
| Marca | ICARE |
| Dimensioni del prodotto (L x P x A) | Dimensioni: 20 cm x 18 cm x 4 cm |
| Dimensioni del pacco | Dimensioni: 25.3 cm x 22.8 cm x 5.2 cm |
| Peso del pacco | 0.88 kg |
| Batteria | Batteria al litio integrata da 10,000 mAh |
| Tipo di ricarica | Ricaricabile tramite USB di tipo C |
| Metodo di controllo | Tocca Operazione |
| Uscita dell'ozono | 200 mg/ora |
| Livello di rumore | < 35 dB |
| Area di copertura | 5 - 40 metri quadrati |
| Altre funzioni | LCD Display, Portable, Lightweight |
| Certificazione | Certificato CE |
Image 8.1: Illustration of the device's quiet operation (below 35dB).
9. Garanzia e supporto
ICARE products are manufactured to high-quality standards. For any questions, technical support, or warranty claims, please refer to the contact information provided with your purchase or visit the official ICARE websito. Conservare la prova d'acquisto per l'assistenza in garanzia.
