Manuale di istruzioni per il treppiede video in lega di alluminio per impieghi gravosi SMALLRIG da 73 pollici AD-14-5440

1. Introduzione

Thank you for choosing the SMALLRIG AD-14-5440 Heavy Duty Aluminum Alloy Video Tripod. This manual provides detailed instructions for the proper setup, operation, and maintenance of your tripod. Please read this manual carefully before use to ensure optimal performance and longevity of the product. Keep this manual for future reference.

Informazioni sulla sicurezza

• Ensure all locking mechanisms are securely fastened before mounting equipment or adjusting the tripod.
• Do not exceed the maximum load capacity of 8kg (18lbs).
• Avoid exposing the tripod to extreme temperatures, moisture, or corrosive substances.
• Always handle the tripod with care to prevent damage to its components.

2. Prodotto finitoview

The SMALLRIG AD-14-5440 is a robust and portable video tripod designed for stable camera support. It features an aluminum alloy construction, a fluid head for smooth movements, and adjustable legs for various shooting scenarios.

Figura 2.1: Oltreview of the SMALLRIG AD-14-5440 Tripod and its carrying bag.

Caratteristiche principali

• Costruzione in lega di alluminio: Durable and lightweight, supporting up to 8kg (18lbs) while weighing only 3.1kg (6.8lbs).
• Professional Fluid Head: Offers infinite tilt drag control for smooth pans and tilts, with a tilt range of +85° to -78°. Compatible with 501PL for Manfrotto plates.
• Horseshoe Head Design: Features a built-in anti-drop mechanism for enhanced stability on various terrains.
• Compatto e portatile: Collapses to 88cm (34 inches) for easy transport.
• Altezza regolabile: Extends from 85cm (33 inches) to 186cm (73 inches) with a 65mm bowl mount for leveling.
• Accessory Mounts: Includes 2x 1/4"-20 mounts for attaching accessories like monitors or microphones.

Figura 2.2: dettagliata view of the fluid head showing the 3/8"-16 screw, 1/4"-20 screw, QR Plate Locking Knob, QR Plate Release Button, Tilt Locking Knob, and Pan Locking Knob.

3. Impostazione

3.1 Disimballaggio

Rimuovere con attenzione tutti i componenti dalla confezione. Verificare che tutti gli articoli elencati nella sezione "Contenuto della confezione" siano presenti.

3.2 Estensione delle gambe del treppiede

1. Posizionare il treppiede su una superficie piana e stabile.
2. Release the leg locks on each leg. The AD-14-5440 features 2-button leg locks for secure adjustment.
3. Extend each leg section to the desired height.
4. Securely fasten all leg locks to prevent accidental collapse.

Figure 3.1: Illustration of the 2-button leg locks and switchable feet for stable setup on various surfaces.

3.3 Attaching the Quick Release Plate

1. Locate the quick release plate on the fluid head.
2. Press the QR Plate Release Button and slide the quick release plate out.
3. Attach your camera or equipment to the quick release plate using the appropriate 1/4"-20 or 3/8"-16 screw. Ensure it is tightened securely.
4. Slide the quick release plate with your equipment back into the fluid head until it clicks into place.
5. Engage the QR Plate Locking Knob for additional security.

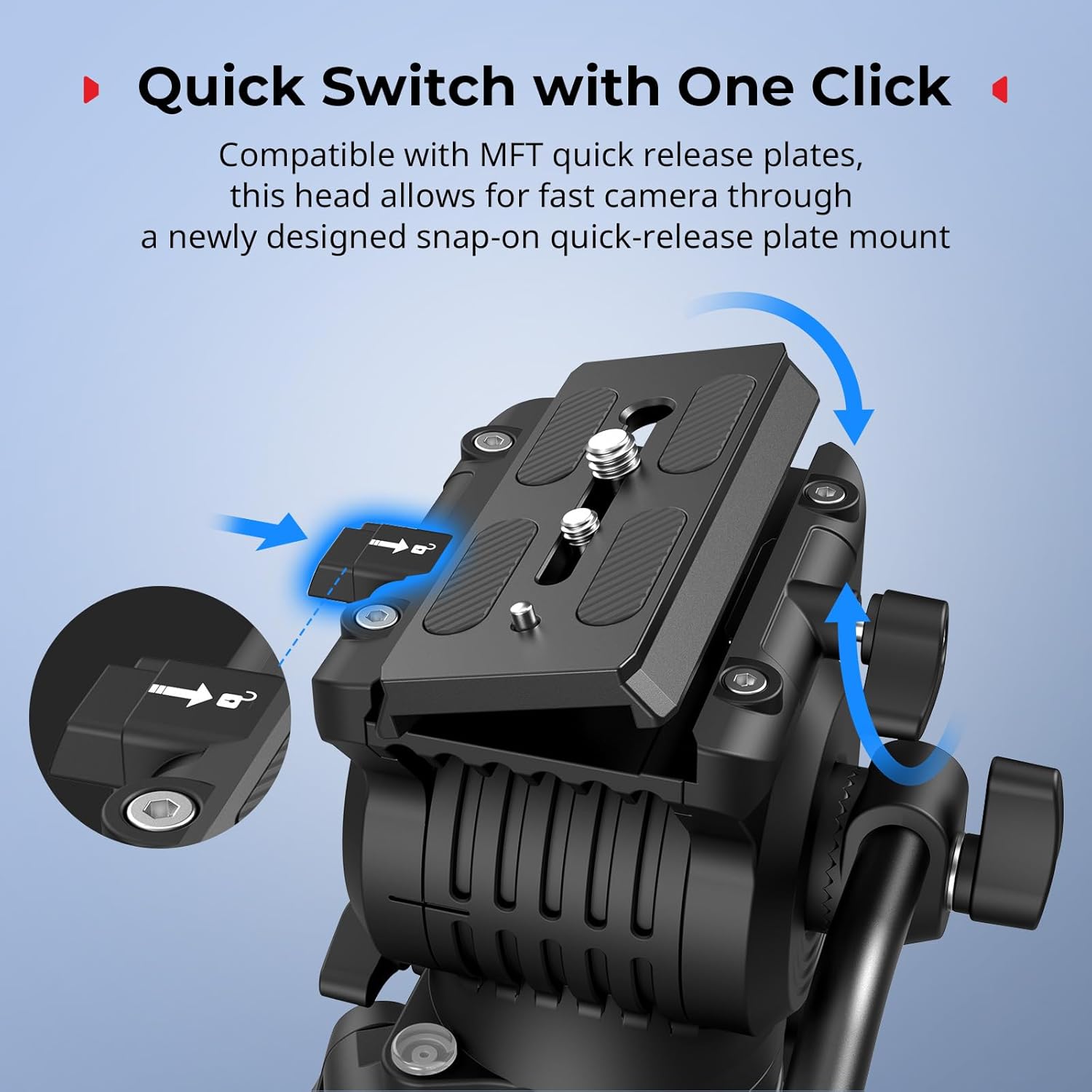

Figure 3.2: Demonstrates the quick release plate mechanism for fast camera attachment and removal.

4. Istruzioni per l'uso

4.1 Regolazione dell'altezza del treppiede

The tripod offers a wide range of height adjustments. To adjust, release the leg locks, extend or retract the leg sections, and then firmly re-engage the locks. The tripod can extend from a minimum height of 85cm (33 inches) to a maximum height of 186cm (73 inches).

Figure 4.1: Visual representation of the tripod's adjustable height settings, from 85cm (1-section) to 186cm (max height).

4.2 Panning and Tilting

The fluid head allows for smooth and controlled camera movements.

• Panoramica: Loosen the Pan Locking Knob to rotate the camera horizontally (360° panorama). Tighten the knob to secure the position.
• Inclinazione: Loosen the Tilt Locking Knob to adjust the camera vertically. The tilt range is +85° to -78°. Tighten the knob to secure the angle.
• The fluid head features infinite tilt drag control, allowing you to customize the resistance for smoother movements based on your equipment's weight.

Figure 4.2: Illustrates the 360° panning capability and the +85° to -78° tilt range of the fluid head.

5. Manutenzione

5.1 Pulizia

• Wipe the tripod body with a soft, dry cloth after each use to remove dust and dirt.
• For stubborn grime, use a slightly damp panno con sapone neutro, quindi asciugare accuratamente.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish and components.
• Keep the fluid head clean and free of debris to ensure smooth operation.

5.2 Conservazione

• Store the tripod in its included carrying bag when not in use to protect it from dust and scratches.
• Conservare in un luogo fresco e asciutto, lontano dalla luce solare diretta e dalle temperature estreme.
• Ensure all leg sections are fully retracted and locked before storage.

6. Risoluzione Dei Problemi

If you encounter any issues with your SMALLRIG AD-14-5440 tripod, please refer to the following common solutions:

• Instabilità del treppiede: Ensure all leg locks are fully engaged and the tripod is placed on a level surface. Check that the horseshoe head design is properly adjusted for the terrain.
• Stiff Panning/Tilting: Verify that the Pan Locking Knob and Tilt Locking Knob are sufficiently loosened. Clean the fluid head mechanism if debris is suspected.
• Quick Release Plate Not Securing: Ensure the quick release plate is correctly inserted and the QR Plate Locking Knob is engaged. Check for any obstructions in the plate slot.
• Leg Sections Not Extending/Retracting Smoothly: Clean the leg sections to remove any dirt or grit. Avoid forcing the sections.

If the problem persists, please contact SMALLRIG customer support for further assistance.

7. Specifiche

Figure 7.1: Detailed product and package specifications for the SMALLRIG AD-14-5440.

8. Cosa c'è nella scatola

The SMALLRIG AD-14-5440 package includes the following items:

• Treppiede x 1
• Chiave a brugola x 1
• Borsa di stoccaggio x 1
• Telefono Clamp ogni 1
• Carta di garanzia x 1

9. Garanzia e supporto

SMALLRIG products are manufactured to high-quality standards. For warranty information, product registration, or technical support, please refer to the included Guarantee Card or visit the official SMALLRIG websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
