1. Introduzione
The SmallRig RM 03 Macro Photography LED Light is a versatile and portable lighting solution designed for close-up photography and videography. It features an adjustable beam angle, multiple color options, and various mounting accessories to provide precise illumination for small subjects. This manual provides essential information for the safe and effective use of your RM 03 light.
2. Contenuto della confezione
Verifica che tutti gli articoli elencati di seguito siano inclusi nel tuo pacchetto:
- RM 03 LED Light x 1
- Diffusore x 1
- Four-Leaf Barndoor x 1
- Heavy Duty Clamp ogni 1
- Picchetto a terra x 1
- Cold Shoe Mount x 1
- Riflettore x 1
- Film Slide x 10
- Cavo USB-C x 1
- Manuale utente x 1
Image: The SmallRig RM 03 Macro Photography LED Light with its various accessories, including the flexible arm light, diffuser, barndoor, clamp, ground stake, cold shoe mount, spotlight, film slides, and USB-C cable.
3. Prodotto finitoview
The RM 03 features a flexible gooseneck design with an integrated LED light head and a control handle. The light head allows for beam angle adjustment and accepts various light modifiers.
Componenti chiave:
- LED Light Head: Contains five 3W high-brightness LED lamps (cold white, warm white, red, green, blue).
- Braccio flessibile: High-strength, fatigue-resistant metal spring for precise positioning.
- Maniglia di controllo: Integrated power and control buttons, USB-C charging port, and 1/4"-20 threaded hole.
- Diffusore: Softens light output.
- Four-Leaf Barndoor: Controls light spill and shapes the beam.
- Riflettore: Concentrates the light beam.
- Film Slides: 10 different patterns for creative lighting effects.
4. Impostazione
Before initial use, ensure the RM 03 light is fully charged.
4.1 Ricarica del dispositivo
- Locate the USB-C charging port on the control handle.
- Connect the provided USB-C cable to the port and a compatible 5V/1A USB power source (not included).
- The charging indicator light will show charging status. A full charge provides approximately 140 minutes of runtime.
Image: The SmallRig RM 03 light connected to a power bank via its USB-C cable, demonstrating its ability to charge during use for extended runtime.
5. Istruzioni per l'uso
5.1 Accensione/spegnimento e regolazione della luminosità
- Press and hold the power button on the control handle to turn the light on or off.
- Short press the brightness adjustment button to cycle through 5 levels of brightness.
Image: A visual representation of the 5-level brightness adjustment feature, showing a small mushroom illuminated with increasing intensity from left to right.
5.2 Selezione del colore
The RM 03 offers five distinct colors:
- Cold White (6500K)
- Bianco caldo (2200K)
- Rosso
- Verde
- Blu
Use the color selection button on the control handle to cycle through these options.
Image: A demonstration of the five available colors (Cold, Warm, Red, Green, Blue) illuminating miniature scenes, showcasing the light's versatility for mood and effect.
5.3 Regolazione dell'angolo del fascio
The light head can be adjusted to change the beam angle from 4° to 32°.
- To diffuse the beam: Retract the light head.
- To narrow the beam: Extend the light head.
Image: An illustration demonstrating the adjustable beam angle feature. Retracting the light head diffuses the beam, while extending it narrows the beam for precise lighting.
5.4 Using Light Modifiers (Diffuser, Barndoor, Spotlight, Film Slides)
The RM 03 comes with several accessories to shape and modify the light:
- Diffusore: Attach the diffuser to the front of the light head to soften the light and reduce harsh shadows.
- Four-Leaf Barndoor: Attach the barndoor to control light spill and direct the light more precisely. This helps reduce scattered light.
- Riflettore: Use the spotlight attachment to create a more focused and intense beam.
- Film Slides: Insert one of the 10 provided film slides into the spotlight attachment to project patterns and enhance the atmosphere of your scene.
Image: The RM 03 light projecting a circular pattern, accompanied by a display of 10 different film slides (gobos) that can be used to create various atmospheric effects.
6. Opzioni di montaggio
The flexible design and included accessories allow for versatile mounting in various shooting environments:
- Cold Shoe Adapter: Attach the cold shoe mount to your camera's hot shoe for on-camera macro lighting.
- Heavy Duty Clamp: Utilizzare il clamp to secure the light to a desk, table edge, or other surfaces for stable desktop lighting.
- 1/4"-20 Threaded Hole: The control handle features a 1/4"-20 screw hole, allowing attachment to tripods, light stands, or other compatible gear.
- Paletto di terra: For outdoor nature photography, insert the ground stake into soft ground to position the light precisely.
- Braccio flessibile: The arm itself can be coiled around objects like tree branches or tripod legs for creative positioning.

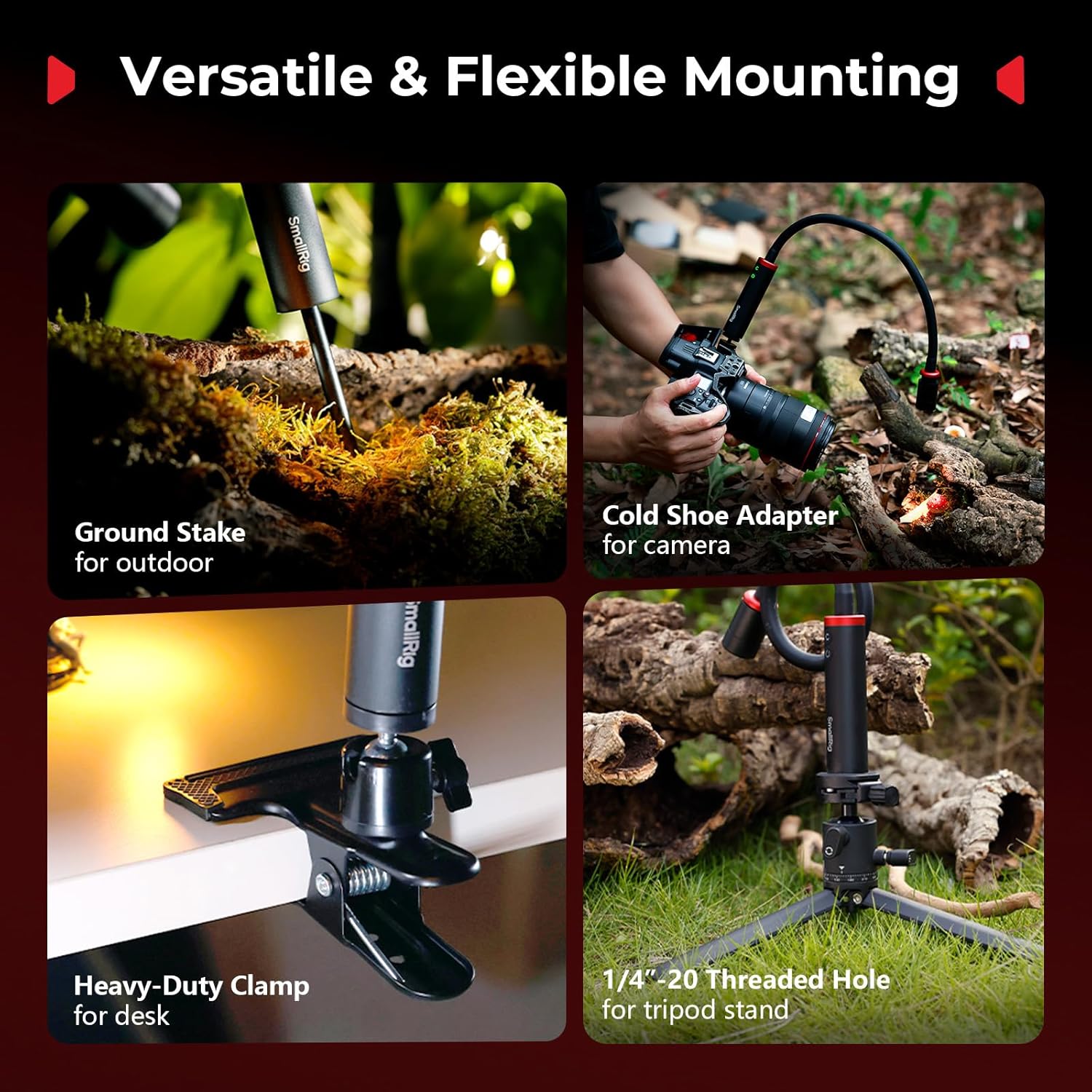

Image: A collage illustrating the versatile mounting options: using the ground stake for outdoor scenes, the cold shoe adapter for camera mounting, the heavy-duty clamp for desktop use, and the 1/4"-20 threaded hole for tripod attachment.
Image: The flexible arm of the SmallRig RM 03 light bent to precisely illuminate a small mushroom, highlighting its effortless and precise positioning capabilities.
7. Manutenzione
7.1 Pulizia
Wipe the light and accessories with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
7.2 Resistenza alle intemperie
The RM 03 light has an IP54 rating, meaning it is protected against dust ingress and splashing water from any direction. While suitable for outdoor use in light rain or dusty conditions, it is not designed for submersion or heavy downpours. Ensure the USB-C port cover is securely closed when exposed to moisture.

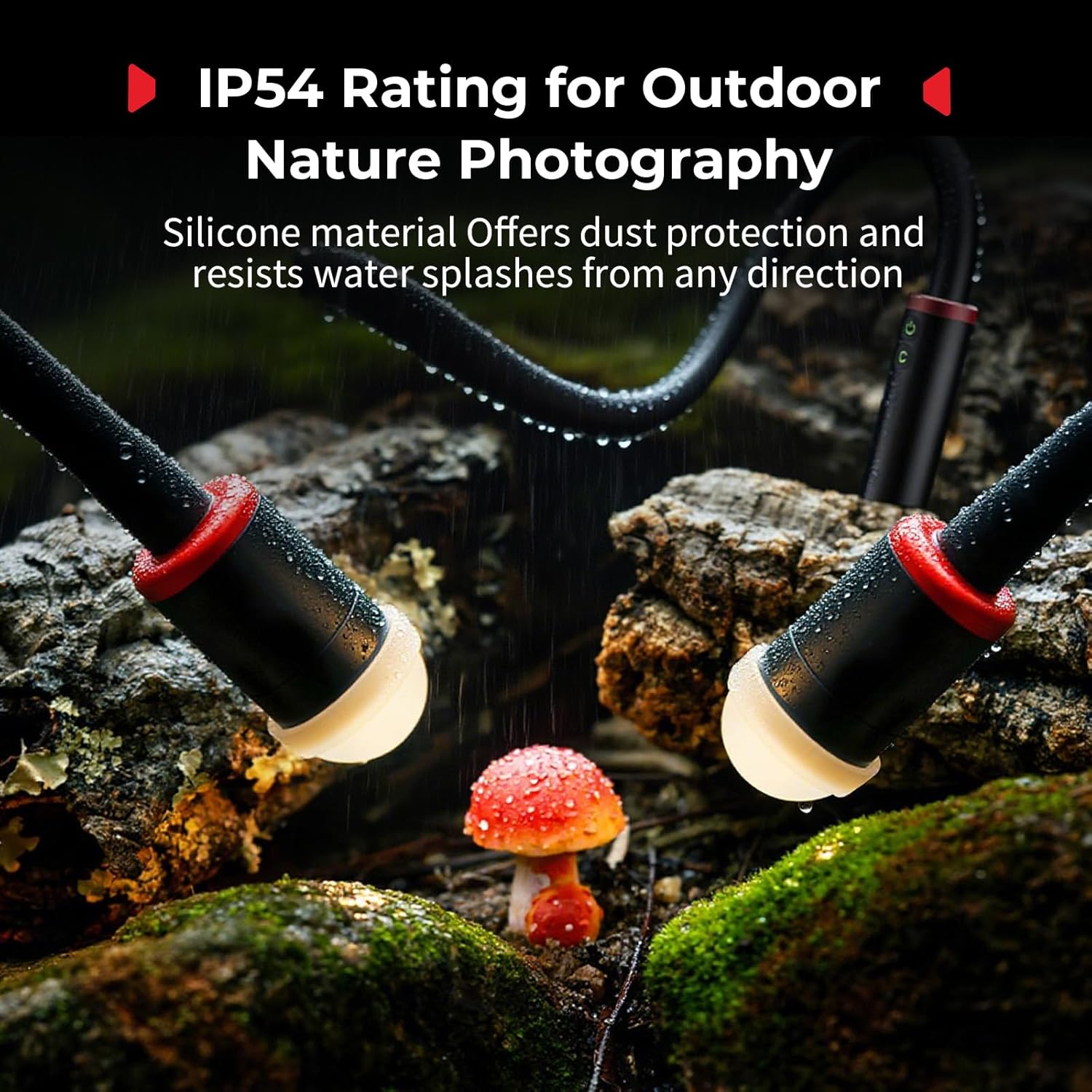

Image: Two RM 03 lights illuminating a mushroom in a damp, mossy environment, demonstrating its IP54 weather resistance for outdoor nature photography.
7.3 Conservazione
Quando non in uso, conservare il dispositivo in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
8. Risoluzione Dei Problemi
- La luce non si accende: Assicurarsi che la batteria sia carica. Collegare a una fonte di alimentazione tramite il cavo USB-C.
- L'emissione luminosa è debole: Check the brightness setting and ensure the battery is sufficiently charged.
- USB-C port cover issues: Ensure the cover is properly seated to maintain IP54 rating. If it becomes loose, contact customer support.
- For other issues, refer to the contact information in the Support section.
9. Specifiche
Image: A visual summary of the RM 03 Macro Photography Light, including its components and a table detailing its technical specifications.
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | 5480 |
| Potenza in uscita (massima) | 3W |
| Ingresso | 5V / 1A |
| Colori LED | Red, Green, Blue, Cold White (6500K), Warm White (2200K) |
| CRI | 95 |
| TLCI | 92 |
| Regolazione dell'angolo del fascio | Da 4° a 32° |
| Capacità della batteria | 2000 mAh (3.7 V/7.4 Wh) |
| Durata della batteria | Up to 140 minutes (at full brightness) |
| Porta di ricarica | USB di tipo C |
| Resistenza alle intemperie | IP54 Rating (Dust protected, splash water resistant) |
| Dimensioni del prodotto | 530.0 x 28.0 mm (20.9 x 1.1 pollici) |
| Peso dell'articolo | 300.0 g (10.6 once) |
| Materiale | Lega di alluminio |
10. Garanzia e supporto
10.1 Informazioni sulla garanzia
SmallRig products typically come with a limited warranty. Please refer to the warranty card included with your product or visit the official SmallRig website for detailed warranty terms and conditions specific to the RM 03 Macro Photography LED Light.
10.2 Assistenza clienti
For technical assistance, product inquiries, or warranty claims, please contact SmallRig customer support through their official websito o le informazioni di contatto fornite sulla ricevuta di acquisto.
SmallRig Ufficiale Websito: www.smallrig.com
