Manuale utente della stazione di alimentazione portatile Anker SOLIX C1000 Gen 2

1. Introduzione

The Anker SOLIX C1000 Gen 2 Portable Power Station is a versatile power solution designed for home backup, power outages, and outdoor activities like camping. This manual provides essential information for safe and efficient operation of your device.

Cosa è incluso:

• Stazione di alimentazione portatile Anker SOLIX C1000 Gen 2
• Cavo di ricarica CA.
• Cavo di ricarica per auto
• Guida rapida
• Scheda di sicurezza e garanzia
• Anker SOLIX PS100 Solar Panel (100W) (if purchased as a bundle)
• 2x 9.8 ft (3 m) Solar Charging Cable (if purchased as a bundle)
• 1.6 ft (0.5 m) XT60 Solar Charging Cable (if purchased as a bundle)
• XT60 to 7909 Cable (if purchased as a bundle)
• Safety Manual (for solar panel, if purchased as a bundle)

Note: If purchased as a bundle, items may be dispatched in separate packages.

2. Prodotto finitoview

2.1. Descrizione fisica

The Anker SOLIX C1000 Gen 2 is designed for portability and durability. It features a compact gray casing with integrated handles for easy transport. The front panel includes a display screen and various output ports. Ventilation grilles are located on the sides to ensure proper heat dissipation.

Figure 1: Anker SOLIX C1000 Gen 2 Portable Power Station, front view.

2.2. Porte e display

The power station is equipped with 10 output ports to accommodate various devices:

• 5x AC Ports: Provide up to 2,000W continuous output (3,000W peak).
• 2x 140W USB-C Ports: High-power output for fast charging compatible devices.
• 1x 15W USB-C Port: Standard USB-C output.
• 1x 12W USB-A Port: Standard USB-A output.
• 1x 120W Car Port: Per dispositivi a 12 V CC.

The integrated display provides real-time information on battery percentage, ingresso/uscita wattage, and remaining runtime. It also indicates active ports and charging status.

Figura 2: dettagliata view delle porte di uscita della centrale elettrica.

3. Impostazione

3.1. Ricarica iniziale

Before first use, fully charge the Anker SOLIX C1000 Gen 2 using the provided AC charging cable. Plug the cable into a standard wall outlet and connect it to the AC input port on the power station. The display will indicate charging progress.

3.2. Solar Panel Connection (if applicable)

If using the Anker SOLIX PS100 Solar Panel, connect it to the DC input port on the power station using the provided solar charging cables. Ensure the solar panel is placed in direct sunlight for optimal charging efficiency. The power station supports up to 600W solar input (60V max).

Figure 3: Anker SOLIX C1000 Gen 2 connected to a solar panel for charging.

4. Istruzioni per l'uso

4.1. Accensione/Spegnimento

To power on the device, press and hold the main power button for approximately 3 seconds. The display will illuminate. To power off, press and hold the same button until the display turns off.

4.2. Using AC/DC/USB Ports

Once the power station is on, simply plug your devices into the desired output ports. For AC outlets, press the dedicated AC power button to activate them. USB ports (USB-A and USB-C) will activate automatically upon device connection. The display will show the wattage viene disegnato dai dispositivi connessi.

4.3. HyperFlash Technology (UltraFast Recharging)

The Anker SOLIX C1000 Gen 2 features HyperFlash technology for ultra-fast recharging. This allows the unit to fully recharge in just 49 minutes at 1,600W. This feature can be enabled via the Anker app. Use only the standard Anker SOLIX AC charging cable to prevent damage.

Figure 4: Power station demonstrating HyperFlash ultra-fast recharging.

4.4. TOU Mode (Time of Use)

Utilize the Anker app to activate TOU Mode. This feature allows the power station to charge itself during off-peak electricity rate hours and automatically switch to battery power during peak hours, potentially saving on electricity costs.

4.5. Funzione di alimentazione ininterrotta (UPS)

The C1000 Gen 2 provides a seamless 10ms UPS function. When connected to a wall outlet and powering devices, it can automatically switch to battery power within 10 milliseconds if the main power fails, ensuring continuous operation for sensitive electronics.

Figure 5: Power station providing seamless UPS functionality during an outage.

5. Opzioni di ricarica

The Anker SOLIX C1000 Gen 2 offers multiple ways to recharge:

• Ingresso CA: Full recharge in 49 minutes using HyperFlash technology (1,600W).
• Ingresso solare: Full recharge in 1.8 hours with 600W solar input (using compatible solar panels).
• Ingresso auto: Full recharge in 12.3 hours via a 100W car charger.
• Ingresso CA + solare: Combined charging can achieve a full recharge in 0.8 hours.
• Ingresso generatore CA: Full recharge in 49 minutes.
• Alternator Charger: Estimated full recharge in 1.8 hours (with upcoming Anker SOLIX Alternator Charger).

Figura 6: Oltreview of available recharging methods.

6. Informazioni sulla batteria

The Anker SOLIX C1000 Gen 2 utilizes a durable LiFePO4 (Lithium Iron Phosphate) battery. This battery chemistry is known for its longevity and safety.

• Durata: Rated for 4,000 charge cycles, maintaining at least 80% capacity after 10 years of daily use.
• Capacità: 1,024Wh (Watt-hours).

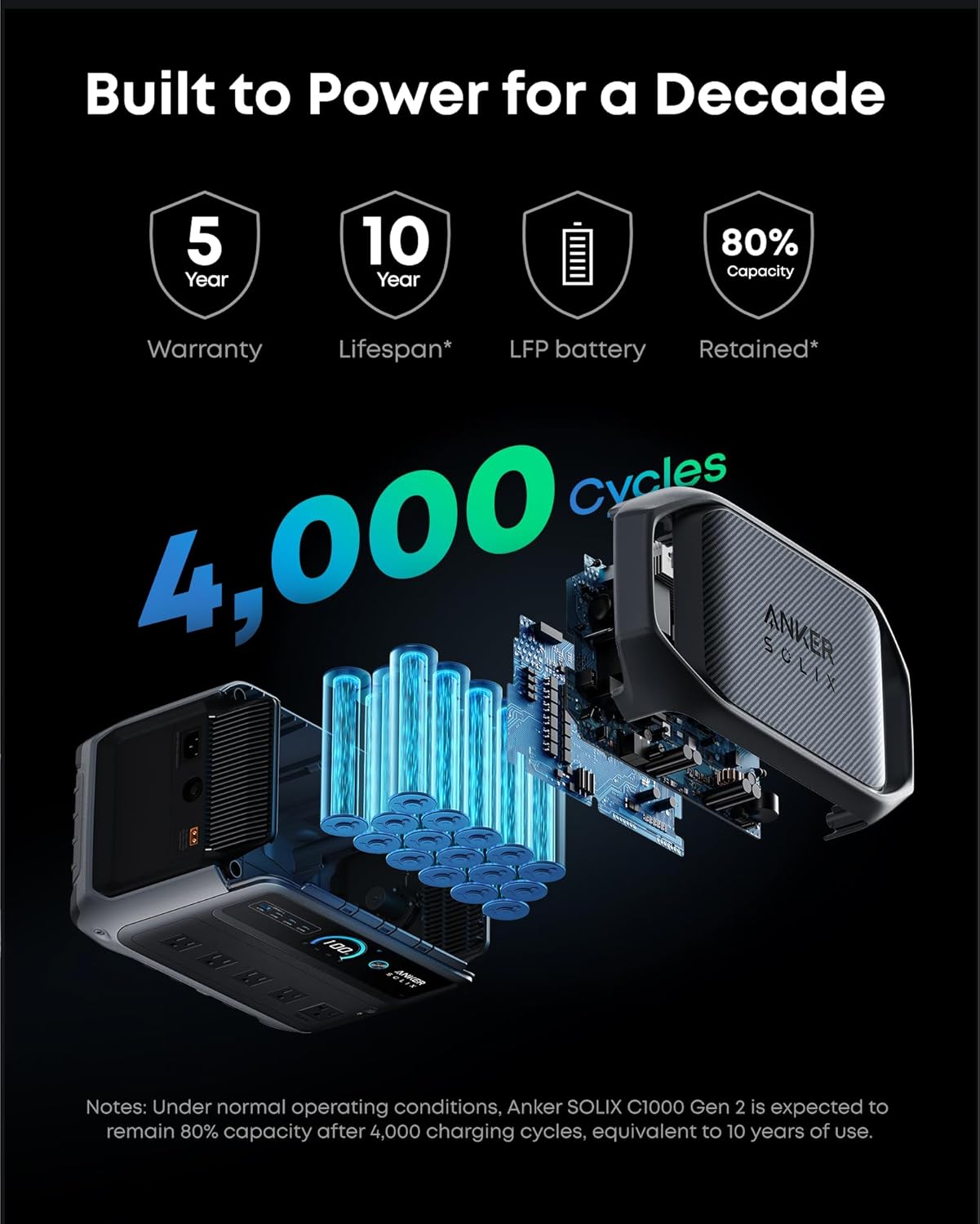

Figure 7: Battery longevity details for the Anker SOLIX C1000 Gen 2.

7. Manutenzione

To ensure optimal performance and longevity of your power station:

• Conservare in un luogo fresco e asciutto, lontano dalla luce solare diretta e dalle temperature estreme.
• Evitare di far cadere o sottoporre il dispositivo a forti impatti.
• Keep ventilation areas clear of obstructions to prevent overheating.
• For the solar panel, its IP67 waterproof design protects it from rain, but avoid prolonged submersion.

8. Risoluzione Dei Problemi

If you encounter issues with your Anker SOLIX C1000 Gen 2, consider the following:

• Il dispositivo non si accende: Assicurarsi che la batteria sia carica. Tenere premuto il pulsante di accensione per 3 secondi.
• Nessun output dalle porte: Check if the specific output (AC) is activated. Ensure devices are properly connected.
• Ricarica lenta: Verify that HyperFlash technology is enabled in the app for AC charging. For solar charging, ensure panels are in direct sunlight and correctly connected.
• Protezione da sovraccarico: If the device shuts down due to overload, disconnect some devices and restart. The power station can handle 2,000W continuous output and 3,000W peak.
• Problemi di connettività dell'app: Ensure Bluetooth and Wi-Fi are enabled on your mobile device and the power station. Follow in-app instructions for pairing.

9. Specifiche

10. Garanzia e supporto

La stazione di alimentazione portatile Anker SOLIX C1000 Gen 2 è dotata di un Garanzia di 5 anno. For technical support, troubleshooting, or warranty claims, please refer to the contact information provided in your Safety and Warranty Card or visit the official Anker websito.
