SMALLRIG 5" Electric Camera Suction Cup Mount Kit with Magic Arm

1. Prodotto finitoview

The SMALLRIG 5" Electric Camera Suction Cup Mount Kit with Magic Arm is designed for secure camera mounting on smooth, dry, and flat surfaces, particularly for vehicle-based videography. It features an electric motor for quick and reliable suction, real-time pressure monitoring, and a durable construction suitable for various temperatures. The kit includes a versatile magic arm for flexible camera positioning.

The complete SMALLRIG 5-inch Electric Camera Suction Cup Mount Kit, including the suction cup and magic arm.

2. Cosa è incluso

• 5" Suction Cup Mount x 1
• Magic Arm with Ball Head x 1
• Safety Tether x 1

3. Caratteristiche principali

• High Performance Electric Motor: Equipped with a motor that responds in less than 100ms for quick suction. Features a built-in pressure monitoring module that triggers automatic inflation if pressure drops below 75%, ensuring secure adhesion.
• Batteria integrata da 2000 mAh: The suction cup mount contains a 2000mAh battery supporting QC protocol (5V/2A Type-C). It fully charges in 45 minutes and provides up to 30 hours of continuous operation.
• Superior Suction Power: Offers one-touch auto-adhesion. Supports up to 40kg (88lb) when vertically mounted and up to 60kg (132lb) when horizontally mounted.
• Multiple Installation Points: Includes anti-twist 1/4"-20 and 3/8"-16 threaded holes, as well as 3/8"-16 locating holes for ARRI, allowing for versatile accessory attachment. Comes with a dust cover for protection.
• Lightweight & Durable Material: Constructed from nitrile rubber for the main body and aluminum alloy for the expansion base, ensuring sturdiness, wear-resistance, and suitability for temperatures between -25°C to 60°C (-13°F to 140°F).

4. Configurazione e funzionamento

4.1 Funzionamento generale

• Accensione/Spegnimento: Premere a lungo il pulsante di accensione.
• Attiva aspirazione: Press and release the button repeatedly until the full bar indicator lights up, signifying secured suction.
• Rilascio aspirazione: Premi due volte il pulsante di accensione.

Detailed instructions on operating the suction cup's power, suction activation, release, and interpreting the air pressure indicator lights.

4.2 Air Pressure Indicator Bar

• A blue bar displays real-time air pressure (0-100%).
• Full bar illumination indicates 100% pressure (suction secured).
• Partial illumination between 75-100%.
• Below 75%: Auto-replenishment activates until full pressure is restored.

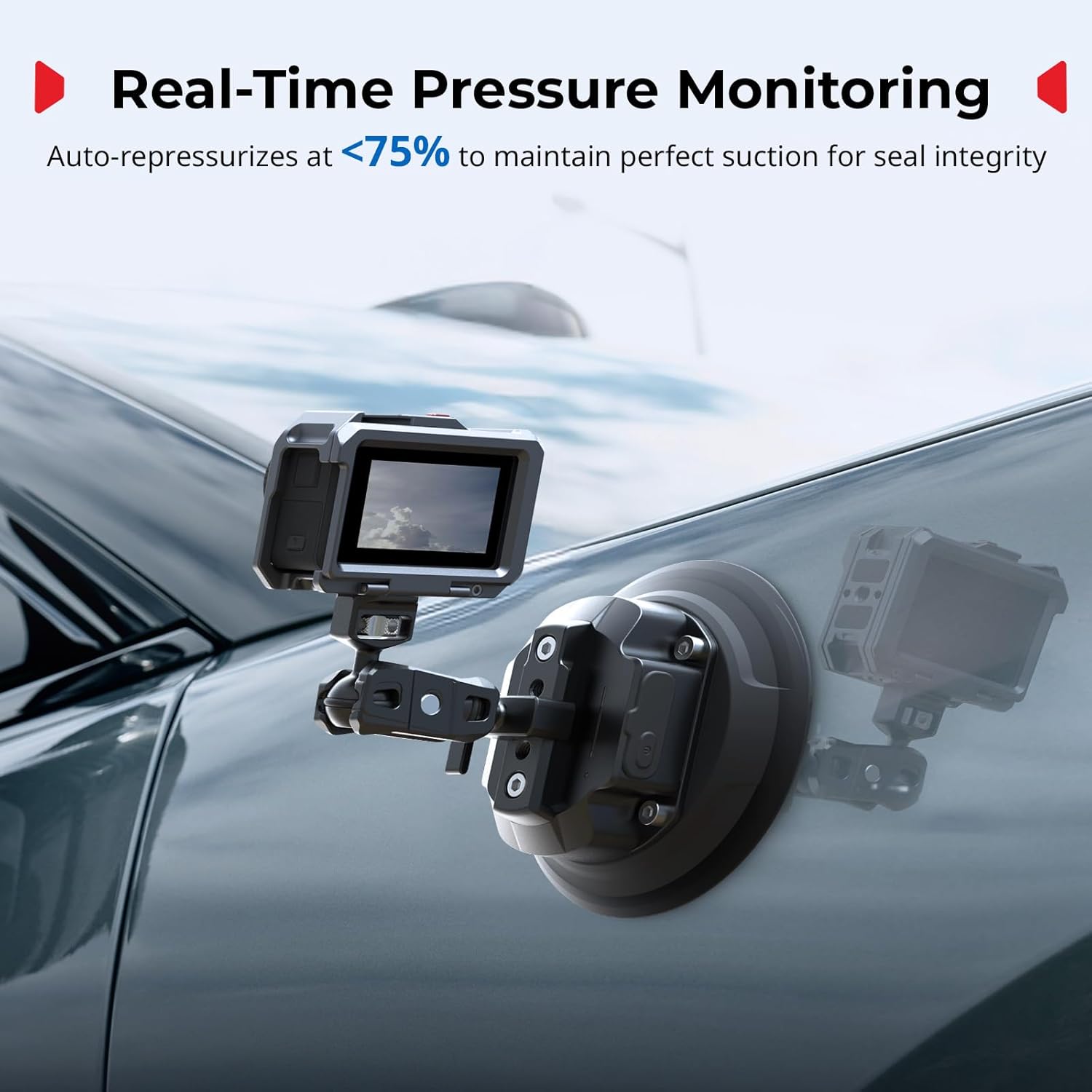

The suction cup mount features real-time pressure monitoring, automatically repressurizing when pressure drops below 75% to ensure a secure seal.

4.3 Mounting on Vehicles

When using the suction cup mount on vehicles, it is recommended to use the included safety hanging rope. Ensure the total load does not exceed 5kg (11lb) and vehicle speeds remain below 80 km/h (50 mph). Avoid uneven road surfaces.

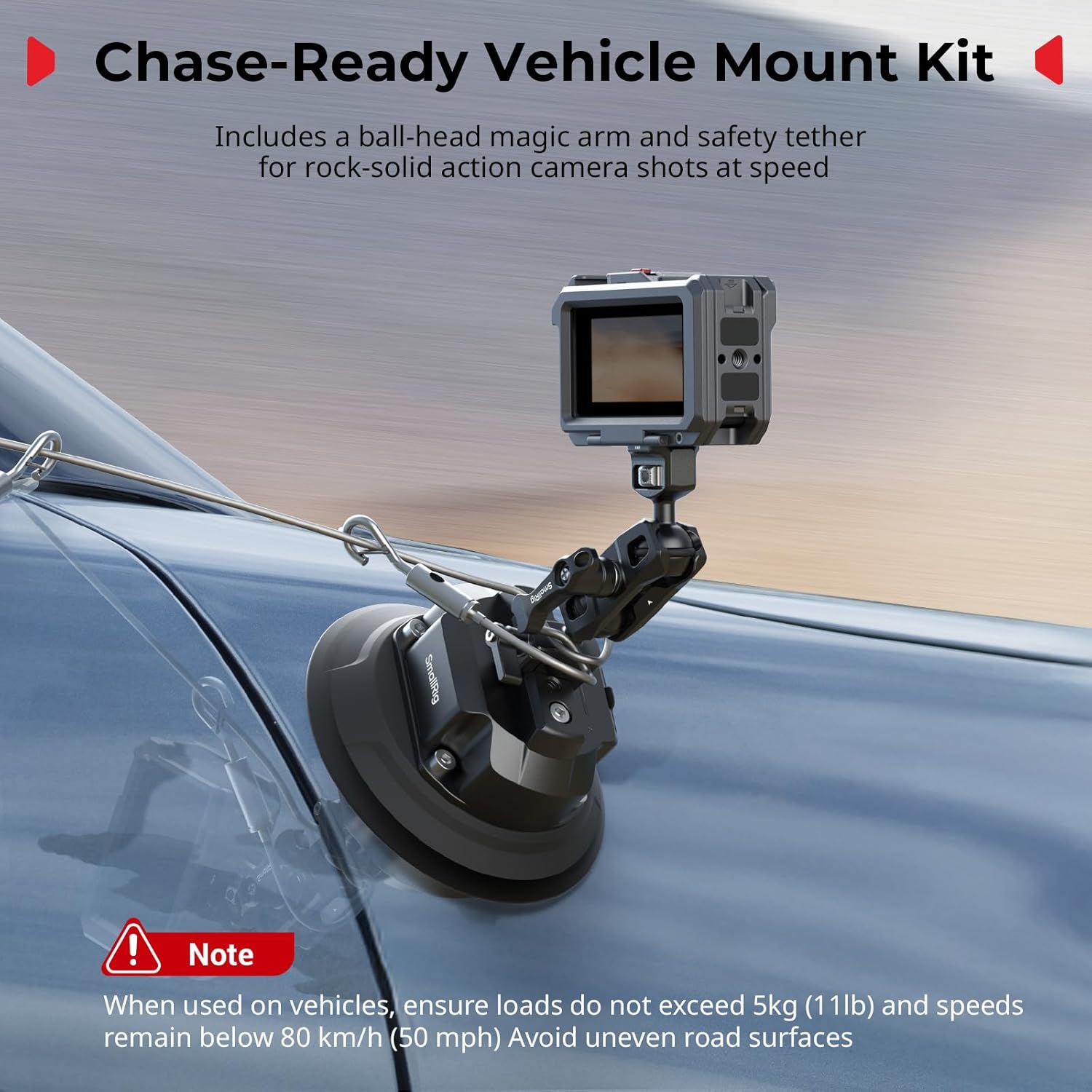

The kit includes a ball-head magic arm and a safety tether for secure camera mounting on vehicles, with recommended load and speed limits.

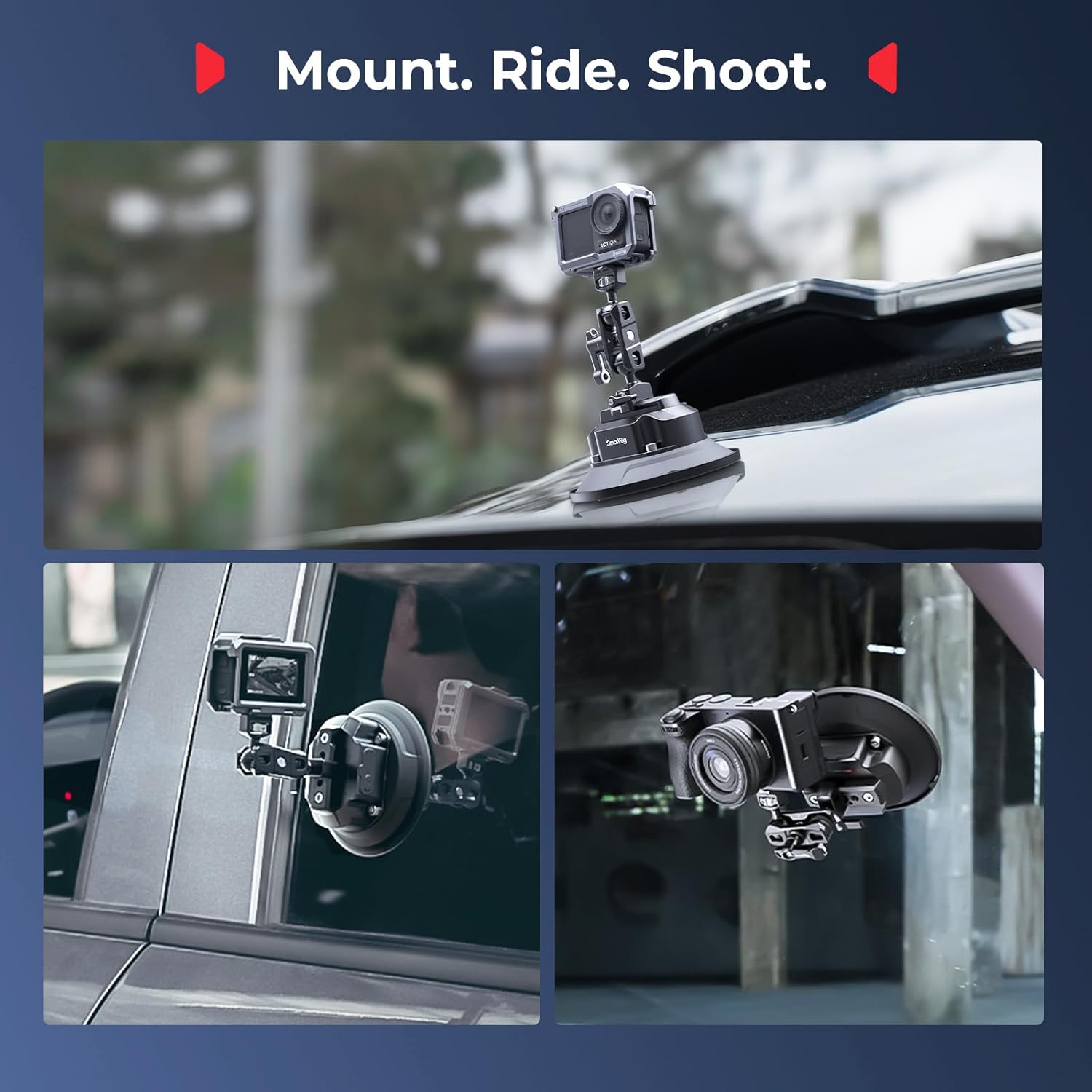

Demonstrates versatile mounting options for action cameras on various vehicle surfaces, including the hood, window, and interior.

5. Linee guida di sicurezza

• Keep the suction cup base and filter foam clean and intact. Discontinue use if compromised.
• Operate within -25°C to 60°C (-13°F to 140°F) ambient temperatures. Excessive heat may cause battery swelling, fire, or explosion.
• For cold environments, fully charge the battery at room temperature before use to maximize lifespan.
• Only suitable for use on smooth, dry, flat surfaces. Avoid rough, wet, uneven, dirty, fragile, or easily damaged surfaces.
• Exercise caution when attaching to surfaces with protective films.
• Users must verify surface compatibility and monitor adhesion status regularly (every 2 hours) during use.

6. Specifiche

7. Manutenzione

To ensure optimal performance and longevity of your SMALLRIG Electric Camera Suction Cup Mount, regularly inspect and clean the suction cup base and filter foam. Ensure they are free from dust, debris, and damage. Discontinue use if any part is compromised to prevent equipment failure.

8. Garanzia e supporto

This product is covered by a 2-year manufacturer's warranty. For support or warranty claims, please refer to the contact information provided with your purchase or visit the official SMALLRIG websito.
