Garvee Stainless Steel Utility Sink Instruction Manual

Introduzione

Thank you for choosing the Garvee Stainless Steel Utility Sink. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new utility sink. Please read these instructions thoroughly before assembly and retain them for future reference.

Informazioni sulla sicurezza

• Durante il montaggio e l'installazione, indossare sempre dispositivi di protezione individuale (DPI) adeguati, come guanti e occhiali di sicurezza.
• Assicurarsi che tutti i collegamenti siano sicuri e privi di perdite per evitare danni causati dall'acqua.
• Do not overload the sink or undershelf beyond their weight capacity.
• Keep children away from the product during assembly and operation.
• If you encounter any difficulties, consult a qualified professional.

Contenuto della confezione

Prima di iniziare il montaggio, verificare che tutti i componenti siano presenti e integri.

• Stainless Steel Sink Bowl and Drainboard Unit
• Gambe (4 pezzi)
• Sottoscaffale
• Hot and Cold Faucet
• Drain Assembly (including filter basket and pipes)
• Mounting Hardware and Tools (wrenches, screws)

Configurazione e installazione

1. Disimballaggio e ispezione

Carefully remove all components from the packaging. Inspect for any damage during transit. Report any missing or damaged parts to the retailer immediately.

2. Assemblaggio del telaio

Attach the four legs to the main sink unit using the provided hardware. Ensure all connections are tightened securely for stability. Install the undershelf at the desired height on the legs, securing it firmly.

This image illustrates the overall dimensions of the utility sink (47 inches wide, 20 inches deep, 37 inches high) and highlights its main components, including the sink bowl, legs, undershelf, faucet, and drain assembly. The sink bowl itself measures approximately 19.2 inches wide by 12.2 inches deep, with a depth of 7.6 inches.

3. Installazione del rubinetto

Mount the hot and cold faucet onto the designated hole on the sink unit. Connect the hot and cold water supply lines to the faucet inlets. Use thread seal tape on all threaded connections to prevent leaks. Tighten connections firmly but do not overtighten.

4. Drain Assembly

Install the drain assembly into the sink bowl. Ensure the rubber gaskets are correctly seated to create a watertight seal. Connect the flexible drain pipe to the drain outlet and direct it to a suitable waste disposal system. The removable filter basket should be placed inside the drain opening.

This image displays the Garvee Stainless Steel Utility Sink in a functional kitchen environment. It shows the spacious drainboard being used for food preparation, the sink bowl for washing vegetables, and the undershelf providing convenient storage for pots and pans. The integrated faucet is also visible.

Istruzioni per l'uso

1. Water Flow Control

The faucet features separate handles for hot and cold water. Turn the handles to adjust the water temperature and flow rate to your preference. The faucet head can rotate 360 degrees for versatile use.

This image focuses on the 304 stainless steel hot and cold faucet. It visually demonstrates the 360-degree rotation capability of the faucet, allowing for precise adjustment of water temperature and direction. The ceramic valve inside ensures reliable, leak-proof operation.

2. Utilizing the Sink and Drainboard

The large sink bowl is suitable for washing various items, from dishes to vegetables. The integrated drainboard provides a convenient area for drying or preparing items. The undershelf offers additional storage space for supplies.

This image provides an overhead perspective of the utility sink, highlighting its spacious drainboard and large sink bowl. A cutting board with vegetables is shown on the drainboard, demonstrating its utility for food preparation. The sink bowl is ready for washing, and the undershelf is visible below.

3. Sistema di drenaggio

The sink is equipped with a special drainage pipe and a removable filter basket. The filter basket catches food scraps and debris, preventing blockages in the drain. Regularly empty and clean the filter basket to maintain efficient drainage.

This image details several design features of the utility sink. It shows the detachable filter basket for easy debris removal, a 3.5-inch high waterproof baffle to prevent splashes, the R-angle design of the sink bowl for easier cleaning, and the components of the sewer filter system.

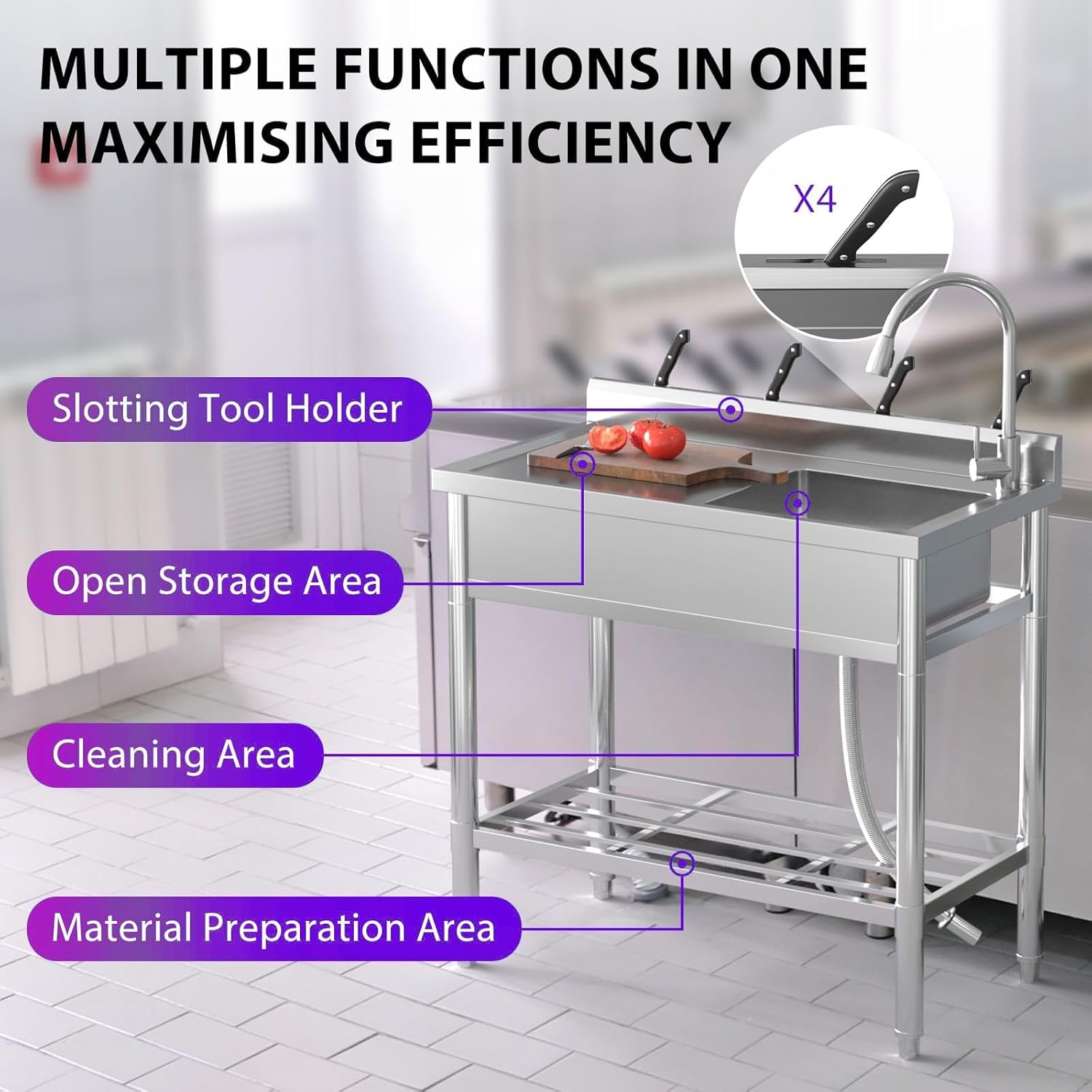

This diagram highlights the multi-functional design of the utility sink, maximizing efficiency. It points out a slotting tool holder for knives, an open storage area on the undershelf, a dedicated cleaning area within the sink bowl, and a material preparation area on the drainboard.

Manutenzione

1. Pulizia quotidiana

Clean the sink and drainboard regularly with a mild detergent and a soft cloth or sponge. Rinse thoroughly with water and dry to prevent water spots. Avoid abrasive cleaners or scouring pads that can scratch the stainless steel surface.

2. Drain Filter Maintenance

Remove and empty the filter basket daily or as needed. Wash it with soap and water to remove any accumulated debris or grease. This prevents clogs and ensures proper drainage.

3. Preventing Stains and Rust

Although made of rust-resistant 304 stainless steel, prolonged contact with highly acidic foods, harsh chemicals, or iron-containing objects can cause discoloration or surface rust. Rinse the sink immediately after contact with such substances. For stubborn stains, use a stainless steel cleaner according to the product instructions.

Risoluzione dei problemi

Specifiche

Garanzia e supporto

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact Garvee customer service through the retailer where the product was acquired. Keep your purchase receipt as proof of purchase.
