TRESKO 2.5 Ton Hydraulic Jack User Manual

1. Informazioni importanti sulla sicurezza

Read and understand all instructions and warnings before using this hydraulic jack. Failure to follow these instructions may result in property damage, personal injury, or death. Keep this manual for future reference.

• Capacità di carico massima: Never exceed the maximum load capacity of 2.5 tons (2500 kg).
• Superficie stabile: Always use the jack on a hard, level, and stable surface. Avoid uneven ground or soft surfaces.
• Utilizzare cavalletti: Never work under a vehicle supported only by a hydraulic jack. Always use appropriate jack stands to support the vehicle after lifting.
• Stabilità del veicolo: Ensure the vehicle is in park (P), the parking brake is engaged, and the wheels not being lifted are chocked to prevent movement.
• Posizionamento corretto: Position the jack only on the vehicle manufacturer's recommended lifting points. Use the provided rubber pads to prevent damage to the vehicle's chassis.
• Area libera: Durante le operazioni di sollevamento e abbassamento, tenere mani, piedi e altre parti del corpo lontani dal cric e dal veicolo.
• Perdite di fluido: If hydraulic fluid leaks, discontinue use immediately and consult a qualified technician.
• Bambini e astanti: Tenere i bambini e le persone non autorizzate lontano dall'area di lavoro.

2. Contenuto della confezione

Verifica che tutti gli articoli elencati di seguito siano presenti nel tuo pacco:

• 1x TRESKO 2.5 Ton Hydraulic Jack
• 1x Lifting Bar (handle)
• 1x Transport Case
• 2x Rubber Pads (for different vehicle types)
• 1x Knee Pad
• 1 paio di guanti da lavoro
• 1x misuratore di profondità del battistrada

Figure 1: Complete set of TRESKO 2.5 Ton Hydraulic Jack components.

Figure 2: Included safety gloves and knee pad for comfortable and safe operation.

3. Specifiche

Figure 3: Detailed dimensions of the TRESKO hydraulic jack and its components.

4. Impostazione

4.1 Assemblaggio della maniglia

1. Insert the two parts of the lifting bar (handle) together.
2. Insert the assembled handle into the handle socket on the jack. Ensure it is securely seated.

4.2 Bleeding the Hydraulic System (Initial Use)

Before first use, or if the jack has been stored for a long time, it is recommended to bleed any air from the hydraulic system:

1. Turn the release valve (located at the base of the handle socket) counter-clockwise one full turn to open it.
2. Pump the handle 10-15 full strokes to expel any air.
3. Turn the release valve clockwise until it is firmly closed.
4. Il jack è ora pronto per l'uso.

5. Istruzioni per l'uso

5.1 Preparazione

1. Parcheggiare il veicolo su una superficie dura e piana.
2. Engage the parking brake and place the transmission in 'Park' (automatic) or a low gear (manual).
3. Place wheel chocks on the wheels that will remain on the ground to prevent accidental movement.
4. Ensure the area around the vehicle is clear of obstructions and bystanders.

5.2 Sollevamento di un veicolo

1. Position the jack directly under the vehicle's designated lifting point. Refer to your vehicle's owner's manual for specific lifting points.
2. Place one of the provided rubber pads on the jack's saddle to protect the vehicle's chassis. Use the appropriate pad for your vehicle type (e.g., grooved pad for older vehicles or flat pad for modern vehicles without specific lifting points).
3. Ensure the release valve is fully closed by turning the handle clockwise.
4. Azionare la leva verso l'alto e verso il basso per sollevare il cric. Continuare a pompare finché il veicolo non raggiunge l'altezza desiderata.
5. Once the vehicle is lifted, immediately place appropriately rated jack stands under the vehicle's frame or axle, adjacent to the jack.
6. Slowly lower the vehicle onto the jack stands by gently turning the release valve counter-clockwise. Ensure the vehicle is securely resting on the jack stands before performing any work.

Figure 4: Proper positioning of the hydraulic jack under a vehicle's lifting point.

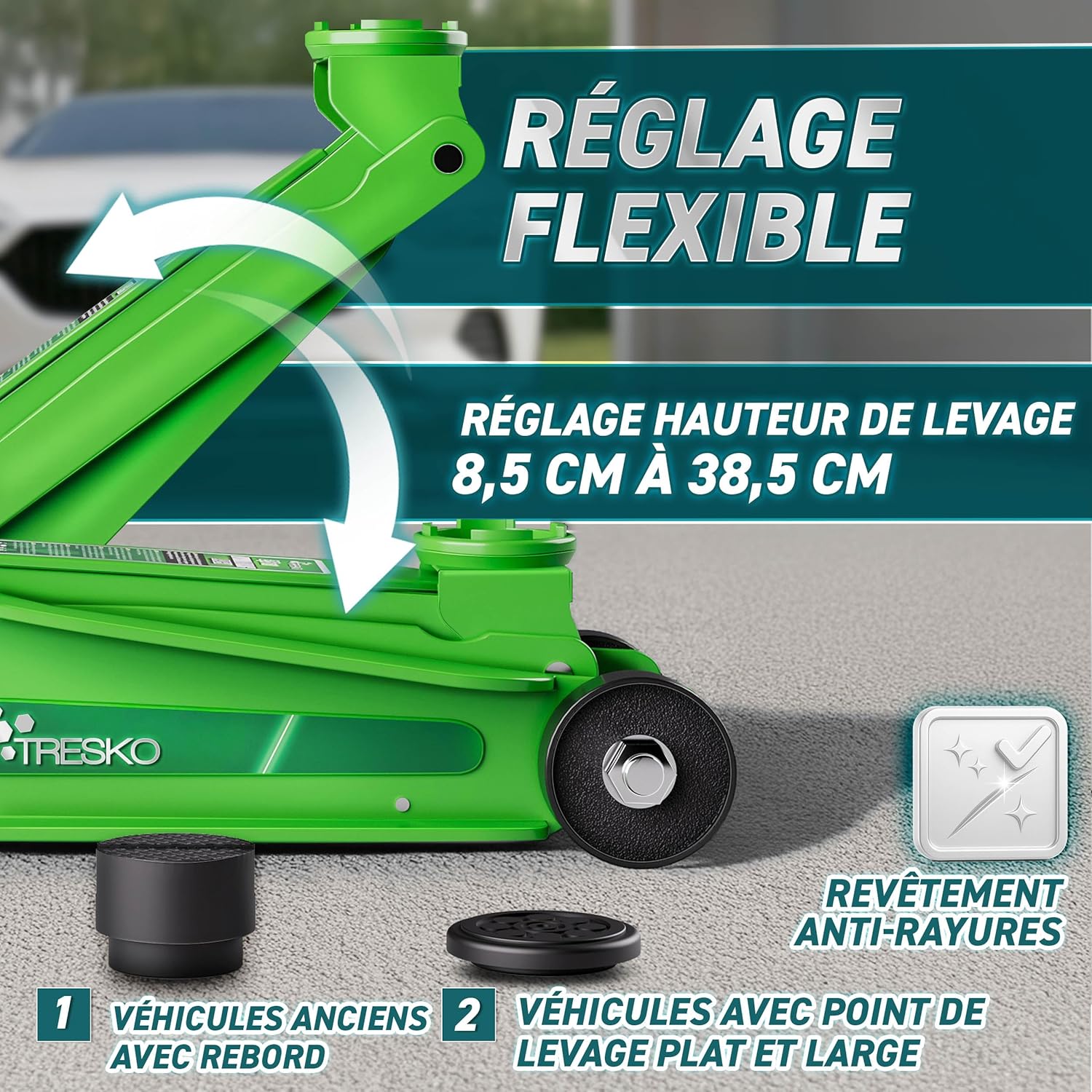

Figure 5: Flexible lifting height and use of protective rubber pads.

5.3 Abbassamento di un veicolo

1. Ensure all tools and personnel are clear from under the vehicle.
2. Raise the vehicle slightly with the hydraulic jack to remove the jack stands.
3. Rimuovere con cautela i cavalletti.
4. Slowly turn the release valve counter-clockwise to lower the vehicle in a controlled manner. Do not open the valve too quickly.
5. Once the vehicle is fully lowered, remove the hydraulic jack.

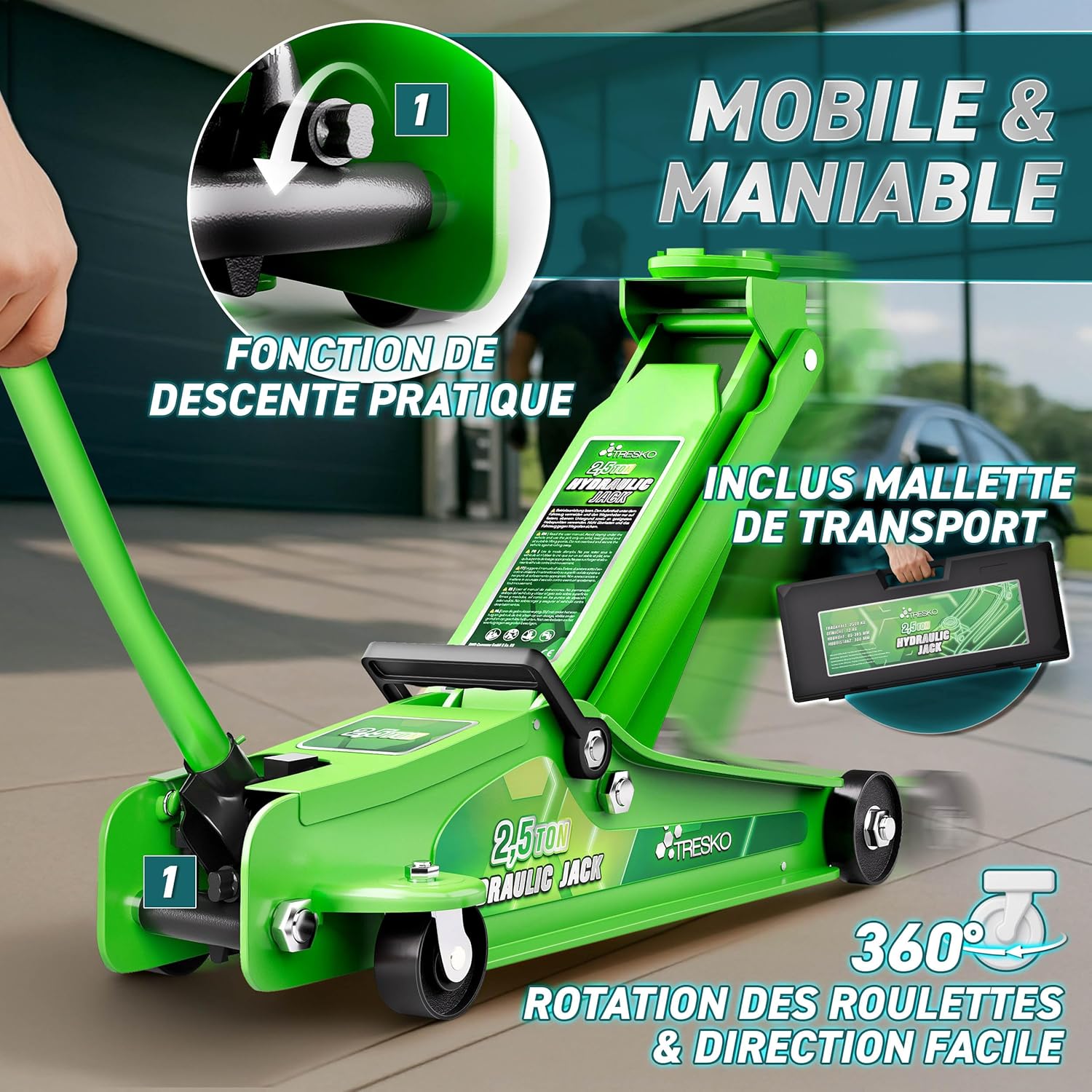

Figure 6: Controlled lowering function and maneuverability of the jack.

6. Manutenzione

6.1 Pulizia

• Regularly clean the jack with a damp cloth to remove dirt, grease, and debris.
• Do not use harsh chemicals or solvents that could damage the paint or seals.
• The jack features an anti-scratch and anti-corrosion coating for durability.

Figure 7: The jack's durable anti-corrosion coating.

6.2 Fluido idraulico

• Check the hydraulic fluid level periodically. To do this, ensure the jack is fully lowered and on a level surface.
• Remove the oil filler plug. The fluid level should be just below the filler hole.
• If necessary, top up with a high-quality hydraulic jack oil. Do not overfill.
• Never use brake fluid, alcohol, glycerin, detergent, or dirty oil, as this can damage the seals and internal components.

6.3 Conservazione

• Store the jack in its transport case in a dry, clean, and safe environment.
• Always store the jack in the fully lowered position to relieve pressure on the hydraulic system.

7. Risoluzione Dei Problemi

8. Garanzia e supporto

TRESKO products are manufactured to high-quality standards and are guaranteed against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact your retailer.

For technical assistance, spare parts, or warranty claims, please contact the seller or manufacturer directly. Ensure you have your product model number (TKWH) and proof of purchase available.

Produttore: DWD-Company GmbH & Co. KG
