Manuale di istruzioni per l'asciugacapelli e aspirapolvere per animali domestici 2 in 1 DEWINNER ZF-YC-C-04 da 3200 W

1. Introduzione

Thank you for choosing the DEWINNER ZF-YC-C-04 2-in-1 Pet Dryer and Vacuum. This device is designed to provide efficient and convenient grooming for your pets, combining powerful drying and effective vacuuming functions. Please read this manual thoroughly before operation to ensure safe and optimal performance.

2. Istruzioni di sicurezza

• Assicurarsi sempre che l'alimentazione corrisponda al volumetage specificato sull'etichetta del prodotto.
• Do not operate the device with wet hands or in wet environments to prevent electric shock.
• Tenere il dispositivo lontano dall'acqua e da altri liquidi.
• Unplug the device from the power outlet when not in use, before cleaning, or before changing accessories.
• Do not allow children or individuals with reduced physical, sensory, or mental capabilities to operate the device without supervision.
• Never block the air inlets or outlets during operation.
• Do not direct the airflow directly into your pet's eyes, ears, or sensitive areas for extended periods.
• Monitor your pet's comfort level during use. If your pet shows signs of distress, discontinue use.
• Do not use the vacuum function to suck up liquids.
• Regularly check the power cord and hose for damage. Do not use if damaged.

3. Contenuto della confezione

Si prega di verificare che tutti gli articoli siano presenti e in buone condizioni:

• DEWINNER ZF-YC-C-04 Main Unit
• Retractable Hose (2.15 meters)
• 5 Nozzles (Circular, Flat, Wide, Comb, Vacuum)
• Shower Brush
• Replaceable Filter Cotton Pad
• Manuale di istruzioni

Image: An array of accessories included with the DEWINNER pet dryer and vacuum, including a replaceable filter pad, shower brush, various nozzles (circular, flat, wide, comb), and a retractable hose.

4. Prodotto finitoview

The DEWINNER ZF-YC-C-04 features a robust design with intuitive controls for both drying and vacuuming functions.

Image: The main DEWINNER pet dryer and vacuum unit in pink, shown with the flexible hose attached and various nozzles laid out in the foreground. A golden retriever and a cat are visible in the background.

Componenti chiave:

• Unità principale: Houses the motor, controls, and filter.
• Porte di collegamento del tubo flessibile: Two ports for attaching the hose for either drying (output) or vacuuming (input).
• Interruttore di alimentazione: Accende/spegne il dispositivo.
• Quadrante di controllo della velocità: Infinitely variable adjustment for airflow speed.
• Interruttore di riscaldamento: Attiva o disattiva la funzione di riscaldamento.
• Vano filtro: Located at the air intake for easy filter replacement.

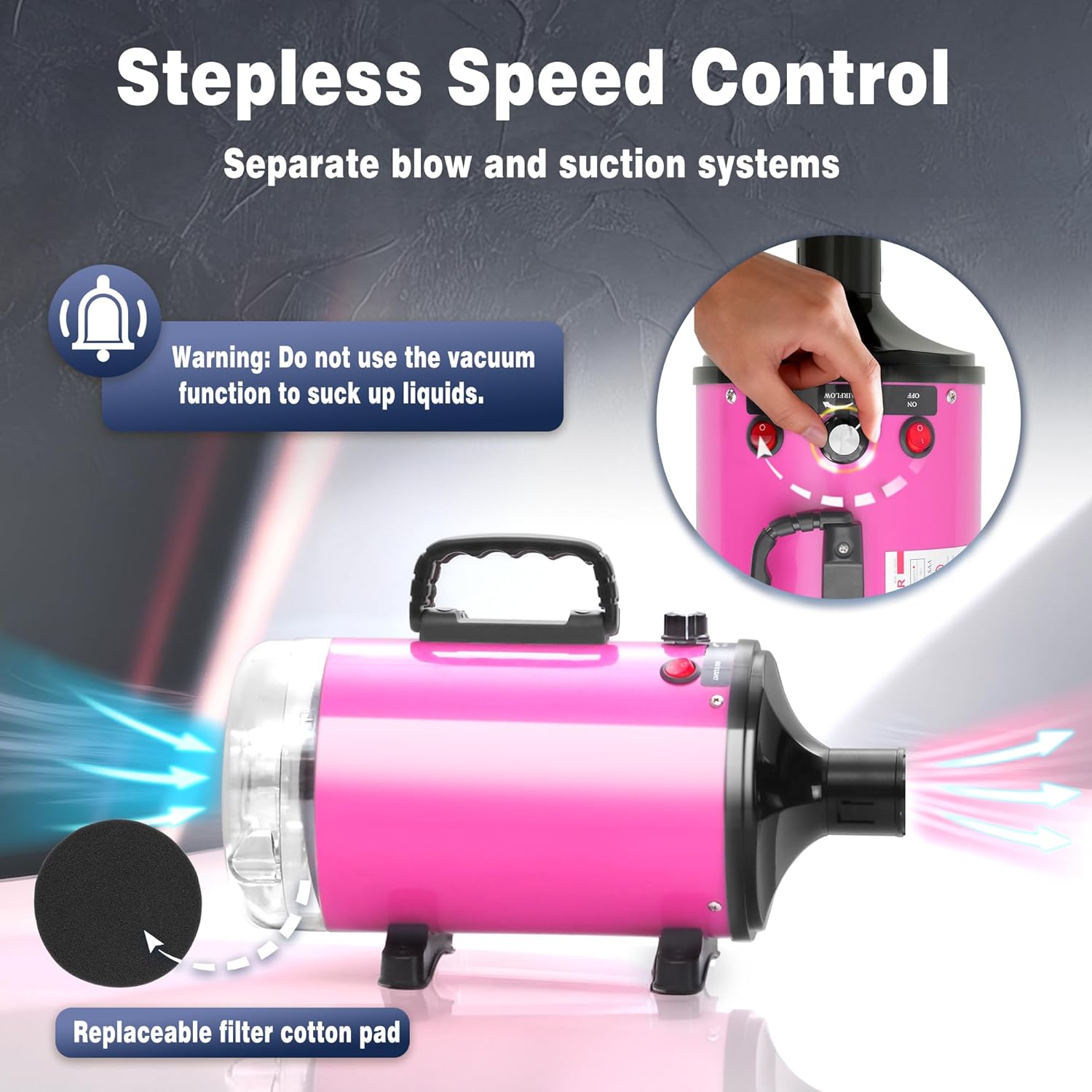

Image: Close-up of the DEWINNER pet dryer's control panel, showing the stepless speed control dial and power/heating switches. An arrow indicates the replaceable filter cotton pad.

5. Impostazione

1. Disimballare: Rimuovere con attenzione tutti i componenti dalla confezione.
2. Posizionamento: Place the main unit on a stable, flat, and dry surface. Ensure there is adequate ventilation around the device.
3. Attacco del tubo:
   • Per Funzione di asciugatura: Connect the flexible hose to the air produzione port (usually indicated by an arrow pointing outwards).
   • Per Funzione vuoto: Connect the flexible hose to the air ingresso port (usually indicated by an arrow pointing inwards).
4. Selezione dell'ugello: Choose the appropriate nozzle for your task and securely attach it to the end of the hose.
5. Collegamento elettrico: Collegare il cavo di alimentazione a una presa elettrica idonea.

6. Istruzioni per l'uso

6.1. Drying Function

1. Ensure the hose is connected to the air output port.
2. Select a suitable nozzle. The flat or wide nozzles are generally good for overall drying, while the comb nozzle can help with undercoats.
3. Accendere l'interruttore di alimentazione principale.
4. Adjust the speed control dial to a low setting initially, gradually increasing as your pet becomes comfortable.
5. If desired, switch on the heating function for warm air. Monitor the temperature to ensure it is comfortable for your pet.
6. Direct the airflow over your pet's coat, moving the nozzle continuously to prevent overheating any single area.
7. For different pet sizes and coat types, adjust speed and temperature accordingly.
   • Cats/Small Dogs: Use lower speed and minimal heat. Drying time: 8-12 minutes.
   • Medium Dogs: Moderate speed and heat. Drying time: 15-20 minutes.
   • Large Dogs/Long Coats: Higher speed and heat may be used, but always monitor. Drying time: 25-40 minutes.

Image: Illustration showing estimated drying times for cats/small dogs, medium dogs, and large dogs using the DEWINNER pet dryer, with example di ciascuno.

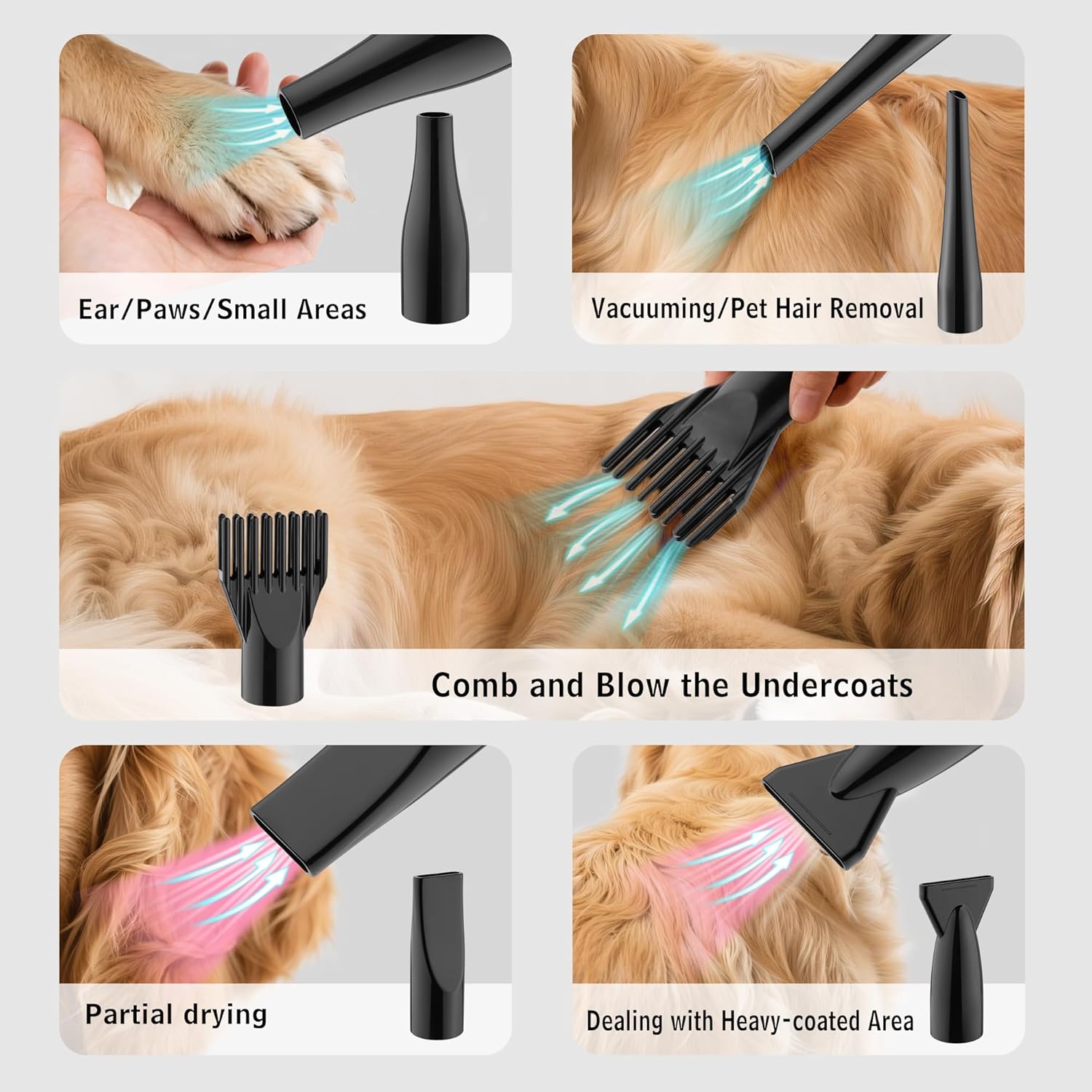

Immagine: Examples of different nozzle applications for the DEWINNER pet dryer, including drying ears/paws, partial drying, dealing with heavy-coated areas, and combing undercoats.

6.2. Funzione del vuoto

1. Ensure the hose is connected to the air ingresso porta.
2. Attach the vacuum nozzle to the end of the hose.
3. Accendere l'interruttore di alimentazione principale.
4. Adjust the speed control dial to achieve the desired suction power.
5. Gently move the vacuum nozzle over your pet's coat to remove loose hair and dander. This can also be used to clean pet hair from furniture or floors.
6. Avvertimento: Do not use the vacuum function to suck up liquids.

Image: A person using the DEWINNER pet vacuum function to remove loose hair from a golden retriever, illustrating how it helps keep shedding under control.

Image: The DEWINNER pet vacuum being used to clean pet hair from a car seat and a sofa, demonstrating its versatility for household cleaning.

7. Manutenzione

Regular maintenance ensures the longevity and optimal performance of your DEWINNER Pet Dryer and Vacuum.

• Pulizia del filtro: The filter cotton pad should be checked and cleaned regularly, especially after vacuuming. To clean, unplug the device, open the filter compartment, remove the filter, and gently brush off accumulated hair and debris. Replace the filter if it is heavily soiled or damaged.
• Cleaning the Hose and Nozzles: Detach the hose and nozzles from the main unit. Clean them with a damp cloth to remove any pet hair or residue. Ensure they are completely dry before reattaching.
• Pulizia esterna: Wipe the main unit's exterior with a soft, damp panno. Non utilizzare detergenti abrasivi né immergere l'unità in acqua.
• Magazzinaggio: Store the device in a cool, dry place, away from direct sunlight and out of reach of children and pets.

8. Risoluzione Dei Problemi

9. Specifiche

Image: Diagram illustrating the dimensions of the DEWINNER pet dryer main unit and listing key specifications such as power, voltage, frequency, wind speed, and net weight.

10. Garanzia e supporto

DEWINNER products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or contact DEWINNER customer service through the retailer where the product was purchased. Please retain your proof of purchase for warranty claims.
