1. Informazioni importanti sulla sicurezza
Please read all instructions carefully before operating the CROWNFUL Slushie Machine. Retain this manual for future reference.
- Assicurarsi che la macchina sia posizionata su una superficie stabile e piana.
- Non immergere la base del motore in acqua o altri liquidi.
- Durante il funzionamento, tenere le mani e gli utensili fuori dalla camera di miscelazione per evitare lesioni.
- Scollegare sempre la macchina prima di pulirla o quando non è in uso.
- Questo apparecchio è solo per uso residenziale.
- Ensure the sugar content of your mix is at least 4% or alcohol volume is between 2.8%–16% for optimal freezing and texture. Mixtures outside this range may not freeze correctly or could damage the machine.
2. Prodotto finitoview
The CROWNFUL Slushie Machine (Model FS208AN) is designed to create a variety of frozen treats, including slushies, soft serve, frozen cocktails, milkshakes, and frappes. It features a 101oz tank capacity with a 16oz minimum to 64oz maximum liquid fill capacity for beverages.

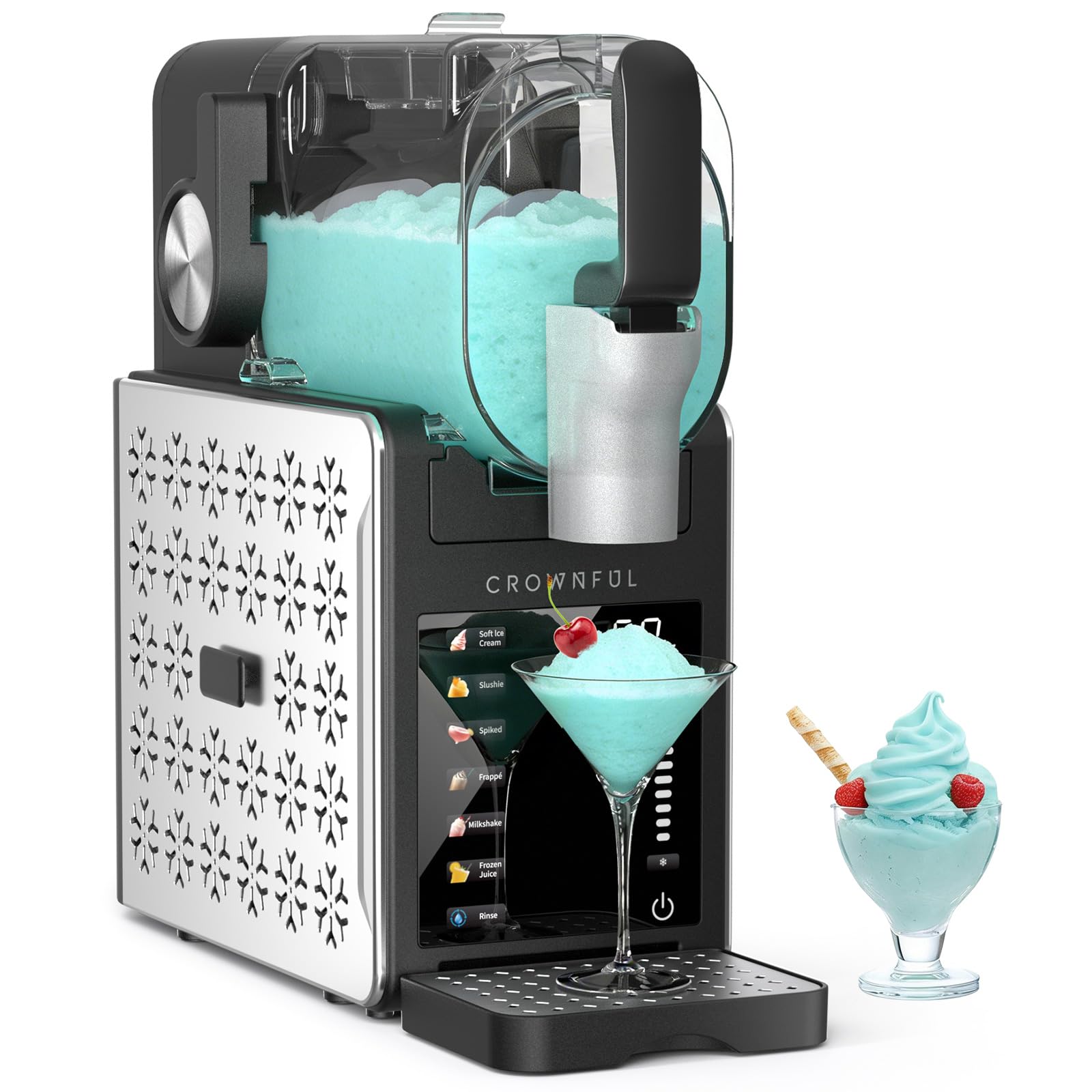

Figure 2.1: CROWNFUL Slushie Machine overview, evidenziandone le caratteristiche principali.
Figure 2.2: The compact design of the CROWNFUL Slushie Machine.
3. Installazione e assemblaggio
Disimballaggio: Rimuovere con cautela tutti i componenti dall'imballaggio. Conservare l'imballaggio per un eventuale stoccaggio o trasporto futuro.
Pulizia iniziale: Before first use, wash all detachable parts (mixing chamber, dispenser, lid) with warm soapy water. All detachable parts are dishwasher safe. Wipe the motor base with a damp panno. Assicurarsi che tutte le parti siano completamente asciutte prima del montaggio.
Montaggio: The machine features an easy-to-detach design. Align the mixing chamber with the motor base and push to secure. Ensure the dispenser is correctly attached to the front of the mixing chamber. The lid should fit snugly on top.
Figure 3.1: Detachable parts for easy assembly and cleaning.
Posizionamento: Place the assembled machine on a stable, flat, and dry surface, away from direct heat sources or excessive moisture. Ensure adequate ventilation around the unit.
4. Istruzioni per l'uso
The CROWNFUL Slushie Machine offers 6 versatile programs for various frozen treats. Always ensure the machine is plugged into a grounded outlet before use.
4.1 Funzionamento generale
Prepare your mixture: Ensure your liquid mixture meets the required sugar (at least 4%) or alcohol (2.8%–16%) content for optimal results.
Versare il liquido: Open the lid and pour your prepared liquid into the mixing chamber. Observe the MIN FILL (16oz) and MAX FILL (64oz) lines. The total tank capacity is 101oz, but the operational liquid capacity is 64oz.
Figure 4.1: Filling the mixing chamber with liquid, observing fill lines.
Seleziona programma: Use the touchpad control panel to select your desired program. The machine features one-touch start, 6 preset programs, 60s auto-lock, and live temperature monitoring.
Figure 4.2: Touchpad control panel with program selection and temperature display.
Inizia l'operazione: Press the power button to begin the freezing process. The machine will typically produce slushies in 15-30 minutes.
Dispensare: Once the desired consistency is reached, pull the dispenser handle to serve your frozen treat.
4.2 Specific Programs
Servire morbido: For soft serve ice cream, a specific recipe (heavy cream, sugar, salt, vanilla) or a professional mix is required. Do not use standard beverages for soft serve. The machine creates soft serve with no pre-freezing needed.
Figure 4.3: Soft serve being dispensed from the machine.
Video 4.1: Demonstration of the CROWNFUL Slushie Machine dispensing soft serve ice cream.
Video 4.2: Step-by-step guide on how to make soft-serve ice cream using the machine.
Granite: Simply pour in your favorite beverage and press the button. Enjoy delicious slushies in 15–30 minutes. No ice is needed as the machine handles the freezing.
Figure 4.4: Making a slushie from juice.
Video 4.3: Demonstration of the CROWNFUL Slushie Machine making a 64oz slushie.
Video 4.4: Oltreview of the CROWNFUL Slushie Machine in action.
Frozen Cocktails, Frozen Juice, Milkshakes, Frappes: These programs offer diverse options to meet various taste preferences. Refer to the included recipe booklet for specific instructions and ingredient ratios.
Figura 4.5: Esamples of frozen juice, slushie, and soft serve.
Figura 4.6: Esamples of spiked drinks, frappes, and milkshakes.
5. Manutenzione e pulizia
Regular cleaning ensures optimal performance and longevity of your CROWNFUL Slushie Machine.
5.1 Modalità di pulizia automatica
Add approximately 85oz of water to the mixing chamber.
Premere il tasto RISCIACQUO button on the control panel to activate the self-cleaning process.
Premere il tasto RISCIACQUO button again to stop the cleaning process once complete.
Figure 5.1: Automatic cleaning in progress.
5.2 Pulizia manuale
All detachable parts, including the mixing chamber and dispenser, are dishwasher safe. Do not clean with a heated dry cycle.
Figure 5.2: Detachable parts are dishwasher safe.
For the motor base, wipe it clean with a damp panno. Non immergere la base del motore in acqua.
After each use, remove any condensation to prevent buildup.
6. Risoluzione Dei Problemi
Soft Serve is too soft: If the soft serve consistency is not firm enough, try lowering the temperature setting on the control panel. Ensure the recipe used has the correct proportions of heavy cream, sugar, and salt.
Miscela non congelabile: Verify that the liquid mixture contains at least 4% sugar content or 2.8%–16% alcohol volume. Insufficient sugar or alcohol can prevent proper freezing. Also, ensure the machine is operating in the correct program mode.
La macchina non si accende: Check if the power cord is securely plugged into a functional electrical outlet. Ensure all parts are correctly assembled.
"REMOVE CONDENSATION TO CLEAN AFTER EACH USE" alert: This is a reminder to clean the machine and remove any condensation to maintain hygiene and prevent issues. Follow the cleaning instructions in Section 5.
7. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Marca | CORONA |
| Numero di modello | FS208AN |
| Capacity (Tank) | 101 once fluide |
| Capacity (Liquid Fill) | 16oz (Min) to 64oz (Max) |
| Caratteristiche speciali | Automatic Clean, Detachable Freezer, Touchpad Control |
| Materiale | Alluminio, acciaio inossidabile |
| Peso dell'articolo | 6.2 chilogrammi |
| Modalità di funzionamento | Automatico |
| Codice UPC | 850058838724 |
8. Garanzia e supporto
CROWNFUL is committed to providing excellent customer service and support for your product.
12 Months Return and Exchange: Your product is covered by a 12-month return and exchange policy.
Figure 8.1: 12 Months Return and Exchange.
Servizio clienti a vita: CROWNFUL offers lifetime customer service for your product.
Figure 8.2: Lifetime Customer Service.
Official Guidance: Access official guidance to help resolve any issues you may encounter.
Figure 8.3: Official Guidance available.
Fast Email Reply: Expect a fast response to your email inquiries within 24 hours.
Figure 8.4: 24 Hours Fast Email Reply.
For further assistance, please contact CROWNFUL customer support through their official channels.
