Panda BA2550_01 Portable Twin Tub Washing Machine

Introduzione

The Panda Portable Twin Tub Washing Machine (Model BA2550_01) is designed for compact living spaces such as apartments, dorms, RVs, or camping trips. This semi-automatic unit features a 14lbs washer and an 8lbs spin dryer, allowing for simultaneous washing and spin-drying. Its compact and lightweight design ensures easy storage and mobility.

Equipped with a powerful 1300 RPM motor, it provides efficient cleaning while being energy and water-efficient. A transparent lid allows monitoring of the laundry process. The durable 280W washing motor and 140W spin motor ensure quiet and reliable performance. A built-in drain pump facilitates water drainage to higher locations, offering greater flexibility. The adjustable inlet hose simplifies water filling.

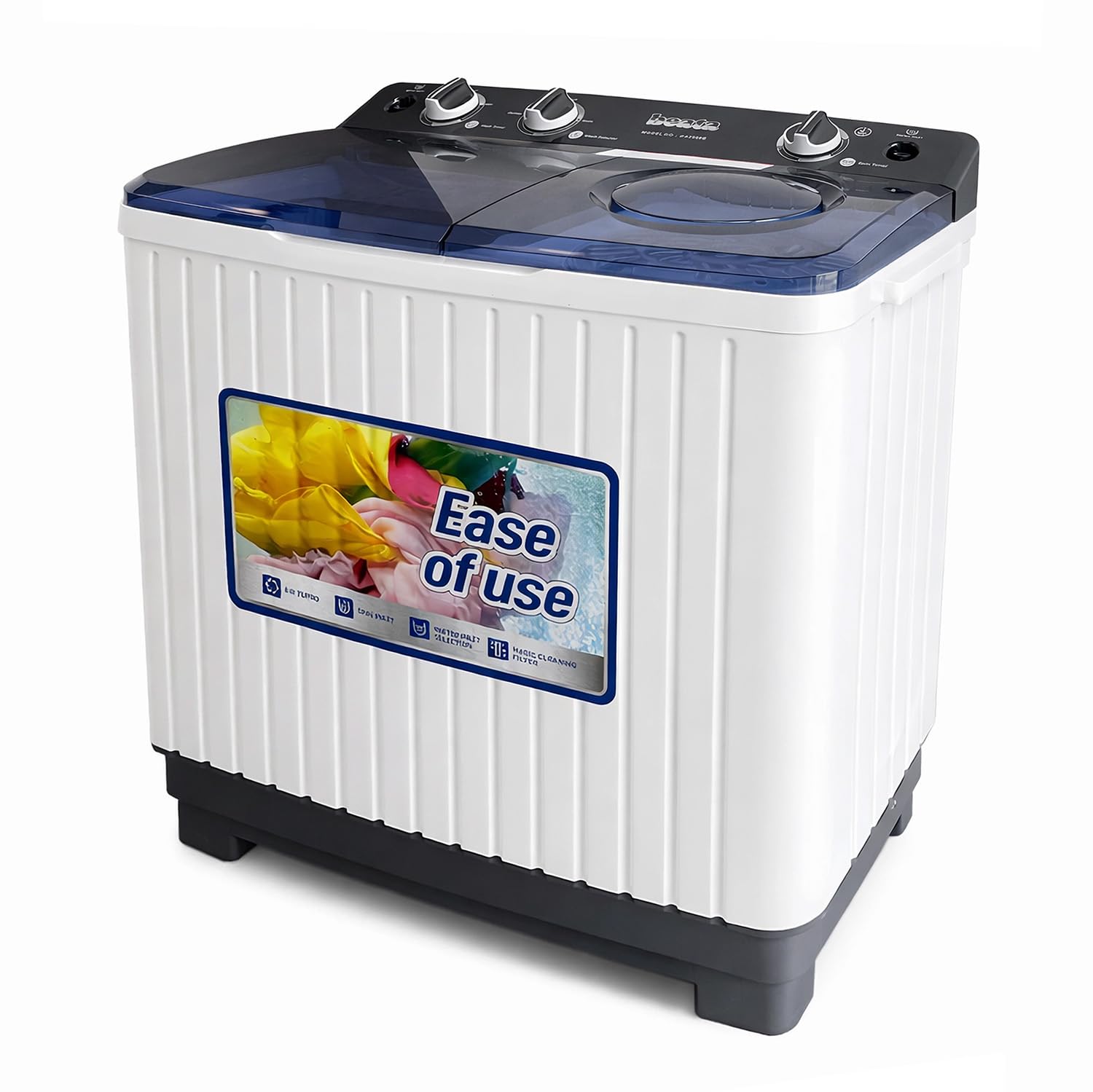

Figure 1: Panda Portable Twin Tub Washing Machine in Bluish Grey.

Impostare

1. Posizionamento: Place the washing machine on a stable, level surface. Ensure adequate space for operation and drainage.
2. Collegamento ingresso acqua: Connect the adjustable inlet hose to a water source. Ensure a secure connection to prevent leaks.
3. Configurazione del drenaggio: Position the drain hose to direct water into a suitable drainage area, such as a sink or bathtub. The built-in drain pump allows for drainage to higher locations.
4. Collegamento elettrico: Collegare il cavo di alimentazione a una presa elettrica dotata di messa a terra.

Figure 2: Drain hose connection for proper water disposal.

Istruzioni per l'uso

1. Caricare il bucato: Load clothes into the washer tub, ensuring not to exceed the 14lbs capacity. For the spin dryer, do not exceed 8lbs.
2. Aggiungi detersivo: Add appropriate detergent to the wash tub.
3. Riempire l'acqua: Fill the wash tub with water using the inlet hose. Monitor the water level through the transparent lid.
4. Imposta ciclo di lavaggio: Use the control knobs to set the desired wash time and select the wash selector (Normal/Gentle) based on fabric type.
5. Avvia lavaggio: Start the washing cycle. The machine will agitate the clothes.
6. Centrifuga: After the wash cycle, transfer clothes to the spin dryer tub for water removal. Set the spin cycle time using the control knob.
7. Completare: After spinning, clothes will be damp, significantly reducing drying time.

Figure 3: Control panel for setting wash and spin cycles.

Figure 4: Interior of the wash tub with pulsator.

Figure 5: Interior of the spin dryer tub.

Manutenzione

• Pulizia del filtro lanuggine: Regularly clean the lint filter located inside the wash tub to ensure efficient operation and prevent lint buildup.
• Pulizia esterna: Pulisci l'esterno della macchina con un panno morbido eamp panno dopo ogni utilizzo per mantenerlo pulito.
• Drain Hose Check: Ensure the drain hose is clear of obstructions and kinks to prevent blockages and ensure proper water drainage.
• Magazzinaggio: When not in use, store the machine in a dry, well-ventilated area to prolong its lifespan.

Figure 6: Lint filter for collecting debris during washing.

Risoluzione dei problemi

• La macchina non si avvia: Verificare che il cavo di alimentazione sia collegato saldamente a una presa elettrica funzionante.
• Nessun riempimento d'acqua: Verify that the inlet hose is properly connected to the water source and the water supply is turned on.
• L'acqua non scarica: Inspect the drain hose for any kinks or blockages. Ensure the drain pump is operating correctly.
• Rumore/vibrazioni eccessivi: Confirm the machine is placed on a level surface and the laundry load inside the tub is balanced.

Specifiche

Garanzia e supporto

The Panda Portable Twin Tub Washing Machine (Model BA2550_01) comes with a Garanzia del produttore di 1 anno. This warranty covers defects in materials and workmanship under normal use. For warranty claims, technical support, or any inquiries, please refer to the contact information provided in the included manual or visit the official Panda websito per ulteriore assistenza.
