Phomemo M260+ Thermal Label Printer User Manual

1. Introduzione

This manual provides detailed instructions for the safe and efficient operation of your Phomemo M260+ Thermal Label Printer. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.

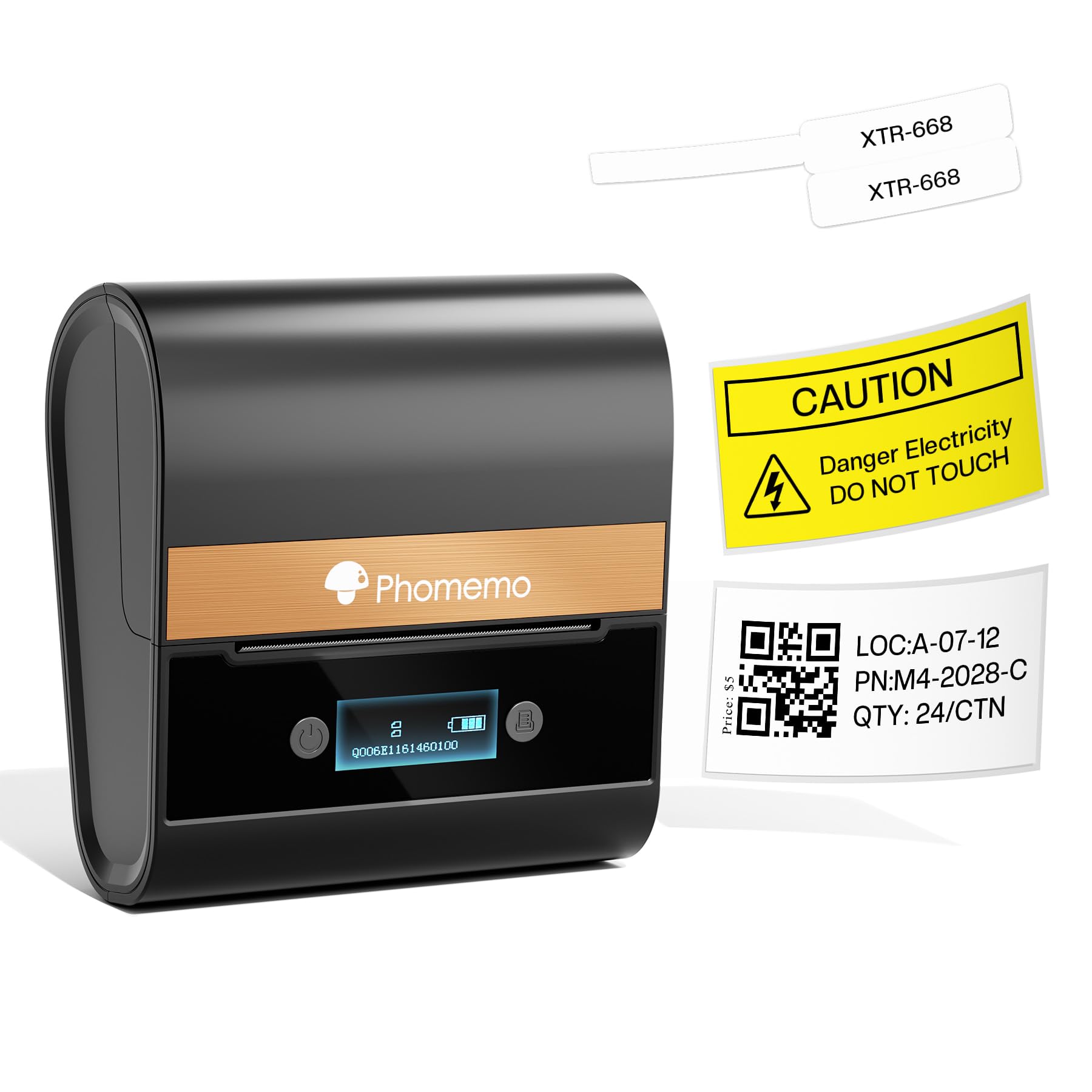

Image 1: Phomemo M260+ Thermal Label Printer.

2. Contenuto della confezione

Verificare che tutti gli articoli siano presenti nel pacco:

• Phomemo M260+ Portable Label Maker
• 1 roll of 1.57"x1.18" white consumables (label paper)
• Cavo USB x 1
• Quick Start Guide / Manual x 1

Image 2: Contents of the Phomemo M260+ package, including the printer, a roll of labels, a USB cable, and the manual.

3. Impostazione

3.1. Caricamento delle etichette

1. Open the printer cover by gently pressing the release button or sliding the latch.
2. Insert the label roll into the compartment, ensuring the labels feed out from the top and are aligned with the print head.
3. Chiudere saldamente il coperchio della stampante.
4. Ensure the label roll is properly seated and the first label is positioned correctly for printing.

Image 3: Demonstrates the correct method for loading a label roll into the Phomemo M260+ printer.

3.2. Accensione

Press and hold the power button located on the printer until the indicator light illuminates.

3.3. Installazione di software e app

The Phomemo M260+ printer can be operated via a mobile application (Print Master) or PC software (Labelife).

• Per dispositivi mobili: Download the "Print Master" app from your device's app store (iOS/Android).
• Per PC: Download the "Labelife" software and necessary drivers from the official Phomemo websito.

Immagine 4: Passoview of the Print Master app interface, showing various design and printing options.

3.4. Connessione al dispositivo

The M260+ supports both Bluetooth and USB connections.

• Connessione Bluetooth (cellulare):
  1. Assicurati che il Bluetooth sia abilitato sul tuo dispositivo mobile.
  2. Open the Print Master app and search for available devices.
  3. Select "M260" from the list to pair.
• Connessione USB (PC):
  1. Collegare la stampante al PC utilizzando il cavo USB in dotazione.
  2. Ensure the PC drivers are installed as per Section 3.3.
  3. Open the Labelife software; the printer should be recognized automatically.

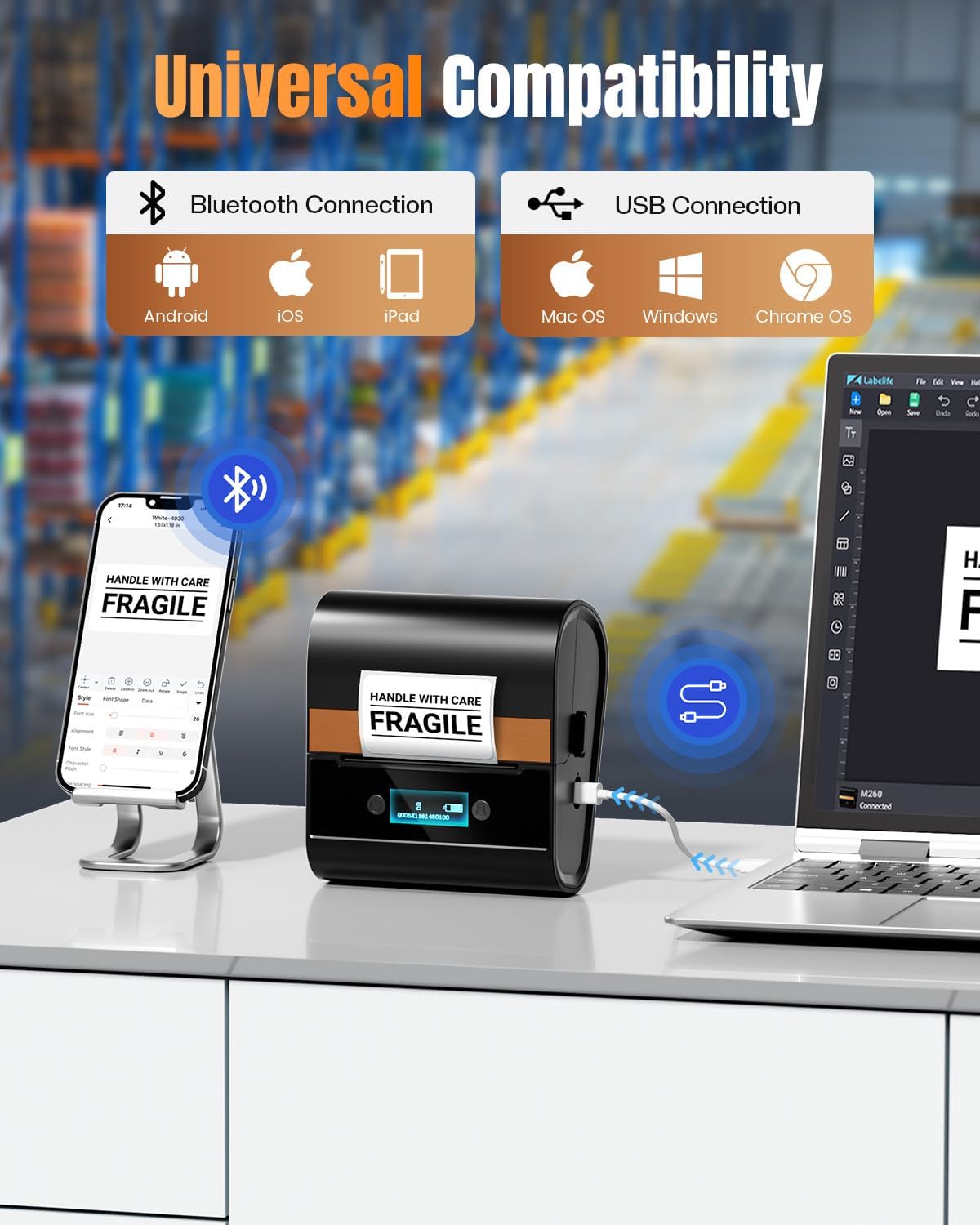

Image 5: Illustrates the Bluetooth connection process between the Phomemo M260+ printer and a mobile device.

Image 6: Shows the USB connection of the Phomemo M260+ printer to a computer.

4. Funzionamento

4.1. Creazione di etichette

Use the Print Master app or Labelife software to design your labels. Both platforms offer a variety of templates, fonts, icons, and tools for text, barcodes, and QR codes.

• Select a template or start with a blank label.
• Customize text, add images, barcodes, or QR codes.
• Adjust label size and orientation as needed.

4.2. Stampa di etichette

After designing your label, select the print option within the app or software. Confirm print settings such as the number of copies and print quality, then initiate printing.

4.3. Applicazioni delle etichette

The Phomemo M260+ is suitable for various indoor labeling needs, including:

• Identificazione di cavi e fili
• Risorsa tagging
• Small address labels
• Prezzo tags
• Note di avvertimento
• General organization labels

Immagine 7: Es.amples of different label types that can be printed with the Phomemo M260+, including barcodes and text labels.

Image 8: Illustrates various practical applications of labels created with the M260+ printer, such as safety warnings, marking, asset tracking, and cable identification.

5. Manutenzione

5.1. Pulizia della testina di stampa

Per mantenere la qualità di stampa, pulire regolarmente la testina di stampa. Utilizzare un panno morbido e privo di lanugine leggermenteampcon alcol isopropilico. Pulire delicatamente la superficie della testina di stampa. Assicurarsi che la stampante sia spenta e scollegata da qualsiasi fonte di alimentazione prima di pulirla.

5.2. Storing Labels

Store thermal labels in a cool, dry place away from direct sunlight, excessive heat, or chemical exposure to preserve their legibility and adhesive properties.

6. Risoluzione Dei Problemi

Fare riferimento ai seguenti problemi comuni e alle relative soluzioni:

Q: How is the print quality and durability of the labels printed by the M260 label printer?

A: The Phomemo thermal printer is equipped with a 203 DPI printhead, which ensures crisp, smudge-free text and scannable barcodes. Regarding durability, thermal labels are designed for INDOOR applications and typically remain legible for 6 to 12 months under normal conditions (away from direct sunlight, excessive heat, or chemical exposure).

Q: What label widths is this printer compatible with? Do I have to use proprietary label rolls?

A: This printer supports a versatile label width range from 1 inch (25.4 mm) up to 3.03 inches (77 mm). It prints in black and white. It is fully compatible with a variety of colored direct thermal rolls and different shape labels from Phomemo.

Q: Does this printer require special software or an app to use? Are there ready-to-use templates available for different labels like cable flags and round stickers?

A: Yes, to unlock the full potential of this printer, you will need to use the APP - Print Master (available on iOS App Store/Google Play) OR Labelife (PC software). The platform has a rich library of professional templates. Easily find and customize specific templates for cable flag labels, round asset dots, and more.

Q: What connectivity options does it offer (USB, Bluetooth)? How well does it work with Windows, Mac, or mobile apps? Is the driver setup complicated?

A: Connect via Bluetooth. Install the driver and software using our simple installer (Windows/Mac USB cable is needed) from Labelife.net, OR download the "Print Master" app for mobile/tablets. Setup takes just minutes.

7. Specifiche

8. Garanzia e supporto

The Phomemo M260+ Thermal Label Printer comes with a Garanzia di 1 anno from the date of purchase. For technical assistance, troubleshooting, or warranty claims, please contact Phomemo customer support through their official websito o le informazioni di contatto fornite nella Guida rapida.
