BLACK+DECKER 4-Burner Induction Cooktop with Power Booster - Model BXICHCPB4B User Manual

1. Introduzione

Thank you for choosing the BLACK+DECKER 4-Burner Induction Cooktop. This appliance is designed to provide efficient, safe, and modern cooking experience. This manual contains important information regarding the installation, operation, and maintenance of your cooktop. Please read it thoroughly before use and keep it for future reference.

This built-in induction cooktop features 4 cooking zones, a digital display, a ceramic glass surface, and a safety lock. With a total power of 7200W and operating at 220V, it ensures fast and uniform cooking.

2. Informazioni sulla sicurezza

Always prioritize safety when operating electrical appliances. Induction cooktops generate heat directly in the cookware, keeping the cooktop surface cooler than traditional stoves, which reduces the risk of burns. However, residual heat may still be present after cooking.

• Blocco di sicurezza per bambini: The cooktop is equipped with a safety lock function to prevent accidental operation by children.
• Indicatore di calore residuo: An indicator light will signal if a cooking zone is still hot after use. Avoid touching the surface until the indicator turns off.
• Pentole adeguate: Use only induction-compatible cookware. Incompatible pots will not heat up.
• Ventilazione: Ensure adequate ventilation around the cooktop during and after use.
• Collegamento elettrico: Ensure the cooktop is connected to a properly grounded 220V electrical outlet with appropriate circuit protection.

3. Caratteristiche del prodotto

• Tecnologia a induzione: Provides fast and precise heating with total temperature control.
• Funzione di potenziamento della potenza: Temporarily increases power for faster cooking, ideal for quick preparations.
• Display digitale: Pannello di controllo touch intuitivo per un facile utilizzo.
• Superficie in vetroceramica: Elegant black design, easy to clean, and resistant.
• 4 zone di cottura: Two 2100W zones and two 1500W zones to accommodate various cooking needs.
• 9 livelli di potenza: Offers precise control over cooking intensity.
• Funzione timer: Allows setting cooking times for each zone, with automatic shut-off.
• Blocco di sicurezza: Impedisce modifiche indesiderate alle impostazioni o attivazioni accidentali.
• Rilevamento automatico della panoramica: The cooktop only heats when compatible cookware is placed on a zone.

4. Installazione

The BLACK+DECKER Induction Cooktop is designed for built-in installation. Professional installation is recommended to ensure proper electrical connection and fit.

• Dimensioni del prodotto (LxLxA): 59 cm x 52 cm x 4.5 cm (23.2 pollici x 20.5 pollici x 1.8 pollici)
• Cut-out Dimensions (LxWxH): 56 cm x 49 cm x 5.5 cm (22.0 pollici x 19.3 pollici x 2.2 pollici)
• Assicurare uno spazio sufficiente per la ventilazione attorno all'apparecchio.
• Connect the cooktop to a dedicated 220V, 7200W electrical circuit.

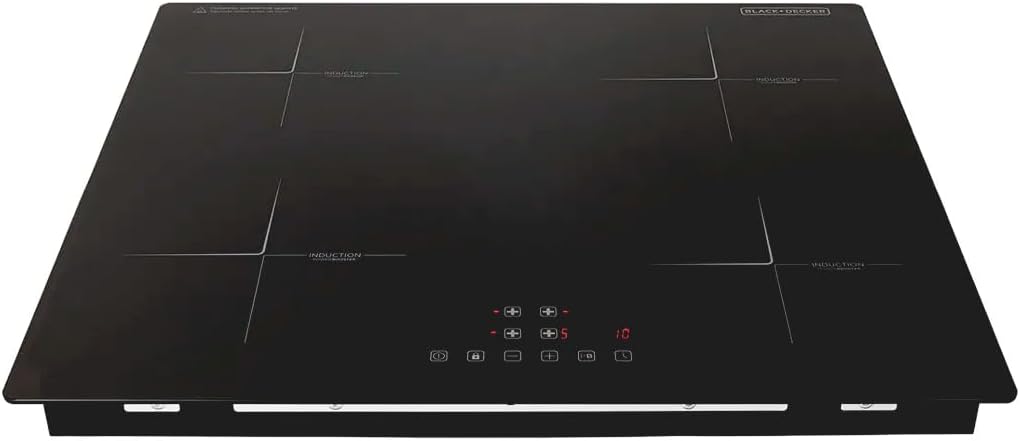

Figura 1: Dall'alto verso il basso view of the BLACK+DECKER 4-burner induction cooktop.

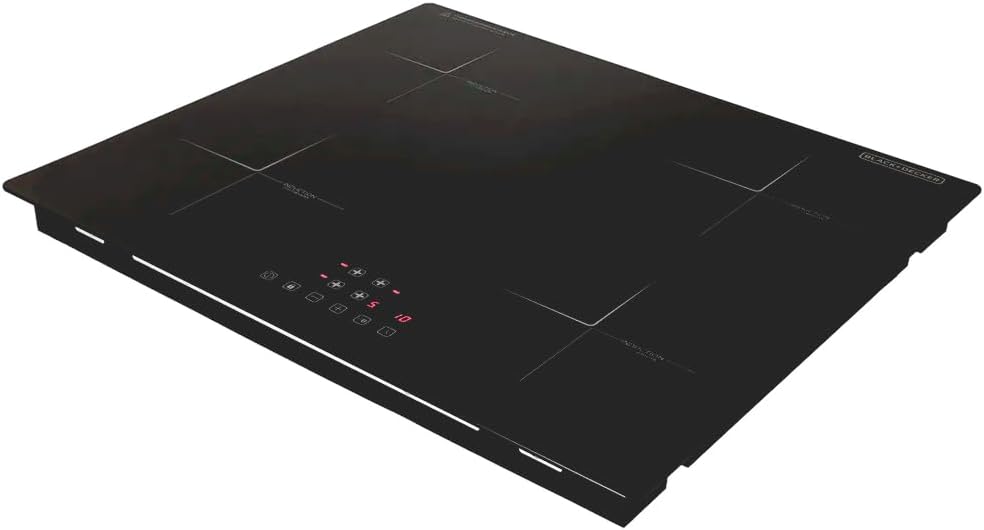

Figura 2: lato view of the cooktop, highlighting its built-in design.

Figura 3: parte inferiore view of the cooktop, illustrating components for installation.

5. Funzionamento

The cooktop features a touch-sensitive control panel. To operate, ensure the cooktop is powered on and compatible cookware is placed on the desired cooking zone.

1. Accensione/spegnimento: Toccare il simbolo di accensione per accendere o spegnere il piano cottura.
2. Seleziona la zona di cottura: Touch the corresponding zone indicator to activate it.
3. Regola il livello di potenza: Use the '+' and '-' buttons or the slide control to select one of the 9 power levels.
4. Amplificatore di potenza: Activate the Power Booster function for rapid heating. This function provides maximum power for a limited time.
5. Timer: Set a cooking duration using the timer function. The zone will automatically turn off once the time expires.
6. Funzione Pausa: Use the play/pause button to temporarily stop cooking and resume later with the same settings.
7. Blocco di sicurezza: Activate the safety lock to prevent accidental changes to settings.

Figure 4: Digital control panel with various functions including power, timer, and safety lock.

6. Pentole compatibili

Induction cooktops require specific types of cookware. The base of the pot or pan must be made of a ferromagnetic material (magnetic) to allow the induction field to generate heat. The base should also be flat for optimal contact and efficiency.

• Materiali compatibili: Ghisa, ferro smaltato e acciaio inossidabile con base magnetica.
• Materiali incompatibili: Aluminum, copper, glass, ceramic, and non-magnetic stainless steel.
• Base per pentole: The base of the cookware should be flat and cover a significant portion of the cooking zone for efficient heating.
• Magnet Test: To check if your cookware is compatible, place a magnet on its base. If the magnet sticks, the cookware is suitable for induction.

Figura 5: Esamples of induction-compatible cookware.

7. Pulizia e manutenzione

The ceramic glass surface of your cooktop is easy to clean, ensuring hygiene and maintaining its elegant appearance.

• Prima di pulirlo, assicurarsi sempre che il piano cottura sia freddo.
• Per la pulizia quotidiana utilizzare un panno morbido o una spugna con un detergente delicato.
• For stubborn stains, use a specialized ceramic cooktop cleaner and a non-abrasive scraper.
• Evitare detergenti abrasivi, pagliette o prodotti chimici aggressivi che possono graffiare o danneggiare la superficie.
• Asciugare con un panno pulito per evitare macchie d'acqua.

8. Risoluzione Dei Problemi

If you encounter any issues with your cooktop, refer to the following common troubleshooting tips:

• Il piano cottura non si accende: Check if the appliance is properly plugged in and if there is power to the outlet. Ensure the safety lock is not activated.
• La zona di cottura non si riscalda: Verify that the cookware is induction-compatible and correctly positioned on the zone. The pan detection system will not activate if the pot is unsuitable or too small.
• Codici di errore sul display: Consult the full product manual for specific error code meanings and solutions.
• Rumori insoliti: A slight humming or buzzing sound is normal during induction cooking, especially at higher power settings, due to the magnetic field.

If the problem persists, contact BLACK+DECKER customer support or a qualified technician.

9. Specifiche

10. Garanzia e supporto

Your BLACK+DECKER Induction Cooktop comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical assistance, spare parts, or any questions not covered in this manual, please contact BLACK+DECKER customer support. Keep your purchase receipt and model number (BXICHCPB4B) handy when contacting support.
