Erdoru OPT13 Smart Toilet with Bidet Instruction Manual

1. Introduzione

Thank you for choosing the Erdoru OPT13 Smart Toilet with Bidet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new smart toilet. Please read it thoroughly before use and retain it for future reference.

2. Informazioni sulla sicurezza

Always follow basic safety precautions when using electrical appliances. This smart toilet is designed for indoor use only. Ensure proper grounding and avoid exposing the unit to excessive moisture. Do not attempt to repair the unit yourself; contact qualified service personnel. Keep children and pets away from the toilet during operation of automatic features.

3. Prodotto finitoview e componenti

The Erdoru OPT13 Smart Toilet is a compact, one-piece unit featuring a built-in bidet, heated seat, warm water sprayer, dryer, blue night light, and multiple auto-flush options. It is specifically designed for small bathrooms and compact spaces.

Componenti inclusi:

• Erdoru OPT13 Smart Toilet Unit
• Telecomando
• Kit di accessori di montaggio
• Flangia di tenuta
• Manuale di installazione
• Batterie AAA (per il telecomando)
• Valvola
• Anello di cera

4. Configurazione e installazione

Proper installation is crucial for the optimal performance and longevity of your smart toilet. It is recommended to have a professional plumber perform the installation. Ensure your bathroom meets the required dimensions and plumbing specifications.

4.1 Controlli pre-installazione

• Verify product dimensions: 22.83"D x 15.16"W x 18.11"H.
• Ensure the distance from your wall to the center of your mounting flange is a full 12 inches.
• Confirm your water supply line is at least 8 inches away (side to side) from the center of the mounting flange.

4.2 Passaggi di installazione

Refer to the included Installation Manual for detailed, step-by-step instructions. The process generally involves:

1. Preparing the floor drain and mounting area.
2. Installing the PVC flange ring and securing it.
3. Applying installation adhesive to the toilet base.
4. Carefully positioning and installing the toilet unit over the flange.
5. Connecting the water supply line to the toilet's three-way adapter and angle valve.
6. Connecting the spare battery and plugging the toilet into a power outlet.

5. Istruzioni per l'uso

Your Erdoru OPT13 Smart Toilet offers a range of intelligent features for enhanced comfort and hygiene. These can be controlled via the remote control, foot sensor, or side buttons.

5.1 Accensione iniziale

Upon first plugging in the toilet, it will perform an automatic system check. Once complete, it is ready for use.

5.2 Funzioni del telecomando

The wireless remote control provides full access to all smart features. Ensure batteries are installed correctly. If the remote does not respond, refer to the 'Remote Control Code' section in the included instruction booklet for pairing instructions.

• Lid Open/Close: Automatically opens when approached or can be controlled via remote.
• Risciacquo: Options for Full Flush, Half Flush, Auto-Flush (after use), Foot Sensor Flush, Side Button Flush, and Remote Operation.
• Modalità di pulizia: Features Feminine Care, Buttocks Cleaning, Children Clean, and Water Mist cleaning modes. Nozzle position and water pressure are adjustable.

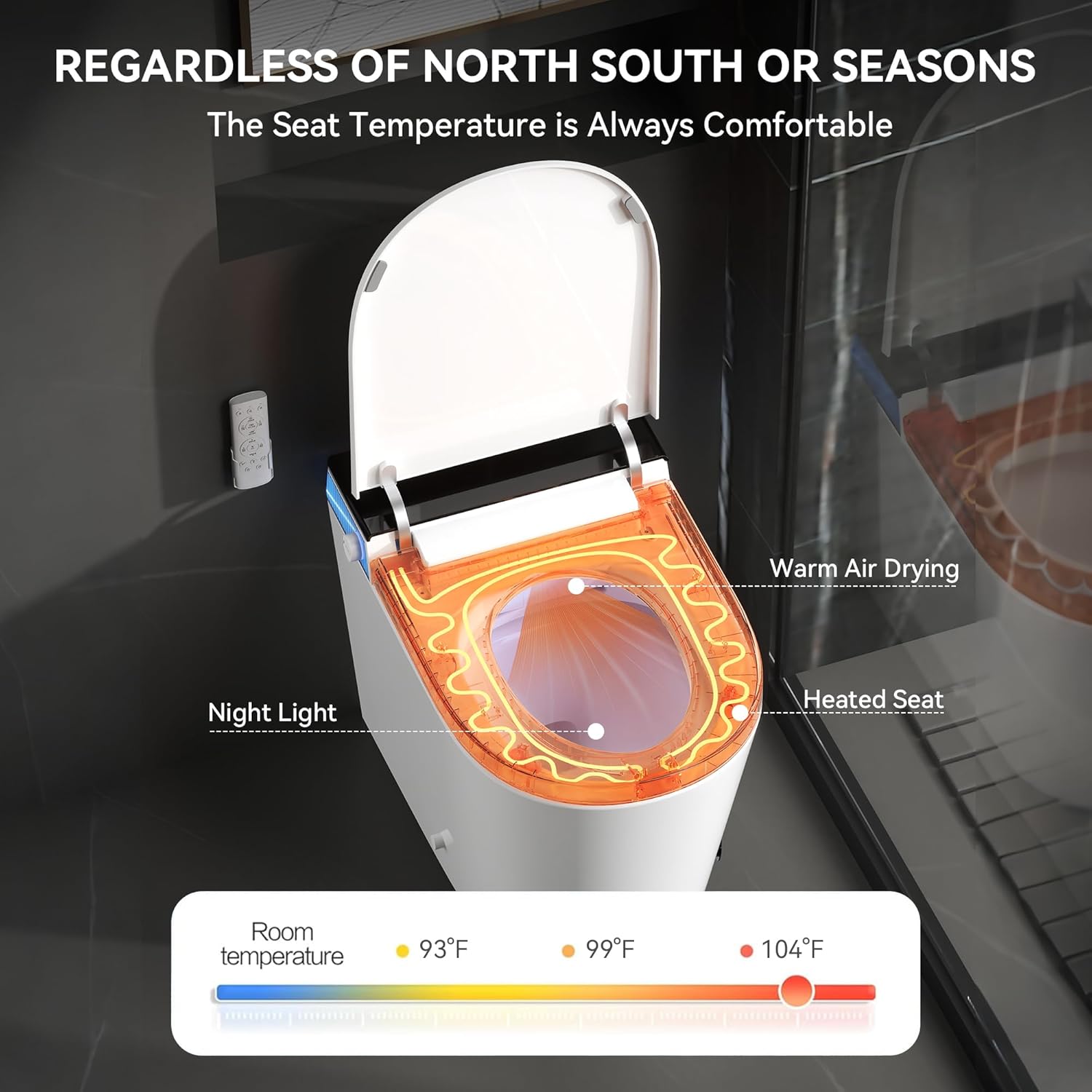

• Sedile riscaldato: Impostazioni di temperatura regolabili per il massimo comfort.
• Essiccatore ad aria calda: Adjustable temperature for quick drying.
• Luce notturna: Blue soft night light provides guidance in the dark. Can be turned on/off via remote.
• Display a LED: Shows current water and seat temperatures.

5.3 Funzionalità automatiche

• Apertura automatica del coperchio: The lid automatically opens when a user approaches the toilet. This feature can be disabled if not desired.
• Scarico del sensore del piede: A sensor on the side of the toilet allows for hands-free flushing by placing your foot over it.
• Foam Pre-Rinse: Before use, a foam layer can be dispensed to wet the bowl walls, aiding in cleanliness.

6. Manutenzione

Una manutenzione regolare garantisce la longevità e il funzionamento igienico del tuo WC intelligente.

• Autopulizia degli ugelli: The bidet nozzle performs an automatic self-cleaning cycle before and after each use.
• Manual Nozzle Cleaning: The nozzle is detachable for manual cleaning with a brush, ensuring thorough hygiene.
• Foam Cleaner/Detergent: The removable panel at the back of the toilet houses a foam cleaner reservoir. You can refill it with effervescent tablets or a few drops of dish soap.
• Filtro per l'acqua: The back panel also provides access to the water filter, which should be checked and replaced as per the maintenance schedule in the full manual.

7. Risoluzione Dei Problemi

In caso di problemi, consultare i seguenti suggerimenti comuni per la risoluzione dei problemi:

• Il telecomando non risponde: If the remote control does not respond the first time you use it, you will need to code the remote control to the toilet. First, press the TESE button on the plug to turn off the power, then press the RESET button on the plug to turn on the power. Within 5 seconds after turning on the power, press the buttock cleaning button on the right side of the toilet. After hearing a (Di), immediately press any button on the remote control, and once again, you will hear a (Di), which means that the remote control has been paired successfully.
• potere fuoritage: The toilet maintains full function during power outages via a manual side knob and a backup battery for flushing.
• Water Connection Issues: Some users have reported needing specific fittings for their supply lines. Consult a plumber if standard connections do not fit.

8. Specifiche

9. Garanzia e supporto

For any questions, issues, or warranty claims, please contact customer service. Be sure to include your Order ID for faster service.

• Email del servizio clienti: customerservice@hkfoam.com
• Tempo di risposta: Entro 24 ore
