Manuale utente del purificatore d'aria per animali domestici Oneisall PP02

1. Introduzione

This manual provides instructions for the safe and efficient operation, maintenance, and troubleshooting of your oneisall PP02 Pet Air Purifier. This device is designed to improve indoor air quality by capturing pet hair, dander, and odors, utilizing a multi-layer filtration system.

2. Importanti istruzioni di sicurezza

Please read and save these safety instructions before operating the air purifier to reduce the risk of fire, electric shock, or injury.

• Scollegare sempre il purificatore d'aria prima di spostarlo, pulirlo o eseguirne la manutenzione.
• Non utilizzare l'unità se il cavo di alimentazione o la spina sono danneggiati.
• Tenere il purificatore d'aria lontano dall'acqua o da zone umide.
• Non inserire dita o oggetti estranei nelle prese d'aria o nelle uscite.
• Assicurarsi che le prese d'aria e le uscite non siano bloccate.
• Use only genuine oneisall replacement filters.
• Questo apparecchio non è destinato all'uso da parte di persone (bambini compresi) con ridotte capacità fisiche, sensoriali o mentali, o prive di esperienza e conoscenza, a meno che non siano supervisionate o abbiano ricevuto istruzioni riguardanti l'uso dell'apparecchio da una persona responsabile della loro sicurezza.

3. Contenuto della confezione

Verificare che tutti gli articoli siano presenti nel pacco:

• Purificatore d'aria per animali domestici Oneisall PP02
• HEPA Filter (Pre-installed)
• Spazzola per la pulizia
• Manuale d'uso

4. Prodotto finitoview

The oneisall PP02 Pet Air Purifier features dual-sided air intakes and a multi-stage filtration system to effectively capture pet hair, dander, and odors.

Figura 4.1: Esploso view of the oneisall PP02 Pet Air Purifier, illustrating the dual-side air inlets and the internal multi-layer filtration system. This design allows for efficient capture of pet fur and airborne particles.

Componenti chiave:

• Pannello di controllo: Located on the top, with a digital display for air quality and fan speed.
• Doppie prese d'aria: Located on the sides, designed to maximize pet hair capture.
• Uscita aria: Located on the top for purified air release.
• Pre filtro: Cattura particelle di grandi dimensioni come peli di animali e polvere.
• Filtro HEPA: Captures fine particles such as dander and allergens.
• Filtro a carbone attivo: Absorbs odors from pets, cooking, and other sources.

5. Installazione e posizionamento

1. Disimballare: Estrarre con cautela il purificatore d'aria dalla confezione.
2. Installazione del filtro: The HEPA filter is typically pre-installed. Open the filter compartment (refer to Figure 4.1 for location) and ensure all packaging materials are removed from the filter before use. Close the compartment securely.
3. Posizionamento: Place the air purifier on a firm, level surface. Ensure there is at least 15 cm (6 inches) of space around all sides for optimal airflow. Avoid placing it directly against walls or furniture.
4. Collegamento elettrico: Collegare il cavo di alimentazione a una presa elettrica standard.

Figura 5.1: The oneisall PP02 Pet Air Purifier positioned in a living room, demonstrating its ability to purify air in open-plan spaces. The unit is designed for efficient air circulation.

6. Istruzioni per l'uso

The oneisall PP02 features intelligent controls for ease of use.

1. Accensione/spegnimento: Premere il pulsante di accensione sul pannello di controllo per accendere o spegnere l'unità.
2. Regolazione della velocità della ventola: Cycle through available fan speeds (e.g., Low, Medium, High) by pressing the Fan Speed button.
3. Modalità automatica: Activate Auto Mode by pressing the Auto button. In this mode, smart sensors monitor air quality in real-time and automatically adjust the fan speed based on detected pollutants (pets, odors, cooking fumes). When air quality improves, the unit shifts to a quieter mode.
4. Modalità risparmio: Select Sleep Mode for quiet operation during rest periods. The display lights may dim or turn off.
5. Funzione timer: Use the Timer button to set the operating duration (e.g., 2H, 4H, 8H). The unit will automatically turn off after the set time.

Figura 6.1: The control panel of the oneisall PP02 Pet Air Purifier, showing the real-time air quality indicator (PM2.5) and current fan speed. The display changes color to indicate air quality status (Good, Fair, Poor).

Figura 6.2: The oneisall PP02 Pet Air Purifier operating in a bedroom, highlighting its quiet operation (25dB) for undisturbed rest.

7. Manutenzione

Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata del purificatore d'aria.

7.1 Pulizia del prefiltro

The pre-filter is designed to capture large particles like pet hair and dust. It can be easily cleaned to maintain efficiency.

1. Spegni: Scollegare il purificatore d'aria dalla presa di corrente.
2. Apri la copertina: Aprire il coperchio del vano filtro.
3. Remove Pre-filter: Rimuovere con cautela il prefiltro.
4. Pulito: Use the provided cleaning brush to brush away accumulated hair and dust from the pre-filter. The pre-filter is also washable; rinse it under running water if necessary. Ensure it is completely dry before reinstallation.
5. Reinstalla: Place the clean pre-filter back into the compartment and close the cover securely.

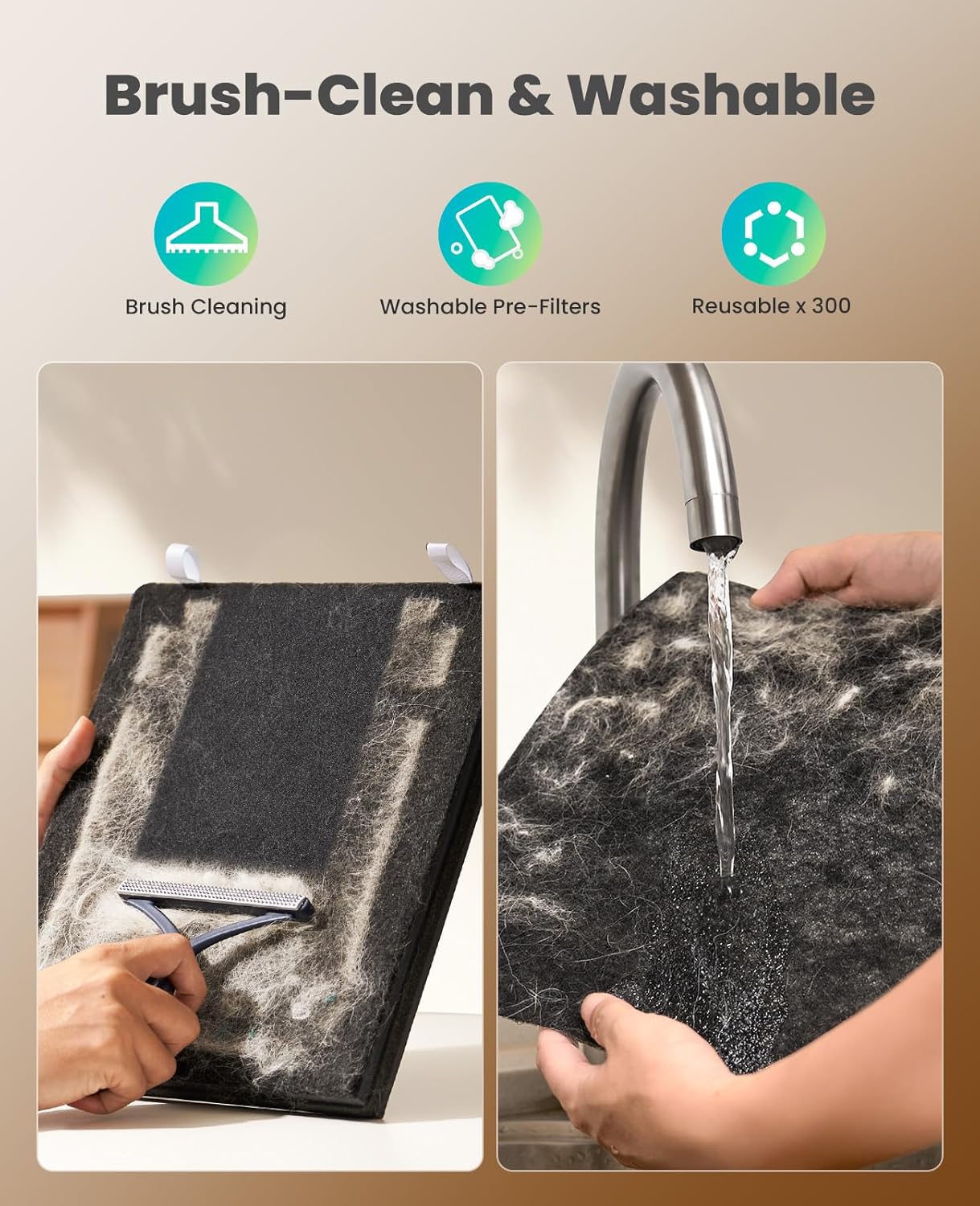

Figura 7.1: Illustration of the pre-filter cleaning process. The image on the left shows using a brush to remove pet hair and dust, while the image on the right demonstrates rinsing the washable pre-filter under water. Ensure the filter is dry before reinstallation.

7.2 Sostituzione del filtro HEPA e del filtro a carbone attivo

The HEPA and Activated Carbon filters are not washable and must be replaced periodically. The filter life indicator on the control panel will alert you when replacement is needed. Filter replacement frequency depends on usage and air quality.

1. Spegni: Scollegare il purificatore d'aria.
2. Apri la copertina: Aprire il vano filtro.
3. Rimuovi il vecchio filtro: Carefully remove the used HEPA and Activated Carbon filter assembly.
4. Installa nuovo filtro: Insert a new oneisall replacement filter, ensuring it is correctly oriented.
5. Chiudi copertina: Chiudere saldamente il vano filtro.
6. Reimposta indicatore durata filtro: After replacing the filter, press and hold the Filter Reset button (if available, or refer to the control panel diagram) for 3-5 seconds to reset the filter life indicator.

Figura 7.2: A visual comparison between a used oneisall filter (left) and a new filter (right), demonstrating the significant amount of pet fur and particles captured by the filtration system over time. This highlights the need for regular filter maintenance and replacement.

Figura 7.3: The oneisall PP02 Pet Air Purifier positioned near a cat and its litter box, illustrating its effectiveness in removing pet odors. The unit features a double activated carbon filter for enhanced odor absorption.

8. Risoluzione Dei Problemi

9. Specifiche

10. Garanzia e supporto

For warranty information or technical support, please contact oneisall customer service. Refer to the product packaging or the official oneisall websito per i contatti.

Websito: oneisall Official Store
